Howo 420 Engine
Experience unmatched strength and dependability with SINOTRUK Howo 420 Engine, designed to deliver top performance and durability for Nigeria’s demanding road conditions and challenging industrial operations.

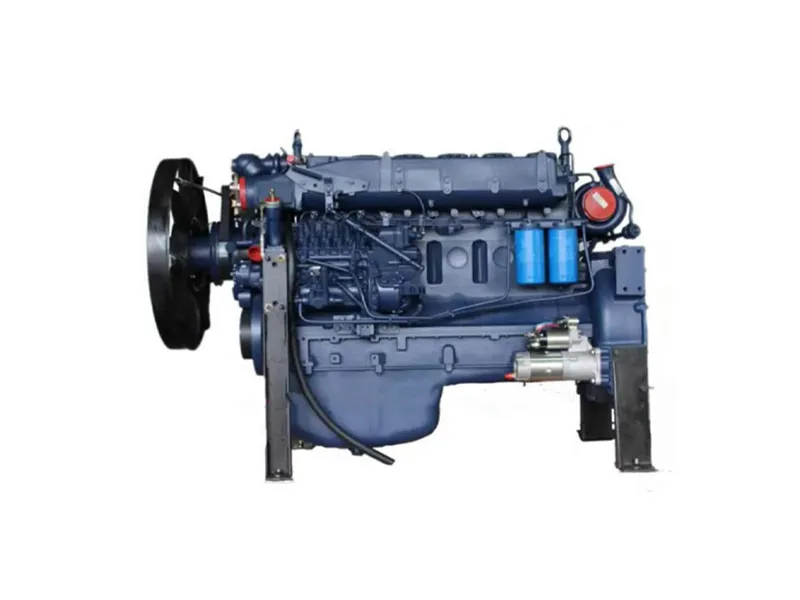

Introducing the howo 420 engine
The Howo 420 Engine is a legend across Nigeria – from the busy ports of Lagos to the mining belts of Jos. This 11.6‑liter inline‑six powerplant has powered countless trucks, dumpers, and mixers for over a decade. Its robust design, based on the trusted D12 platform, delivers 420 horsepower at 2000 rpm and a massive 1820 Nm of torque available from just 1100 rpm, making it ideal for heavy haulage and off‑road applications.
Two main versions exist: the D12.42‑20 with a mechanical injection pump (Euro II) and the D12.42‑30 featuring high‑pressure common rail and four‑valve technology (Euro III). Both share the same core strength, durability, and ease of maintenance that Nigerian mechanics know and trust. When paired with HW19710 or HW19712 transmissions, the howo 420 engine delivers smooth power and excellent fuel economy.
Whether you’re hauling 40 tons of goods on the Lagos‑Ibadan expressway or climbing steep ramps in a quarry, the howo 420 engine provides the reliability you need. And with our genuine parts and expert support, keeping it running at peak performance is straightforward.
Inquire About howo 420 engineCore Advantages of the howo 420 engine
Proven Torque & Power
With 420 hp and 1820 Nm from 1100 rpm, the howo 420 engine pulls heavy loads effortlessly. The wide torque band reduces gear changes, improving fuel economy and driver comfort.
Two Fuel System Options
Choose the mechanical D12.42‑20 for simplicity and ease of repair, or the common‑rail D12.42‑30 for cleaner emissions and smoother running. Both are built to last.
Easy Maintenance
The howo 420 engine is designed with Nigerian mechanics in mind. Parts are widely available, and service points are accessible. Major overhauls are straightforward and cost‑effective.
Built for Nigerian Conditions
From Harmattan dust to tropical humidity, the howo 420 engine withstands extreme environments. Heavy‑duty cooling, robust filtration, and corrosion‑resistant materials ensure long life.
Technical Specifications: howo 420 engine
| Parameter | Specification |
|---|---|
| Engine Type | 6‑cylinder inline, water‑cooled, 4‑stroke direct injection, turbocharged intercooled |
| Bore × Stroke | 126 mm × 155 mm |
| Displacement | 11.596 L |
| Rated Power | 420 hp (309 kW) @ 2000 rpm |
| Max Torque | 1820 N·m @ 1100–1400 rpm (‑20) / 1100–1500 rpm (‑30 CR) |

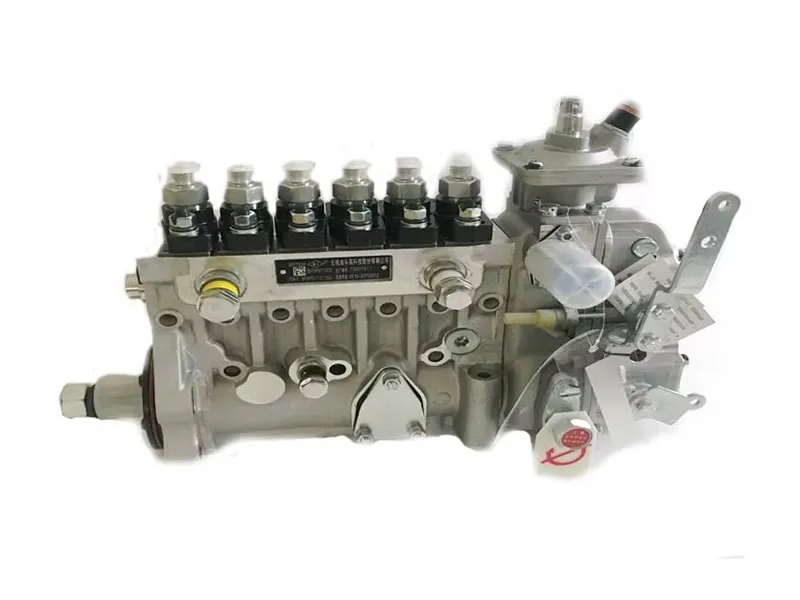

| Fuel System | D12.42‑20: Mechanical pump D12.42‑30: High‑pressure common rail + 4 valves |
| Emission Standard | Euro II (‑20) / Euro III (‑30) |
| Matched Transmissions | HW19710 (10F+2R), HW19712 (12F+2R) manual gearboxes |
Both versions share the same block, crank, and cooling system – parts are widely interchangeable.
Hot Selling Components for howo 420 engine

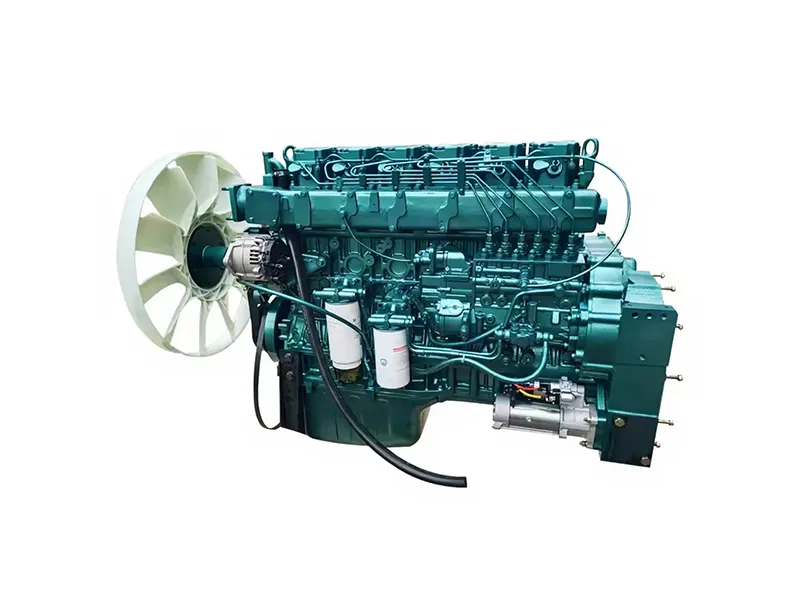

Long Block Assembly
Complete howo 420 engine short block with crank, pistons, and liners. Ready for rebuild.
Inquire

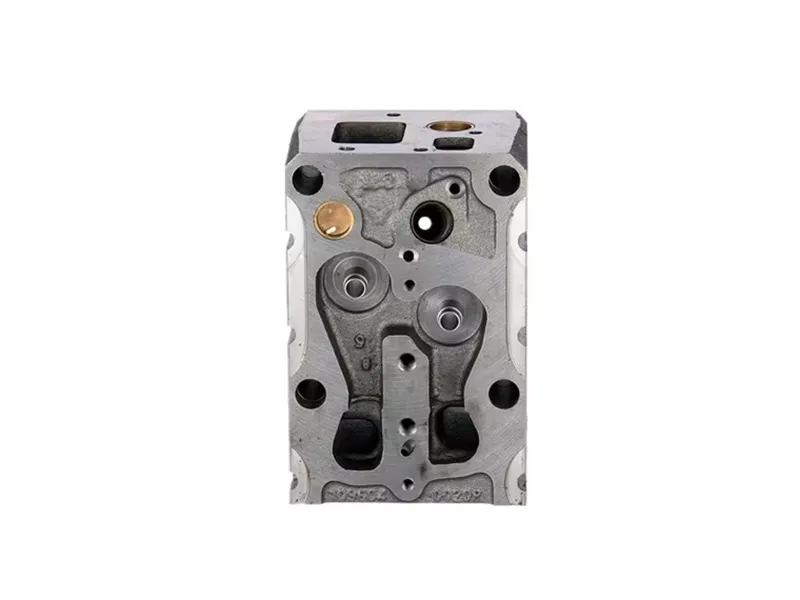

Cylinder Head (4‑valve)
For D12.42‑30 common rail engine. Complete with valves, springs, and injector sleeves.
Inquire

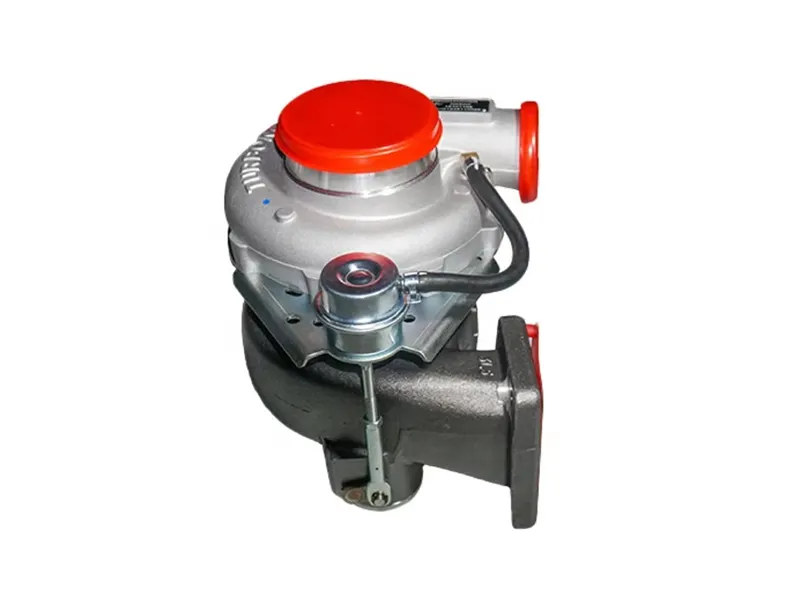

Turbocharger Assembly
High‑flow turbo for howo 420 engine, wastegate controlled, boosts power and response.
InquirePrimary Applications & Compatible Models
The howo 420 engine is the beating heart of Nigeria’s most popular heavy trucks.
Why Choose Us for Your howo 420 engine Needs?
Genuine OEM Parts
All components for the howo 420 engine are sourced directly from Sinotruk, ensuring perfect fit and long life.
Nationwide Delivery
We stock howo 420 engine parts in Lagos, Kano, and Port Harcourt. Fast shipping to any location.
Expert Technical Support
Our team knows the howo 420 engine inside out. We help you select the right version and troubleshoot issues.
Warranty & Aftercare
Every howo 420 engine component carries a 12‑month warranty. We stand behind our products.
Common howo 420 engine Issues & Solutions
With proper care, the howo 420 engine is extremely reliable. Here’s how to address typical problems.
Hard Starting (Cold)
Possible Causes: Glow plug failure (common rail), low compression, or fuel system air.
Solution: Check glow plugs, test compression, prime fuel system. Use winter‑grade fuel in cold northern nights.
Loss of Power / Black Smoke
Possible Causes: Clogged air filter, faulty injectors, turbo boost leak.
Solution: Replace air filter, test injectors, inspect intercooler hoses. For D12.42‑30, check fuel pressure.
Overheating
Possible Causes: Failed water pump, clogged radiator, faulty thermostat.
Solution: Replace water pump (common wear item), flush cooling system, test thermostat. In dusty areas, clean radiator fins weekly.
Oil Leaks
Possible Causes: Worn rear main seal, valve cover gasket, or turbo oil lines.
Solution: Replace seals with OEM parts. The howo 420 engine uses common gaskets available nationwide.
Frequently Asked Questions about howo 420 engine
Q1: What is the difference between D12.42‑20 and D12.42‑30?
The D12.42‑20 uses a mechanical inline injection pump and is Euro II. The D12.42‑30 has high‑pressure common rail, four valves per cylinder, and meets Euro III. Both share the same block and bottom end.
Q2: Which transmission is recommended with the howo 420 engine?
Sinotruk HW19710 (10‑speed) or HW19712 (12‑speed) manual gearboxes are the standard match. They are robust, parts are common, and they handle the torque easily.
Q3: What is the typical fuel consumption of the howo 420 engine?
Under loaded highway conditions, expect 30‑35 L/100km. In heavy off‑road use, it may increase to 40‑45 L/100km. Proper maintenance keeps it efficient.
Q4: How often should I change oil in a howo 420 engine?
Every 15,000 km or 250 hours using API CI‑4 / CH‑4 grade oil. In severe dusty conditions, reduce to 10,000 km.
Q5: Can I convert a D12.42‑20 to common rail?
Technically possible but not cost‑effective. It requires different cylinder head, injection system, and ECU. It’s better to source a complete D12.42‑30 engine.
What Nigerian Operators Say About howo 420 engine
I’ve run a howo 420 engine in my dump truck for five years. It’s never let me down – just regular oil changes and a water pump at 300,000 km. Genuine parts keep it going.
Our fleet of 10 HOWO tractors all use the howo 420 engine. Maintenance is simple, and our mechanics know them well. The common rail version is quieter and more fuel‑efficient.
I bought a rebuilt howo 420 engine from these guys – it came with a warranty and has performed perfectly for 18 months. Excellent support and fast delivery to Port Harcourt.
Power Your Success with the howo 420 engine
Contact us today for genuine howo 420 engine units, parts, or expert advice. We deliver nationwide.
Request howo 420 engine Info
