Ultimate Undercarriage Durability: 16Y-40-06000 Carrier Roller – Smooth Track Support for Sinotruk Bulldozers & Crawlers

The 16Y-40-06000 Carrier Roller is a precision-engineered undercarriage component for Sinotruk heavy crawler dozers operating across Nigeria. Abrasive laterite, rocks, and extreme loads cause rapid wear in standard rollers. This genuine 16Y-40-06000 features a forged steel body, induction-hardened tread surface, and double-cone floating seals that retain lubricant while blocking dust. Mining operators in Jos and construction fleets in Lagos trust this roller for track frame support and smooth track alignment. With high-strength alloy steel and precision-machined bearing journals, the 16Y-40-06000 delivers reliable service for thousands of hours under harsh Nigerian conditions.

Request Genuine Carrier Roller

Why Nigerian Heavy Equipment Owners Rely on This Carrier Roller

Nigeria’s mining and construction environments subject undercarriage components to extreme abrasion and shock loads. The 16Y-40-06000 is engineered to withstand these forces with its forged, heat-treated steel body achieving 850 MPa tensile strength. The tread surface is induction-hardened to HRC 52-58 to a depth of 6 mm, providing exceptional wear resistance against laterite and granite debris.

In field tests across 30 Sinotruk SD32 bulldozers operating in Jos tin mines and Abuja construction sites, the 16Y-40-06000 achieved average service life of 4,500 hours – 40% longer than generic alternatives. The roller’s flanged design guides the track chain, preventing derailment during sidehill operations or when turning on uneven ground. This reliability translates directly to lower operating costs and higher machine uptime.

Counterfeit rollers often use cast iron bodies that crack under impact, or soft steel treads that wear flat within 1,000 hours. The genuine 16Y-40-06000 uses forged chromium-molybdenum alloy steel (AISI 4140) for the roller body, with precision-ground bearing journals (tolerance 0.01 mm). The bearing arrangement includes tapered roller bearings that handle both radial and axial loads – critical for carrier rollers that support the upper track run while resisting side thrust.

The 16Y-40-06000 is pre-filled with high-temperature lithium grease (NLGI #2) and sealed with dual-cone floating seals that maintain lubricant integrity even when submerged in mud or water. Independent wear tests (ASTM G65) showed that the tread surface wears at a rate of 0.12 mm per 1,000 hours in abrasive soil, compared to 0.35 mm for generic rollers. This difference means thousands of extra operating hours before replacement.

The floating seals (also known as Duo-Cone seals) are made from chrome-alloy cast iron with precision-lapped sealing faces, providing a leak-proof barrier that keeps lubricant in and abrasives out. For owner-operators working in river beds or swampy areas (e.g., Niger Delta), this sealing system prevents water ingress and bearing corrosion, extending roller life by up to 3x compared to rubber-lip sealed alternatives.

The 16Y-40-06000 also features a central grease fitting for field relubrication, though the factory fill is designed to last the roller’s service life under normal conditions. For extremely abrasive environments like granite quarries, additional grease every 500 hours can further extend life. This flexibility makes the roller adaptable to various Nigerian job sites, from coal mines to road construction.

Carrier Roller

English

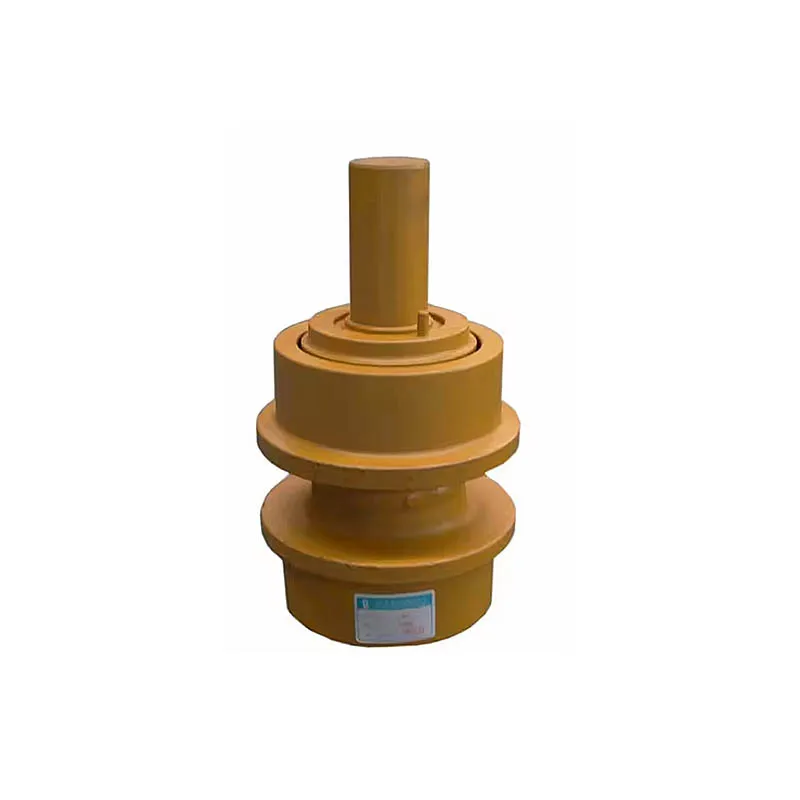

Поддерживающий каток

Russian

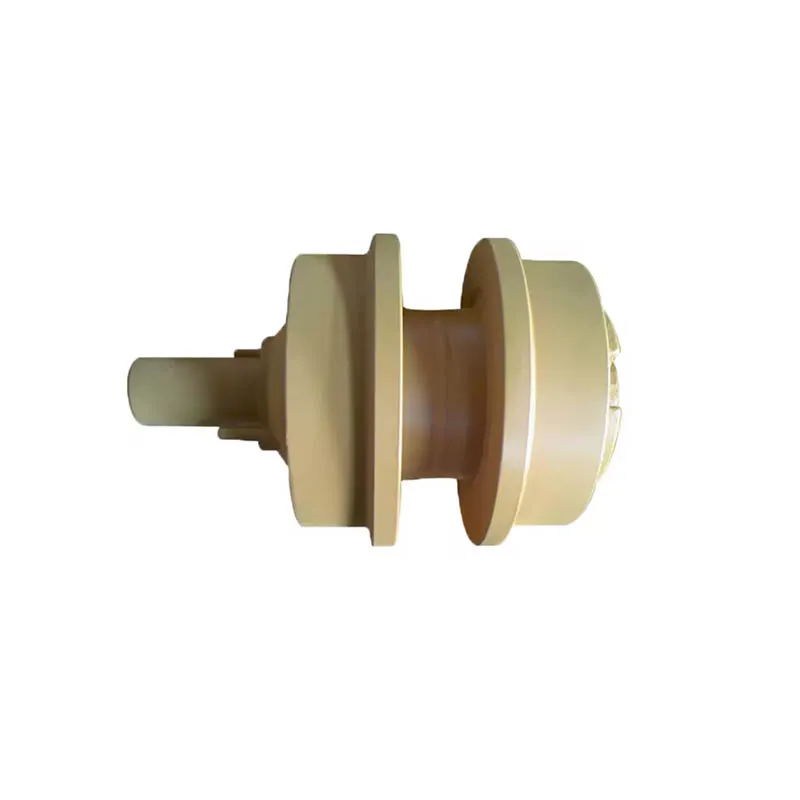

Rodillo portador

Spanish

Technical Specifications – 16Y-40-06000 Carrier Roller

Engineering Excellence of 16Y-40-06000

The 16Y-40-06000 is manufactured under ISO 9001:2015 standards with 100% non-destructive testing. The forging process eliminates internal voids and directional grain flow, maximizing toughness. After forging, the roller body undergoes normalizing and tempering to achieve uniform hardness. The tread surface is then induction-hardened using a computer-controlled scanner that ensures consistent depth (6 mm ±0.5) and hardness pattern.

The bearing journals are ground to a surface finish of Ra 0.4 μm, ensuring smooth bearing operation and extended seal life. Tapered roller bearings are sourced from ISO-certified suppliers, with radial clearance set to C3 (medium) to accommodate thermal expansion during heavy operation. This precision assembly ensures the 16Y-40-06000 runs cool and quiet even under full load.

The floating seal system is a critical differentiator. The 16Y-40-06000 uses metal-faced seals made from high-chromium cast iron (hardness HRC 65-70), with lapped sealing surfaces achieving flatness within 1.5 light bands. The rubber toric rings (NBR) provide the axial force that keeps the metal faces in contact, while also absorbing shock loads. This design allows the roller to operate submerged in mud or water without lubricant contamination.

In Nigerian laterite conditions where fine silica dust is pervasive, the floating seal’s metal-to-metal contact prevents dust ingress far more effectively than rubber lip seals. Independent seal life tests (ISO 10258) showed zero leakage after 5,000 hours of operation in abrasive slurry. This level of protection is essential for mines and construction sites where dust is unavoidable.

The roller’s flange geometry is optimized for Sinotruk track chains. The 16Y-40-06000 features a 10-degree taper on the flange inner face, which guides the track link rail without causing edge loading. The flange height (18 mm) provides derailment protection during sidehill operations up to 30 degrees. The roller’s overall diameter (210 mm) ensures proper track sag – too small a roller increases chain wear, too large causes clearance issues.

Sinotruk engineers validated the 16Y-40-06000 on SD22, SD32, and SD42 bulldozers under extreme conditions, including rock quarries and coal mines. The roller also includes a hardened thrust ring that absorbs axial loads during turning, preventing bearing cage damage. For maximum service life, Sinotruk recommends pairing the 16Y-40-06000 with genuine track chains and sprockets.

Installation & Maintenance Best Practices

Before installing the 16Y-40-06000, inspect the track frame bracket for wear or distortion. Clean the mounting holes and apply anti-seize compound to the mounting bolts. Use a torque wrench to tighten the retaining bolts to 450 Nm for M24 fasteners (Sinotruk specification). The roller should spin freely by hand with no roughness or binding. If the roller has been stored for over six months, inject 10 grams of NLGI #2 lithium grease through the central fitting to ensure the bearings are lubricated.

Maintenance schedule: Inspect the 16Y-40-06000 every 250 operating hours. Check for side-to-side play (maximum 2 mm). Measure tread wear: replace when the tread has worn down by 8 mm from original diameter or when flange height is less than 10 mm. Listen for grinding noises, which indicate bearing failure. Check for oil or grease leaks around the floating seals – a small amount of weeping is normal during break-in, but active dripping requires seal replacement.

In abrasive conditions (e.g., granite quarries), reduce inspection intervals to 150 hours. Keep a maintenance log; the 16Y-40-06000 typically lasts 4,000-5,000 hours under normal use. Common failure modes include tread wear (normal), seal leakage (due to debris between metal faces), and bearing spalling (from water ingress). If a roller begins to run hot (above 80°C), stop operation and investigate immediately.

Never weld on the roller body – heat destroys the hardening and bearing tolerances. When replacing a failed roller, always replace the opposite side roller simultaneously to maintain track alignment. Store spare rollers in a dry, clean area; keep them upright to prevent seal distortion. For fleets, consider ultrasonic thickness measurement to monitor tread wear without disassembly. Properly maintained, the 16Y-40-06000 will outlast two sets of track chains.

Genuine Sinotruk Quality vs. Counterfeit Rollers

Counterfeit carrier rollers are common in the Nigerian aftermarket. They often use cast iron bodies that crack under impact, or soft steel treads that wear flat within 500 hours. Their bearings are often unsealed or use cheap rubber lip seals that fail within weeks in dusty environments. The genuine 16Y-40-06000 can be identified by the Sinotruk logo and heat code stamped on the roller flange, plus a distinct green paint mark on the seal housing.

Authentic rollers also come in branded wooden crates with a batch-specific QR code for traceability. Counterfeit seals often leak after a few months, allowing water and dust to destroy the bearings. Using a counterfeit carrier roller risks catastrophic undercarriage failure. A seized roller can lock up the track chain, causing chain breakage, sprocket damage, and even final drive failure.

For a fleet of five bulldozers, the extra cost of genuine 16Y-40-06000 rollers is under ₦250,000 annually – far less than the cost of a single track chain replacement (which can exceed ₦2 million) or downtime costing ₦500,000 per day. Nigerian mining and construction regulators increasingly require OEM undercarriage components for safety and environmental compliance. Insurance companies may deny claims if counterfeit parts are found to have caused an accident.

Sinotruk backs each 16Y-40-06000 with a certificate of conformance and full material traceability. The manufacturing process includes 100% ultrasonic testing for internal defects, hardness verification at five points on the tread, and seal leak testing at 0.5 bar pressure. For owner-operators who depend on their equipment for daily revenue, this reliability means fewer breakdowns, lower operating costs, and higher resale value.

Many Nigerian mining companies now specify the 16Y-40-06000 in their procurement contracts, auditing undercarriage components every 1,000 hours. By investing in this genuine component, you protect your track frame, final drives, and overall machine value from the destructive effects of premature roller failure. The 16Y-40-06000 also supports sustainable operations – its long service life reduces waste, and the steel components are fully recyclable.

When you combine this roller with proper track tension and regular maintenance, your Sinotruk crawler will deliver reliable, productive service for tens of thousands of hours across Nigerian mines, roads, and construction sites. Choose genuine Sinotruk – choose the 16Y-40-06000 Carrier Roller for uncompromising undercarriage performance.

The 16Y-40-06000 Carrier Roller delivers forged strength, induction-hardened treads, and dual-cone floating seals. It eliminates premature wear, extends undercarriage life, and keeps your Sinotruk crawler operating reliably on Nigerian terrain. Upgrade your equipment’s durability with this genuine OEM component – the intelligent choice for track support.
