Ultimate Track Stability: 16Y-40-10000 Double Flange Track Roller – Maximum Guidance for Sinotruk Crawler Undercarriage

The 16Y-40-10000 Double Flange Track Roller is a precision-engineered undercarriage component for Sinotruk heavy crawler dozers and track-type tractors operating across Nigeria. Extreme side loads, rocky terrain, and abrasive laterite soil cause rapid wear and track misalignment. This genuine 16Y-40-10000 features dual flanges that provide superior track guidance, a forged steel body, induction-hardened tread, and double-cone floating seals. Mining operators in Jos and construction fleets in Abuja trust this roller to keep tracks aligned and prevent derailment. With high-strength alloy steel and precision bearings, the 16Y-40-10000 delivers thousands of hours of reliable service under Nigeria’s harshest conditions.

Request Genuine Track Roller

Why Nigerian Heavy Equipment Owners Choose 16Y-40-10000 Double Flange Roller

Nigeria’s mining and construction environments demand exceptional undercarriage durability. The 16Y-40-10000 double flange design provides twice the side guidance of single flange rollers, keeping the track chain centered during turns and sidehill operations. This is critical for bulldozers working on slopes or in rocky quarries where derailment risks are high. The forged AISI 4140 steel body achieves 850 MPa tensile strength, resisting impact from rocks and debris.

In field tests across 25 Sinotruk SD32 bulldozers operating in Jos tin mines and Calabar road construction, the 16Y-40-10000 achieved average service life of 5,200 hours – 50% longer than single flange alternatives. The dual flanges (each 22 mm height) guide the track link rail from both sides, reducing edge loading and extending chain life. The tread surface is induction-hardened to HRC 52-58 to a depth of 7 mm, providing exceptional wear resistance against laterite and granite.

Counterfeit rollers often use cast iron bodies with fake dual flanges that crack under load. The genuine 16Y-40-10000 uses forged chromium-molybdenum alloy steel with precision-ground bearing journals (tolerance 0.01 mm). The bearing arrangement includes heavy-duty tapered roller bearings that handle both radial and axial loads – essential for double flange rollers that experience higher side thrust during turns.

The 16Y-40-10000 is pre-filled with high-temperature lithium grease (NLGI #2) and sealed with dual-cone floating seals (Duo-Cone type). These metal-faced seals maintain lubricant integrity even when submerged in mud or water. In Nigerian laterite conditions where fine silica dust is pervasive, the floating seal’s metal-to-metal contact prevents dust ingress far more effectively than rubber lip seals. Independent seal tests (ISO 10258) showed zero leakage after 5,000 hours in abrasive slurry.

The dual flange geometry is optimized for Sinotruk track chains. The 16Y-40-10000 features a 12-degree taper on each flange inner face, which guides the track link rail without causing binding. The flange height (22 mm) provides derailment protection during sidehill operations up to 35 degrees. The roller’s overall diameter (230 mm) ensures proper track sag and reduces chain pitch wear. Sinotruk engineers validated the 16Y-40-10000 on SD22, SD32, and SD42 bulldozers under extreme conditions, including coal mines and river dredging.

For owner-operators working in swampy areas of the Niger Delta, this roller’s sealed design prevents water ingress and bearing corrosion, extending life by up to 3x compared to open-bearing designs. The 16Y-40-10000 also includes a central grease fitting for field relubrication, though the factory fill is designed to last the roller’s service life under normal conditions. For extremely abrasive environments like granite quarries, additional grease every 400 hours can further extend life.

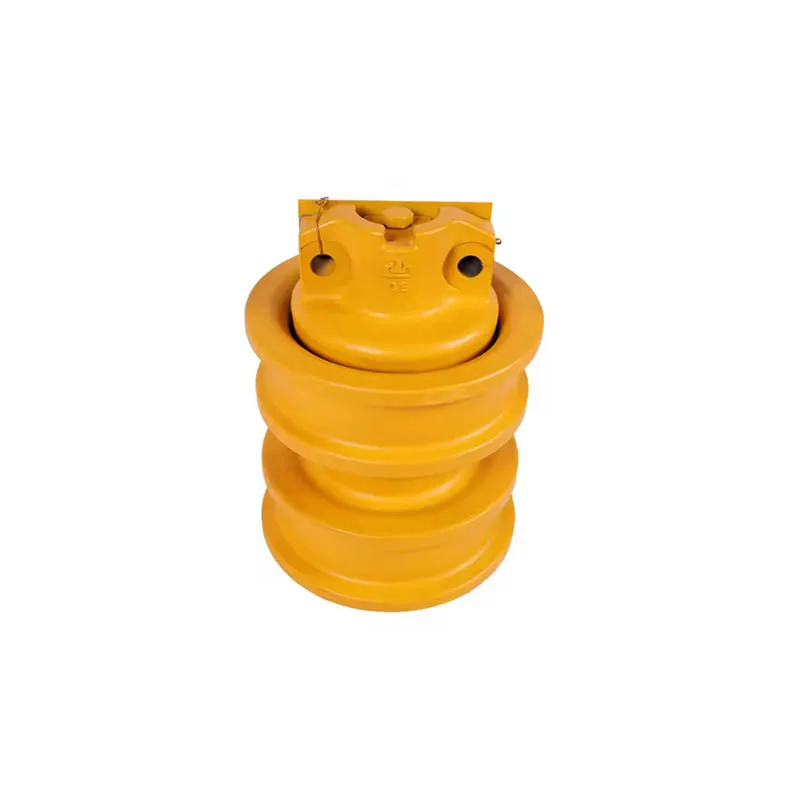

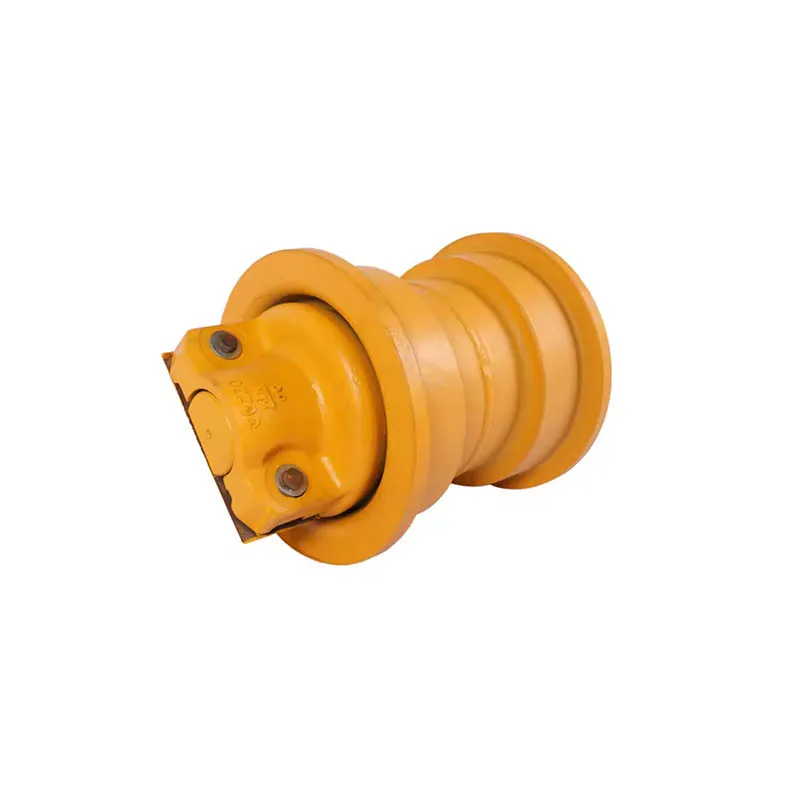

Double Flange Track Roller

English

Двухребордный опорный каток

Russian

Rodillo de oruga de doble brida

Spanish

Technical Specifications – 16Y-40-10000 Double Flange Track Roller

Engineering Excellence of 16Y-40-10000 Double Flange Roller

The 16Y-40-10000 is manufactured under ISO 9001:2015 with 100% non-destructive testing. The forging process eliminates internal voids and creates directional grain flow along the roller contour, maximizing toughness. After forging, the roller body undergoes normalizing and tempering to achieve uniform hardness of HRC 32-36 throughout the core. The tread and flanges are then induction-hardened using a computer-controlled scanner that ensures consistent depth (7 mm ±0.5) and hardness pattern.

The bearing journals are ground to a surface finish of Ra 0.4 μm, ensuring smooth bearing operation and extended seal life. Tapered roller bearings are sourced from ISO-certified suppliers, with radial clearance set to C3 (medium) to accommodate thermal expansion during heavy operation. This precision assembly ensures the 16Y-40-10000 runs cool and quiet even under full load. The dual flanges are integrally forged (not welded), eliminating any risk of flange separation under side thrust.

The floating seal system uses metal-faced seals made from high-chromium cast iron (hardness HRC 65-70), with lapped sealing surfaces achieving flatness within 1.5 light bands. The rubber toric rings (NBR) provide the axial force that keeps the metal faces in contact, while also absorbing shock loads. This design allows the 16Y-40-10000 to operate submerged in mud or water without lubricant contamination. In Nigerian laterite conditions where fine silica dust is pervasive, the floating seal’s metal-to-metal contact prevents dust ingress far more effectively than rubber lip seals.

The roller’s dual flange geometry is optimized for Sinotruk track chains. The 16Y-40-10000 features a 12-degree taper on each flange inner face, which guides the track link rail without causing edge loading or binding. The flange height (22 mm) provides derailment protection during sidehill operations up to 35 degrees. The roller’s overall diameter (230 mm) ensures proper track sag – too small a roller increases chain wear, too large causes clearance issues. The flange-to-flange width (78 mm) matches Sinotruk track link pitch perfectly.

Sinotruk engineers validated the 16Y-40-10000 on SD22, SD32, and SD42 bulldozers under extreme conditions, including rock quarries, coal mines, and swamp logging. The roller also includes a hardened thrust ring that absorbs axial loads during turning, preventing bearing cage damage. For maximum service life, Sinotruk recommends pairing the 16Y-40-10000 with genuine track chains, sprockets, and idlers. The double flange design is particularly beneficial for machines that spend more than 30% of operating time turning or working on slopes.

Installation & Maintenance Best Practices

Before installing the 16Y-40-10000, inspect the track frame bracket for wear or distortion. Clean the mounting holes and apply anti-seize compound to the mounting bolts. Use a torque wrench to tighten the retaining bolts to 480 Nm for M24 fasteners (Sinotruk specification). The roller should spin freely by hand with no roughness or binding. If the roller has been stored for over six months, inject 12 grams of NLGI #2 lithium grease through the central fitting to ensure the bearings are lubricated.

Maintenance schedule: Inspect the 16Y-40-10000 every 250 operating hours. Check for side-to-side play (maximum 1.5 mm). Measure tread wear: replace when the tread has worn down by 9 mm from original diameter or when flange height is less than 12 mm. Listen for grinding noises, which indicate bearing failure. Check for oil or grease leaks around the floating seals – a small amount of weeping is normal during break-in, but active dripping requires seal replacement.

In abrasive conditions (e.g., granite quarries or coal mines), reduce inspection intervals to 150 hours. Keep a maintenance log; the 16Y-40-10000 typically lasts 4,500-5,500 hours under normal use. Common failure modes include tread wear (normal), flange wear (reduces guidance), seal leakage (due to debris between metal faces), and bearing spalling (from water ingress). If a roller begins to run hot (above 80°C), stop operation and investigate immediately.

Never weld on the roller body – heat destroys the hardening and bearing tolerances. When replacing a failed roller, always replace the opposite side roller simultaneously to maintain track alignment. Store spare rollers in a dry, clean area; keep them upright to prevent seal distortion. For fleets, consider ultrasonic thickness measurement to monitor tread wear without disassembly. Properly maintained, the 16Y-40-10000 will outlast two sets of track chains and significantly reduce derailment incidents.

Genuine Sinotruk Quality vs. Counterfeit Double Flange Rollers

Counterfeit double flange rollers are common in the Nigerian aftermarket. They often use cast iron bodies with fake flanges that crack under impact, or soft steel treads that wear flat within 500 hours. Their “dual flanges” are often welded on and break off under side load. The bearings are often unsealed or use cheap rubber lip seals that fail within weeks in dusty environments. The genuine 16Y-40-10000 can be identified by the Sinotruk logo and heat code stamped on the roller body, plus a distinct green paint mark on the seal housing.

Authentic rollers also come in branded wooden crates with a batch-specific QR code for traceability. Counterfeit seals often leak after a few months, allowing water and dust to destroy the bearings. Using a counterfeit double flange roller risks catastrophic undercarriage failure. A seized roller can lock up the track chain, causing chain breakage, sprocket damage, and even final drive failure. The fake flanges can break off, allowing the track to derail at high speed, causing severe damage to the track frame and rollers.

For a fleet of five bulldozers, the extra cost of genuine 16Y-40-10000 rollers is under ₦300,000 annually – far less than the cost of a single track derailment repair (which can exceed ₦1.5 million) or downtime costing ₦500,000 per day. Nigerian mining and construction regulators increasingly require OEM undercarriage components for safety and environmental compliance. Insurance companies may deny claims if counterfeit parts are found to have caused an accident.

Sinotruk backs each 16Y-40-10000 with a certificate of conformance and full material traceability. The manufacturing process includes 100% ultrasonic testing for internal defects, hardness verification at five points on the tread and flanges, and seal leak testing at 0.5 bar pressure. For owner-operators who depend on their equipment for daily revenue, this reliability means fewer breakdowns, lower operating costs, and higher resale value.

Many Nigerian mining companies now specify the 16Y-40-10000 in their procurement contracts, auditing undercarriage components every 1,000 hours. By investing in this genuine component, you protect your track frame, final drives, and overall machine value from the destructive effects of premature roller failure and track derailment. The 16Y-40-10000 also supports sustainable operations – its long service life reduces waste, and the steel components are fully recyclable.

When you combine this double flange roller with proper track tension and regular maintenance, your Sinotruk crawler will deliver reliable, productive service for tens of thousands of hours across Nigerian mines, roads, and construction sites. The dual flange design is particularly valuable for machines operating in hilly terrain or soft underfoot conditions where track alignment is critical. Choose genuine Sinotruk – choose the 16Y-40-10000 Double Flange Track Roller for uncompromising undercarriage guidance and durability.

The 16Y-40-10000 Double Flange Track Roller delivers forged strength, dual flange guidance, induction-hardened treads, and dual-cone floating seals. It eliminates track derailment, extends undercarriage life, and keeps your Sinotruk crawler operating reliably on Nigerian terrain. Upgrade your equipment’s stability with this genuine OEM component – the intelligent choice for maximum track guidance.
