Precision Shifting Restored: Sinotruk Allison Internal Control Wiring Harness Assembly 29558426 – The Brain of Your Allison Transmission

Sinotruk Allison Internal Control Wiring Harness Assembly 29558426 is the central nervous system of your Allison automatic transmission. Engineered for the extreme conditions of Nigerian roads – heat, dust, vibration, and stop‑and‑go traffic – this precision harness ensures flawless communication between the Transmission Control Module (TCM) and every solenoid and sensor inside your gearbox. Trust the genuine 29558426 harness to eliminate limp mode, hard shifting, and electrical gremlins that plague aging transmissions.

The Heartbeat of Your Allison Automatic Transmission

The genuine Sinotruk Allison internal control wiring harness (OEM 29558426) is a precision‑engineered assembly that connects your TCM to every critical component inside the transmission – solenoids, sensors, and the internal mode switch. Manufactured with high‑temperature wiring, corrosion‑resistant terminals, and a rugged U‑channel design, this harness withstands the harsh oil‑bath environment and extreme vibrations of Nigerian roads. For fleets operating HOWO, Sinotruk, and STEYR trucks with Allison 3000/4000 series transmissions, the 29558426 harness ensures reliable signal transmission, preventing costly shift errors and unexpected limp‑mode engagements.

By choosing the authentic harness, you eliminate intermittent electrical faults, false diagnostic trouble codes (DTCs), and unpredictable transmission behavior. Each unit is factory‑tested for continuity, insulation resistance, and connector retention. Nigerian fleet owners report a dramatic reduction in transmission‑related downtime after replacing aging or damaged internal harnesses with the genuine 29558426 assembly. This is a direct plug‑and‑play replacement, saving workshop hours and restoring your transmission to factory performance.

Request Genuine 29558426 – Expert Support

Why the 29558426 Wiring Harness is Critical for Nigerian Fleets

Nigeria’s heavy truck fleet operates under punishing conditions: ambient temperatures exceeding 40°C, laterite dust infiltrating every crevice, constant vibration from poorly maintained roads, and stop‑and‑go traffic in Lagos that cycles transmissions hundreds of times per day. Over time, these conditions degrade original wiring harnesses, causing insulation cracking, terminal corrosion, and intermittent connectivity.

The Sinotruk Allison 29558426 harness is built to resist these environmental stressors with high‑grade materials and robust construction. When the internal harness fails, symptoms can range from hard shifting and getting stuck in first gear to full limp mode with the “Do Not Shift” light illuminated. Replacing a failing harness with the genuine 29558426 restores proper electrical communication, allowing your TCM to execute smooth, precise shifts under all conditions.

Moreover, the 29558426 harness is fully compatible with Allison 3000 and 4000 series transmissions found in Sinotruk HOWO, A7, and STEYR trucks. It directly replaces the original part without any modifications. When you combine this harness with other genuine HOWO Parts — HOWO Parts — you ensure a reliable electronic control system that protects your TCM, solenoids, and sensors. The synergy of genuine components maximizes transmission longevity, reduces diagnostic headaches, and prevents costly roadside breakdowns.

Precision Engineering & Rigorous Testing

Each 29558426 harness undergoes comprehensive quality validation: insulation resistance testing, conductor continuity verification, connector retention force checks, and thermal cycling endurance. The wiring is made from cross‑linked polyethylene (XLPE) insulation rated for continuous oil immersion and temperatures up to 150°C. The terminals are gold‑plated to resist corrosion from acidic transmission fluid.

The harness is pre‑assembled into a U‑channel that aligns perfectly with the solenoid retainer slots for SS2 and SS3, ensuring correct installation every time. Nigerian workshops appreciate the ready‑to‑install design – simply drop the harness into the valve body, connect the nine individual connectors to their designated solenoids and sensors, and seat the main pass‑through connector using the special tool J 44247. No splicing, no guesswork, no modified wiring.

Compared to aftermarket or refurbished harnesses, the genuine 29558426 offers superior material quality, exact pin‑out configuration, and consistent electrical performance. For high‑mileage fleets, this means years of trouble‑free operation. A failing internal harness is often misdiagnosed as a TCM or solenoid issue – replacing the harness first can save thousands in unnecessary parts. The 29558426 harness restores signal integrity, eliminates intermittent codes, and allows your TCM to properly control shift timing, line pressure, and torque converter clutch engagement.

Technical Specifications – Allison Internal Control Wiring Harness Assembly 29558426

Recognized Across Continents – Multilingual Identification

English: Allison Internal Control Wiring Harness Assembly 29558426

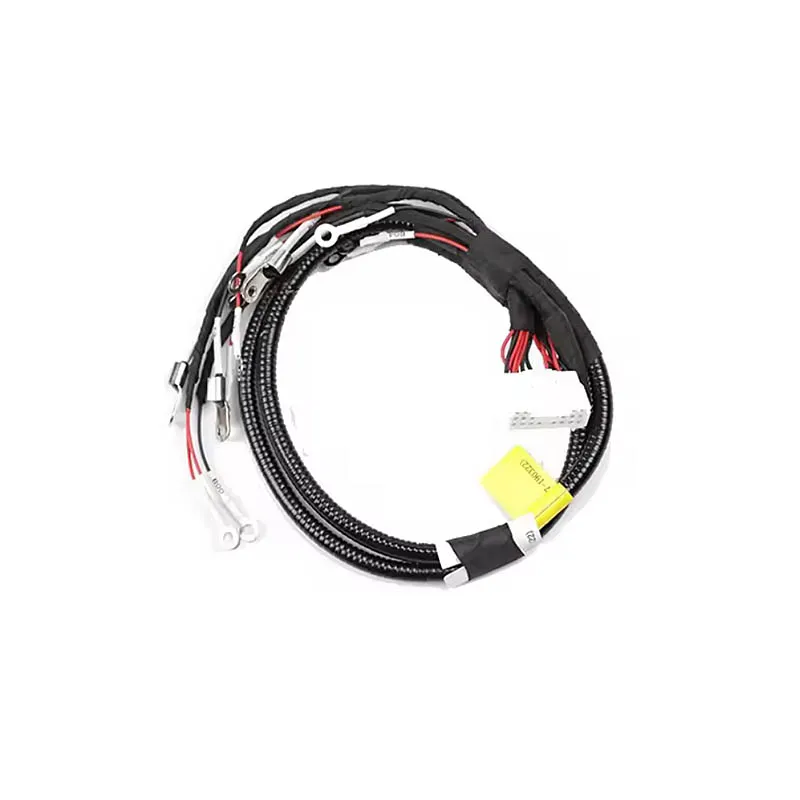

Русский: Жгут проводов внутреннего управления Allison в сборе 29558426

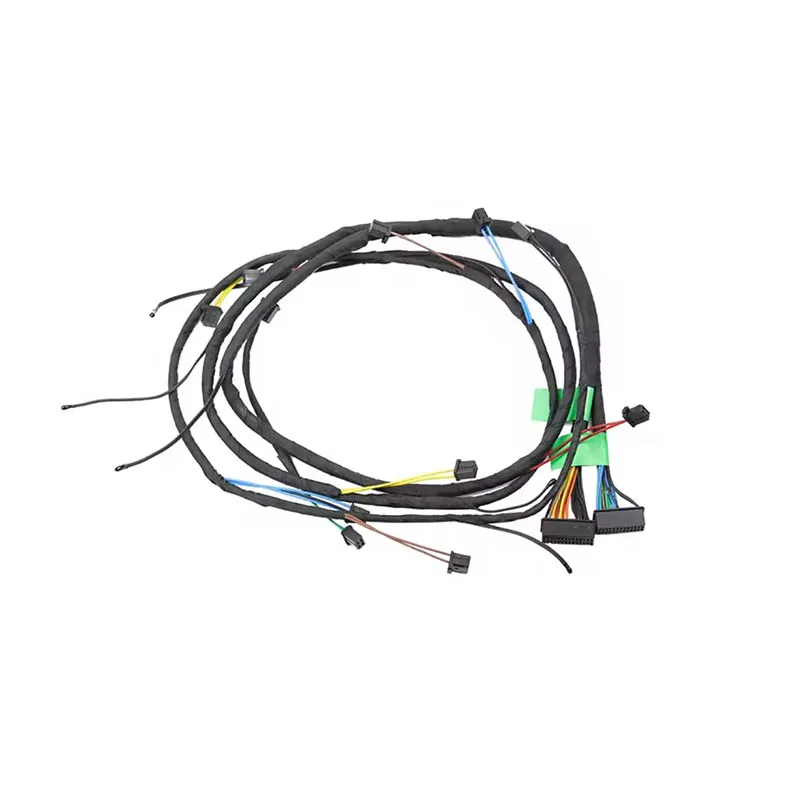

Español: Arnés de Control Interno Allison 29558426

Installation Best Practices for Nigerian Workshops

Installing the 29558426 internal wiring harness requires careful attention to detail. First, disconnect the battery and drain the transmission fluid. Remove the oil pan and internal oil filter to access the valve body. Disconnect the external harness from the main transmission connector using the appropriate tool (J 44257). The main transmission connector is actually one end of the internal harness that protrudes through the case. Remove the solenoid retainers for SS2 and SS3, then disconnect the nine internal connectors from their respective solenoids, the internal mode switch (IMS), and the transmission fluid pressure (TFP) switch. Remove the old harness.

To install the new 29558426 harness, align the tabs on the U‑channel with the solenoid retainer slots for SS3 and SS2 on the control valve assembly. Install the solenoid retainers to secure the harness. Attach the nine connectors to their correct destinations: SS1, TFP switch, MAIN MOD solenoid, IMS, TCC PCS, SS2, SS3, PCS1, and PCS2. Push the main pass‑through connector outward through the hole in the transmission case until the retaining feet engage. Use the special tool J 44247 to fully seat the connector. Reinstall the oil pan and internal filter, refill with approved Allison fluid (TES 295 or TES 668), and test the transmission through all ranges.

For severe‑duty applications, we recommend inspecting the TCM connector for corrosion and ensuring the main harness connector bolt is torqued to 3.2 N·m (28 lb‑in). A loose connector can cause intermittent power to the TCM, leading to no‑start conditions or erratic shifting. If your vehicle exhibits hard shifting, gets stuck in first gear, or triggers limp mode after electrical work, suspect the internal wiring harness first – it is often the root cause of intermittent transmission issues.

Genuine vs. Counterfeit – Protecting Your Allison Transmission

Counterfeit or substandard internal wiring harnesses are a hidden danger in the Nigerian aftermarket. They use low‑grade PVC insulation that hardens and cracks in hot transmission fluid, undersized copper conductors that cause voltage drop, and unplated terminals that corrode within months. Symptoms of a failing counterfeit harness include intermittent limp mode, false diagnostic trouble codes (such as P0880 or P0872), hard shifting, and eventually complete loss of TCM communication.

Always purchase the 29558426 harness from authorized Sinotruk distributors. Genuine parts feature XLPE insulation with a smooth, glossy appearance, gold‑plated terminals, and a clearly marked OEM part number on the main connector. Investing in the authentic harness protects your TCM, solenoids, and sensors – and prevents costly transmission overhauls.

Moreover, the genuine 29558426 comes with a 12‑month manufacturer warranty and technical support. When combined with other genuine HOWO Parts, you achieve the reliability that aftermarket components cannot match. For fleet owners across West Africa, the slightly higher upfront cost of the 29558426 pays back many times over in avoided breakdowns, reduced diagnostic time, and extended transmission life.

Compatibility & Cross-Reference Applications

The 29558426 internal control wiring harness is a direct replacement for the original Allison part and is compatible with Allison 3000 Series and 4000 Series automatic transmissions. It is specifically designed for Sinotruk HOWO, A7, and STEYR trucks equipped with Allison transmissions, including models with the Allison 3200P, 3500, and 4000 series.

Nigerian workshops have successfully installed the 29558426 harness on tipper trucks, fuel tankers, cargo carriers, and buses operating in Lagos, Kano, Abuja, and Port Harcourt. The harness connects to nine internal components: six solenoids (SS1, SS2, SS3, MAIN MOD, TCC PCS, PCS1, PCS2), the internal mode switch (IMS), and the transmission fluid pressure (TFP) switch. Always verify that your transmission has the 20‑pin main pass‑through connector – in most cases, the 29558426 fits all Allison‑equipped Sinotruk vehicles with Gen‑4 or Gen‑5 TCMs.

For high‑mileage fleets, we recommend replacing the internal harness whenever the transmission is opened for major service. Using a genuine 29558426 ensures that your TCM receives clean, reliable signals from every sensor and solenoid, preventing false codes and maintaining optimal shift quality. Our bulk supply chain in Lagos, Kano, Onitsha, and Abuja ensures fast delivery of authentic 29558426 units, minimizing downtime and keeping your fleet on the move.

In summary, the Sinotruk Allison Internal Control Wiring Harness Assembly 29558426 may be hidden inside your transmission, but its impact on shift quality, reliability, and diagnostics is enormous. Nigerian roads demand transmissions that can handle heat, dust, and constant operation, and this harness delivers the electrical integrity required for flawless Allison performance. Whether you operate a single truck or a hundred, upgrading to the genuine 29558426 reduces total cost per kilometer, eliminates frustrating intermittent codes, and keeps your fleet shifting smoothly. Don’t settle for imitations — choose the harness that West African fleet experts trust for their Allison‑equipped vehicles.

Additionally, the 29558426 harness has been proven in Nigerian operating conditions, with fleet operators reporting a dramatic reduction in limp‑mode events and hard‑shift complaints after replacing aging internal harnesses. The gold‑plated terminals resist the acidic byproducts of transmission fluid degradation, maintaining signal integrity over hundreds of thousands of kilometers. For fleet managers in Abuja, Onitsha, or Ibadan, installing the genuine harness means fewer emergency calls, lower diagnostic costs, and more predictable service intervals.

Every 29558426 unit is manufactured under strict ISO/TS 16949 standards, ensuring batch‑to‑batch consistency. The harness is tested for insulation resistance (minimum 10 MΩ), conductor continuity, and connector retention force. When you order the Sinotruk 29558426, you receive a product that has passed a 24‑hour oil‑immersion test and is ready for immediate installation. It’s the harness that Nigerian fleet owners trust for their most valuable assets — from tipper trucks hauling granite to fuel tankers navigating rural routes. Choose the genuine 29558426 and experience the Sinotruk difference in transmission reliability.

Original Sinotruk aftermarket parts — certified quality for Nigerian roads. Always specify OEM 29558426 for exact fitment and maximum Allison transmission reliability.
