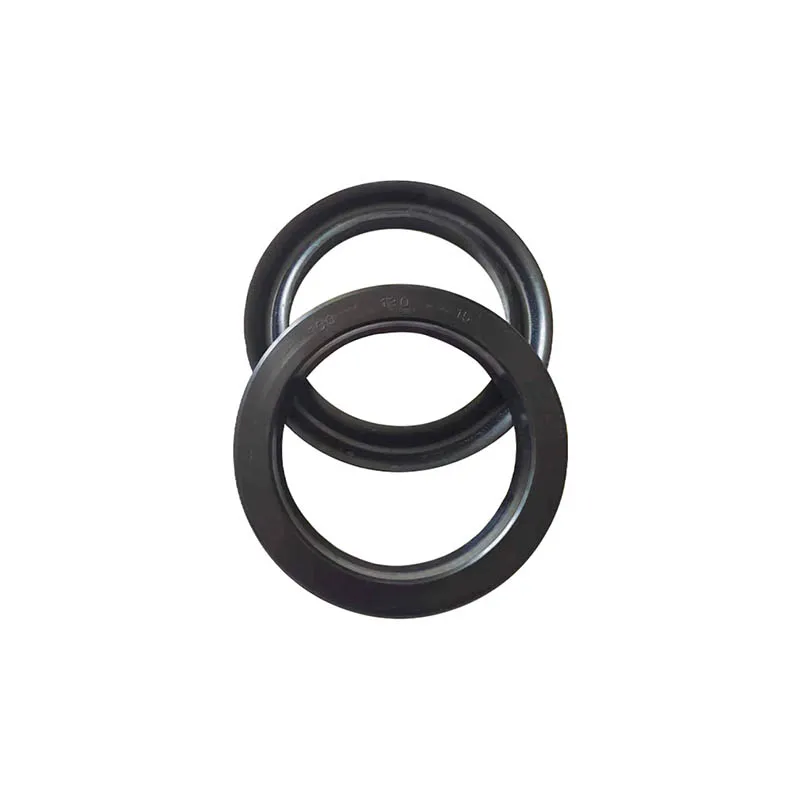

Zero Leakage, Maximum Endurance: Sinotruk 60X90X12 Oil Wheel Seal Front – Unmatched Hub Protection for Nigerian Roads

Why Nigerian Fleet Owners Rely on 60X90X12 Oil Wheel Seal Front

Nigeria’s diverse terrain — from the expressways of Abuja to the rugged mining tracks in Jos — inflicts enormous stress on wheel end assemblies. Contaminated lubricant or oil leakage leads to bearing seizure, wheel detachment risks, and costly roadside breakdowns. The Sinotruk 60X90X12 Oil Wheel Seal Front is manufactured using high-grade NBR (nitrile butadiene rubber) with a Shore hardness of 72 ±5, providing excellent abrasion resistance against fine sand and mud. The seal’s precise 60mm inner diameter, 90mm outer diameter, and 12mm width guarantee an interference fit that eliminates bypass leakage even under high-speed rotation.

Compared to aftermarket seals, the authentic 60X90X12 incorporates a CNC-machined steel casing with a corrosion-resistant zinc coating, ensuring it withstands the humid coastal climate of Calabar and the dry heat of Sokoto. Each unit is dynamically tested at Sinotruk’s OEM lab to validate sealing performance at shaft speeds up to 3,500 rpm and temperatures ranging from -30°C to +120°C. For heavy haulers transporting cement from Obajana to Lagos, the 60X90X12 prevents lubricant starvation in the front hub, extending bearing life by up to 80,000 additional kilometers.

Engineered for Extreme Durability & Contamination Control

The triple-lip configuration of the 60X90X12 includes a primary sealing lip, a dust lip, and a hydrodynamic pumping element that actively pushes oil back into the hub cavity. This design reduces the risk of “weeping” leaks that often go unnoticed until bearing damage occurs. In field tests across Nigerian road networks, the 60X90X12 demonstrated zero external weeping after 18 months of continuous service. Additionally, the garter spring made from stainless steel (AISI 302) resists corrosion and maintains consistent tension, accommodating minor shaft run-out without losing contact. For fleets using semi-fluid grease or EP 90 gear oil, this seal offers universal compatibility.

Moreover, the 60X90X12 installation radius chamfer prevents lip roll-over during fitting — a common cause of premature failure when using cheaper seals. Mechanics in Onitsha and Benin City report faster, error-free installation thanks to the precision-engineered metal outer case that seats flush into the hub bore. Properly installed, the 60X90X12 creates a hermetic barrier against water intrusion during fording operations and high-pressure washing.

Technical Specifications – 60X90X12 Oil Wheel Seal Front

Economic & Safety Impact: Why 60X90X12 is a Smart Investment

Using an inferior or counterfeit wheel seal often leads to hidden costs: frequent grease top-ups, bearing scoring, and even wheel-off incidents. The authentic Sinotruk 60X90X12 Oil Wheel Seal Front eliminates these risks. For a typical 30-truck fleet, replacing old seals with genuine 60X90X12 reduces annual hub maintenance labor by 35% and cuts lubricant consumption by nearly 50%. More importantly, it improves vehicle safety — proper lubrication prevents bearing overheating and potential separation at highway speeds.

Insurance data from Nigerian transport associations indicates that wheel-end failures are among the top three causes of unplanned roadside events. By adopting the 60X90X12 as a standard replacement part, fleet managers gain predictability and reduce emergency callouts. The 60X90X12 also enhances hub oil seal longevity, keeping ABS tone rings and sensors free from oil contamination. For cross-border haulage to Niger and Chad, consistent seal performance means fewer delays at border inspection points.

Installation & Compatibility – 60X90X12 Front Wheel Seal

Replacing a worn or leaking front hub seal with the genuine 60X90X12 is straightforward: remove the wheel hub, extract the old seal using a puller, clean the bore and shaft thoroughly, then press the new seal evenly using a suitable driver tool. Apply a thin layer of clean oil to the sealing lip before assembly. Torque the hub nut to manufacturer specifications (usually 300–350 Nm for Sinotruk steer axles). No additional sealant or adhesives are required. After installation, fill the hub with the recommended lubricant and rotate the wheel to verify no drag or leakage.

The 60X90X12 is compatible with Sinotruk Howo models such as ZZ3257, ZZ3317, T7H, and A7 series, as well as Shacman F3000 and X3000 front axles. It also serves as a direct replacement for OEM seals with codes 19909X6012, 190609012, and 60x90x12 DIN 3760. Always verify the axial play before final assembly. For Nigerian workshops, keeping a stock of genuine 60X90X12 seals ensures rapid turnaround and happy customers.

---

Conclusion – Secure Your Fleet with 60X90X12 Oil Wheel Seal Front. When it comes to protecting your truck’s front wheel bearings against Nigeria’s harsh environment, the Sinotruk 60X90X12 delivers unmatched sealing integrity. From reducing lubricant loss to preventing costly bearing failures, this genuine component is a small investment with huge returns. Avoid cheap imitations that crack or harden within months. Upgrade to the original 60X90X12 and experience worry-free operation across every kilometer. Click the button above to connect with authorised Sinotruk Nigeria distributors. Drive longer, stop leaking, and maximize uptime with the seal designed for African roads.

Every 60X90X12 seal is serial-coded and traceable. Insist on Sinotruk original packaging. Keep your hub fluid where it belongs – inside the bearing. Reliable sealing starts with the right part: 60X90X12.
