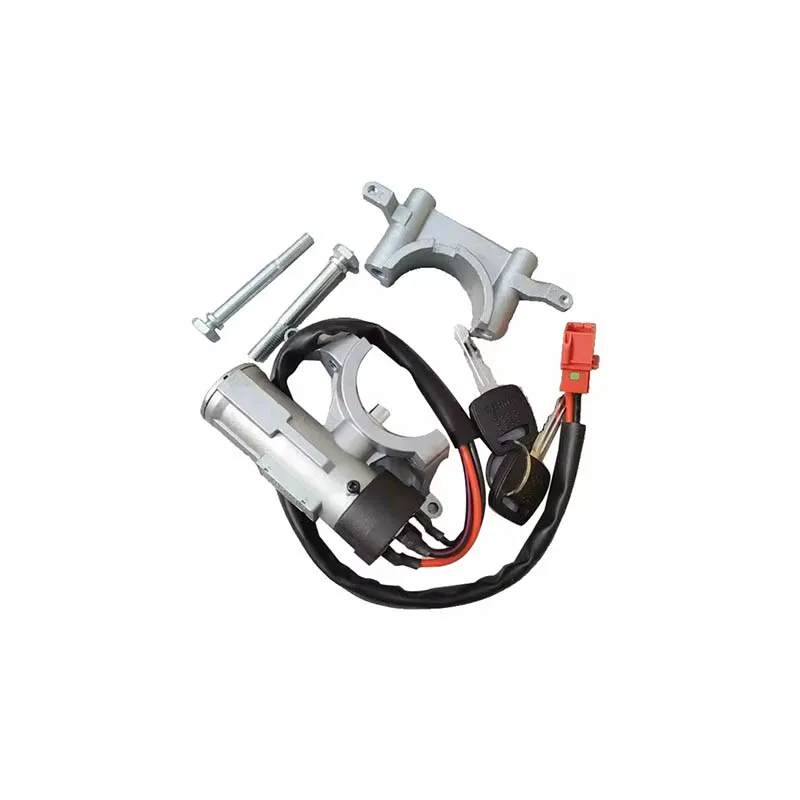

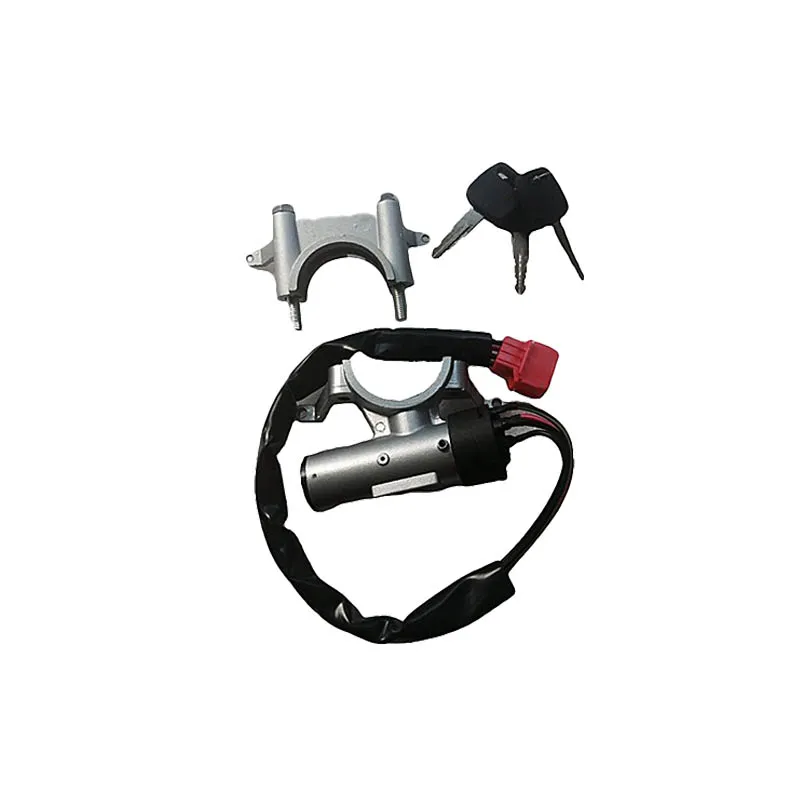

Genuine Sinotruk Key Switch 803-666-709 – Uncompromising Security and Reliable Ignition for Howo Trucks

Engineering Excellence Behind the 803-666-709 Key Switch

The 803-666-709 is not a simple key cylinder – it is a precision-engineered electromechanical device that must reliably perform hundreds of thousands of cycles over the life of the vehicle. Manufactured under Sinotruk’s strict quality standards, this key switch incorporates a high-security wafer tumbler mechanism that resists picking and wear, ensuring that the key rotates smoothly and consistently even after years of use in dusty or humid environments.

The switch’s electrical contacts are made from a silver-alloy composite that provides excellent conductivity and arc resistance, reducing voltage drop and preventing overheating during high-current draws such as starter engagement. The 803-666-709 is rated for 10A continuous at 24V, making it suitable for all standard heavy-duty starting and accessory circuits in Howo trucks.

In typical Nigerian operating conditions, where trucks encounter vibration, temperature extremes, and frequent stop-start cycles, the 803-666-709 maintains its precision fit and electrical integrity. Its die-cast zinc housing is coated with a corrosion-resistant finish, and the internal mechanism is lubricated with a high-temperature grease that remains effective from -40°C to +85°C, ensuring consistent operation in both the harmattan dry season and the humid rainy season.

Technical Specifications – Key Switch 803-666-709

Parameter	Specification
OEM Part Number	803-666-709
Product Name	Key Switch (Ignition Switch)
Brand	Sinotruk (Genuine OEM)
Housing Material	Die-cast zinc alloy
Contact Material	Silver-alloy
Contact Rating	10A @ 24V DC (continuous)
Switch Positions	OFF – ACC – ON – START (spring return to ON)
Lock Cylinder	Wafer tumbler, anti-pick
Key Type	Double-sided, 4-cut
Operating Temperature	-40°C to +85°C
Ingress Protection	IP54 (face sealed)
Mechanical Life	100,000 cycles (min.)
Mounting	Panel mount, 22 mm hole, with anti-rotation washer
Terminal Type	6.3 mm spade (quick-connect)
Compatible Models	Howo A7, T7, C7H, HW series; Sinotruk heavy-duty trucks

Why the Genuine Sinotruk 803-666-709 Outperforms Generic Ignition Switches

Generic aftermarket key switches often use low-grade brass contacts that oxidize and pit, leading to voltage drops, intermittent starting, and eventual failure. The 803-666-709, with its silver-alloy contacts and precision-machined wafer tumblers, delivers consistent electrical performance and smooth mechanical operation over an extended service life. Its die-cast housing provides superior durability compared to the plastic housings found on many non-OEM switches, which can crack or warp under high temperatures or heavy key chains.

Additionally, the 803-666-709 is designed with a built-in anti-rotation feature that prevents the switch from loosening in the dashboard panel – a common problem with generic switches that leads to unreliable operation and potential short circuits. The switch’s positive detent mechanism also reduces the risk of accidental key movement, which could otherwise cause unintended electrical disconnection during operation.

Advanced Security and Durability Features

The lock cylinder of the 803-666-709 incorporates a sophisticated wafer tumbler system that provides a high level of key duplication resistance, deterring unauthorized access. The cylinder is also lubricated with a dry-film lubricant that maintains smooth operation even when exposed to dust or sand, common in Nigeria’s interior regions. This ensures that the key can be inserted and turned effortlessly, reducing driver frustration and wear on the key itself.

Compatibility and Fitment

The 803-666-709 is a direct replacement for the original key switch in a wide range of Sinotruk and Howo models. Its 22mm panel cutout and standard 6.3mm spade terminals match existing dashboards and wiring harnesses. It is supplied with two original keys, and the lock cylinder is keyed to match the original vehicle key code if ordered with the correct code – otherwise, it comes with a new key set. Always verify the switch position configuration (OFF, ACC, ON, START) to ensure the 803-666-709 is the correct part for your application.

Explore the full range of genuine Howo Parts available for your fleet, including wiring harnesses, steering column components, and electronic control modules. The 803-666-709 key switch is a vital part of that ecosystem – and with Sinotruk’s original quality, you can be confident that every start and electrical function will operate reliably.

Installation Best Practices for the 803-666-709

Installing the 803-666-709 is a straightforward procedure. Begin by disconnecting the vehicle’s battery negative terminal to avoid any short circuits. Remove the trim panel covering the switch, then disconnect the electrical connector (or individual spade terminals) from the old switch. Unscrew the retaining nut and pull the old switch out from the front. Insert the new 803-666-709 through the panel opening, secure it with the retaining nut (torque to specification), and reconnect the terminals according to the wiring diagram (ACC, BATT, IGN, START). Reconnect the battery and test all positions – ensure the starter engages only in START and that accessories power up in ACC and ON.

Regular inspection of the 803-666-709 is recommended during service intervals. Check for any looseness in the mounting, and ensure the key rotates smoothly through all positions without sticking. If the switch becomes difficult to turn or the starter fails to engage reliably, it should be replaced immediately to avoid being stranded.

Built for Nigeria – Secure Starting in Demanding Conditions

Nigeria’s heavy-duty trucking environment presents unique challenges: high ambient temperatures, high humidity, abrasive dust, and frequent electrical system stress. The 803-666-709 is specifically engineered to thrive in these conditions. Its wide operating temperature range and sealed design ensure that it continues to function even when the cab interior reaches temperatures above 60°C, and its corrosion-resistant contacts maintain conductivity in coastal humid conditions.

Additionally, the switch’s anti-pick cylinder and robust key design reduce the risk of theft and unauthorized use, a concern for fleet operators in many parts of Nigeria. By choosing the genuine Sinotruk 803-666-709, you enhance both security and operational reliability, reducing downtime and improving driver confidence.

Secure Your Fleet with the Genuine 803-666-709 Key Switch

The 803-666-709 Key Switch is a small but crucial component that ensures every start is reliable and every electrical function is under precise control. Its superior materials, precision engineering, and exact OEM fitment make it the only choice for professional workshops and fleet managers. Every time you install a genuine Sinotruk 803-666-709, you are guaranteeing dependable starting, enhanced security, and reduced diagnostic headaches.

Don’t compromise with generic switches that may fail at the worst possible moment. Insist on the genuine 803-666-709 – the key switch trusted by experienced mechanics and fleet operators across Nigeria. With its proven track record in heavy-duty applications, this switch delivers the performance and durability you deserve.

Genuine Sinotruk 803-666-709 – Engineered for excellence. Built for Africa. Trusted by professionals.
