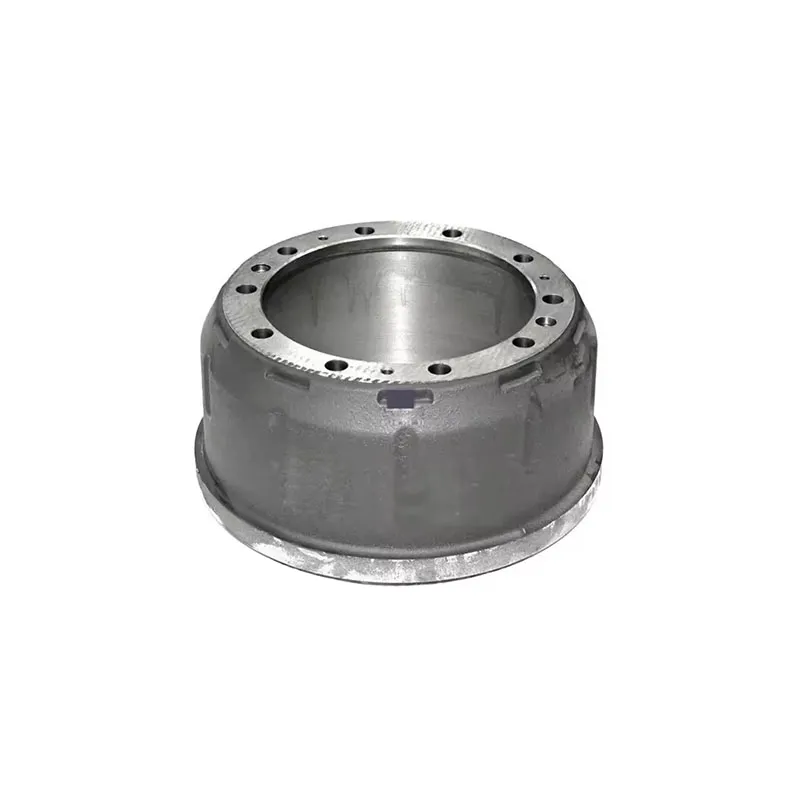

Genuine Sinotruk Front Drum 81501100232 – Unmatched Stopping Power and Durability for Howo Heavy-Duty Trucks

Engineering Excellence Behind the 81501100232 Front Drum

The 81501100232 front brake drum is not a simple cast iron cylinder – it is a precision-engineered braking component that must withstand extreme thermal and mechanical stresses over hundreds of thousands of kilometres. Manufactured from a high-carbon grey iron alloy with controlled graphite morphology, the drum offers excellent thermal conductivity, uniform wear characteristics, and outstanding resistance to heat checking and cracking. Its friction surface is machined to a fine finish (Ra ≤ 2.5 µm) to provide a consistent coefficient of friction with both organic and semi-metallic brake linings.

The drum’s ventilated design (where applicable) incorporates internal cooling vanes that promote airflow, reducing operating temperatures and minimising brake fade during repeated heavy stops. The 81501100232 also features a precision-balanced geometry that minimises vibration and judder, contributing to smoother, quieter braking and extended component life. This attention to detail ensures that your Howo truck maintains its original braking performance, even under the most punishing conditions.

In typical heavy-duty applications, the 81501100232 is used on the front axle of 6×4 and 8×4 Howo tippers, mixers, and tractors. Its robust construction and exacting tolerances ensure a perfect fit with the hub and wheel bearing assembly, reducing the risk of runout or premature wear. By specifying the genuine Sinotruk 81501100232, you ensure that your braking system operates at its peak, providing the stopping power you need when it matters most.

Technical Specifications – Front Drum 81501100232

Parameter	Specification
OEM Part Number	81501100232
Product Name	Front Brake Drum
Brand	Sinotruk (Genuine OEM)
Material	High-carbon grey cast iron (GG20/GG25)
Diameter (nominal)	420 mm
Width (friction surface)	180 mm
Max. Machining Allowance	3.0 mm (max. oversize)
Surface Finish (Ra)	≤ 2.5 µm
Hardness (HB)	180 – 220
Max Operating Temperature	600°C (peak)
Weight	Approx. 42 kg
Application	Front axle, drum brake systems
Compatible Models	Howo A7, T7, C7H, HW series; Sinotruk 6×4, 8×4 trucks

Why the Genuine Sinotruk 81501100232 Outperforms Aftermarket Drums

Aftermarket brake drums often use lower-grade iron with inconsistent alloy composition, leading to uneven wear, hot spots, and premature cracking. The 81501100232, by contrast, is produced from a carefully controlled grey iron with a pearlitic matrix that provides superior thermal conductivity and wear resistance. Its precision-machined friction surface ensures that the brake shoes mate perfectly, delivering maximum contact area and consistent braking force.

Additionally, the 81501100232 is dynamically balanced to minimise rotational vibration, reducing the risk of judder and extending the life of wheel bearings and suspension components. Generic drums often lack this level of precision, resulting in an uncomfortable pedal feel and accelerated wear. By choosing the genuine Sinotruk 81501100232, you invest in safer, smoother braking and lower overall operating costs.

Advanced Metallurgy for Maximum Durability

The cast iron used in the 81501100232 is specially formulated to resist thermal fatigue, a common failure mode in heavy-duty brake drums. Its graphite flakes are uniformly distributed, providing a natural lubricating effect that reduces wear on both the drum and the brake linings. This results in extended service intervals and fewer unscheduled replacements – a critical advantage for Nigerian fleets operating in harsh conditions.

Compatibility and Fitment

The 81501100232 is a direct replacement for the original front brake drum in a wide range of Sinotruk and Howo models, including the Howo A7, T7, C7H, and HW series. Its 420 mm diameter and 180 mm width conform to the original specifications, ensuring a perfect fit with the hub and wheel bearings. Always verify the drum dimensions and the wheel stud pattern before installation, and refer to your vehicle’s service manual for the correct torque settings.

Explore the complete range of genuine Howo Parts available for your fleet, including brake drums, shoes, and entire axle assemblies. The 81501100232 front drum is a vital element of that ecosystem – and with Sinotruk’s original quality, you can be confident that your braking system will deliver reliable, consistent performance.

Installation and Maintenance Best Practices

Correct installation of the 81501100232 is crucial to achieving optimal braking performance and service life. Begin by safely raising the vehicle and removing the front wheel and hub assembly. Clean the spindle and hub mating surfaces, and inspect the wheel bearings for wear. Install the new drum onto the hub, ensuring that it seats fully and that the retaining screws are torqued to specification. Adjust the brake shoes to the correct clearance, and bleed the hydraulic system if required. After installation, perform a road test to bed in the new drum and shoes, gradually increasing brake pressure to avoid thermal shock.

Regular inspection of the 81501100232 should be performed at every brake service interval. Check the friction surface for scoring, heat cracks, or excessive wear. Measure the drum diameter and compare it to the maximum allowable oversize – if the drum exceeds this limit, it must be replaced with a new Sinotruk 81501100232. By following these guidelines, you can ensure consistent braking performance and extend the life of your brake system components.

Built for Nigeria – Uncompromising Braking Performance in Extreme Conditions

Nigeria’s heavy-duty trucking environment presents a unique set of challenges: high ambient temperatures, long downhill grades, frequent stop-start traffic, and heavy payloads that place immense strain on the braking system. The 81501100232 is engineered to thrive in these conditions. Its high thermal capacity and superior heat dissipation ensure that fade is minimised, even during extended braking events. The drum’s robust construction also resists warping and cracking, a common issue with inferior components operating in Nigeria’s heat.

Furthermore, the 81501100232 is compatible with the full range of brake linings commonly used in the local market, including both organic and semi-metallic materials. By choosing the genuine Sinotruk 81501100232, fleet operators can reduce brake-related downtime, improve safety, and lower the total cost of ownership – a critical advantage in Nigeria’s competitive transport sector.

Stop with Confidence – Choose the Genuine 81501100232 Front Drum

The 81501100232 Front Brake Drum is a critical safety component that ensures your Howo or Sinotruk truck stops reliably in every situation. Its superior materials, precision engineering, and exact OEM fitment make it the definitive choice for professional workshops and fleet managers. Every time you install a genuine Sinotruk 81501100232, you are investing in driver safety, vehicle reliability, and long-term cost savings.

Never compromise on brake components. Insist on the genuine 81501100232 – the front drum trusted by experienced mechanics and fleet operators across Nigeria. With its proven performance in the toughest environments, this drum delivers the stopping power and peace of mind you deserve.

Genuine Sinotruk 81501100232 – Engineered for excellence. Built for Africa. Trusted by professionals.
