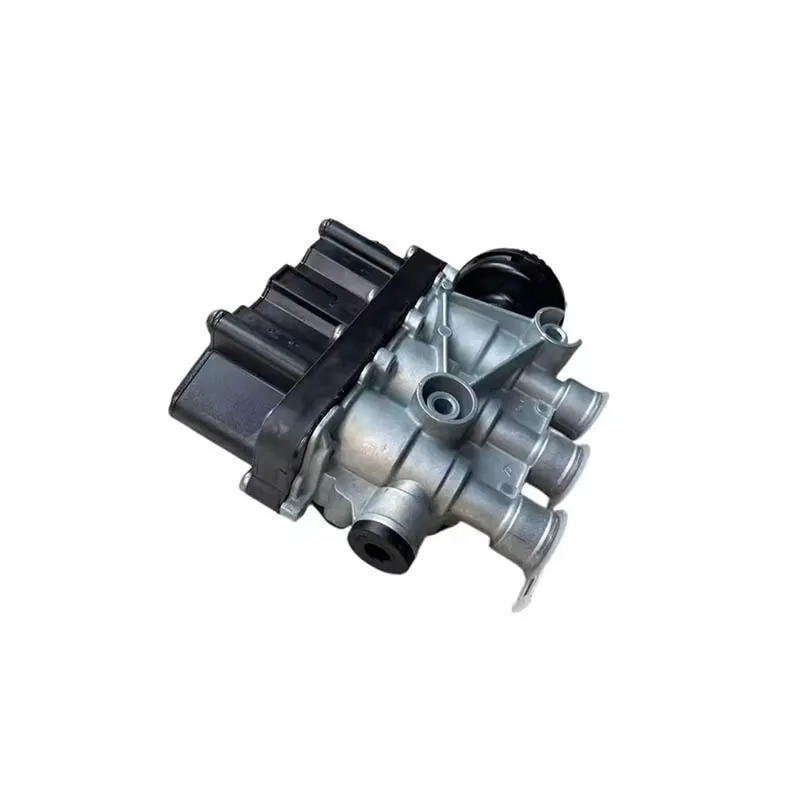

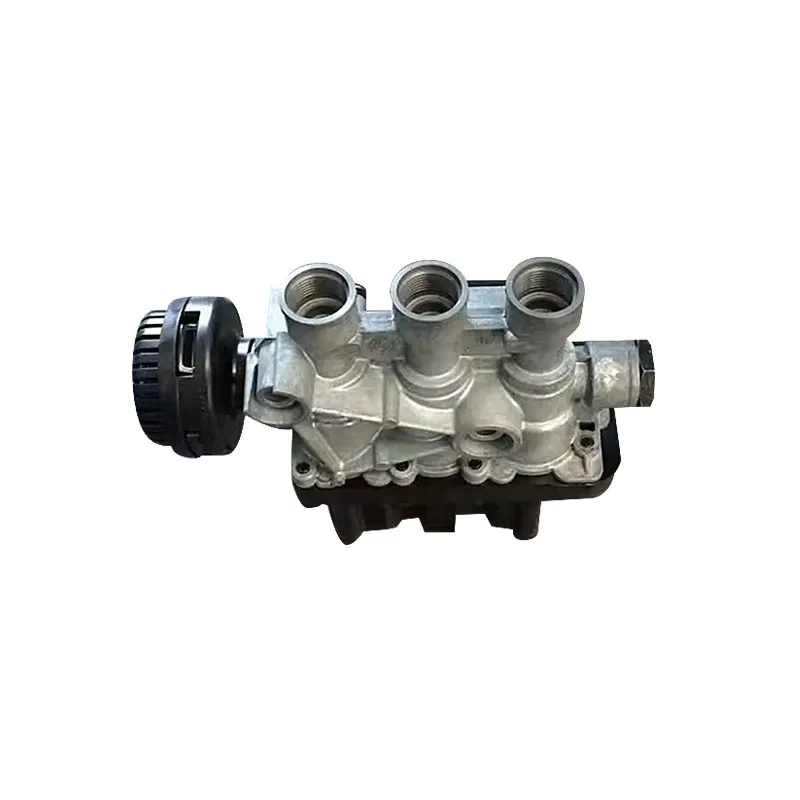

Genuine Sinotruk Solenoid Valve (Trans) 860-133-242 – Unyielding Hydraulic Precision & Unmatched Shift Control for Howo Heavy-Duty Trucks

Engineering Excellence Behind the 860-133-242 Solenoid Valve

The 860-133-242 solenoid valve is the result of extensive electromagnetic, fluid dynamics, and thermal engineering. Its coil is wound with high‑purity copper wire, precisely configured to achieve the required inductance and resistance values that ensure correct solenoid force and response time. The armature and plunger are manufactured from a low‑carbon magnetic steel with a precision‑ground finish, ensuring consistent stroke and minimal hysteresis.

The valve body is machined from high‑strength aluminum alloy and anodized for corrosion resistance, while the internal spool is hardened and ground to provide a leak‑tight seal and smooth sliding action. The solenoid’s sealing system uses Viton O‑rings that resist the aggressive additives found in modern ATF, preventing internal and external leaks that can lead to pressure loss and erratic shifting.

In typical Howo truck applications, the 860-133-242 is installed directly into the transmission valve body, where it converts electrical signals from the transmission control unit (TCU) into hydraulic pressure modulation for clutch engagement, shift timing, and line pressure regulation. Its compact, drop‑in design makes replacement quick and straightforward, minimising vehicle downtime. Regular inspection of the solenoid’s resistance and visual condition, and prompt replacement with a genuine Sinotruk 860-133-242 when faults are detected, is essential for maintaining optimal transmission performance and preventing costly valve body damage.

Technical Specifications – Solenoid Valve (Trans) 860-133-242

Parameter	Specification
OEM Part Number	860-133-242
Product Name	Solenoid Valve (Trans) – Shift solenoid
Brand	Sinotruk (Genuine OEM)
Nominal Voltage	24 V DC
Resistance (at 20°C)	14.5 Ω ± 5%
Inductance	≈ 85 mH
Actuation Force	≥ 50 N (at rated voltage)
Max Operating Pressure	20 bar (2.0 MPa)
Insulation Class	H (180°C)
Housing Material	Anodized aluminium
Sealing Material	Viton (FKM)
Connector Type	Deutsch DTM‑04‑2P (or compatible)
Operating Temperature	-40°C to +150°C
Weight	0.42 kg
Application	Transmission shift/clutch control
Compatible Models	Howo A7, T7, C7H, HW series; Sinotruk heavy‑duty trucks

Why the Genuine Sinotruk 860-133-242 Outperforms Generic Solenoids

Generic replacement solenoids often use inferior copper wire with substandard insulation, leading to premature coil failure, short circuits, or changes in resistance that cause erratic solenoid behaviour. The 860-133-242 is wound with high‑purity copper and fully encapsulated to prevent moisture ingress and vibration damage, ensuring stable electrical characteristics over the coil’s entire service life.

Moreover, the genuine Sinotruk solenoid is calibrated to the exact inductance, resistance, and hydraulic flow characteristics required by the TCU, ensuring that shift timing and pressure modulation remain within factory specifications. Generic solenoids may have different electrical or hydraulic parameters, leading to delayed or harsh shifts, increased fuel consumption, and accelerated wear on clutch packs. By choosing the Sinotruk 860-133-242, you protect the sophisticated electronics of your transmission and maintain the driving quality and efficiency your truck was designed to deliver.

Advanced Materials for Maximum Durability

The encapsulation material used in the 860-133-242 is specially formulated to resist the corrosive effects of hot transmission fluid and the thermal cycling that occurs during normal operation. Its high dielectric strength prevents electrical leakage, while the integrated sealing O‑rings ensure that fluid cannot penetrate the solenoid housing, eliminating the risk of internal short circuits.

Compatibility and Fitment

The 860-133-242 is a direct replacement for the original shift solenoid on a wide range of Sinotruk and Howo transmissions. Its connector and mounting dimensions match the factory unit exactly, ensuring a straightforward installation. Always verify the solenoid’s resistance and connector type before ordering, and use only genuine Sinotruk parts to ensure reliable electrical and mechanical compatibility.

Explore the full range of genuine Howo Parts available for your fleet, including valve body components, sensors, and transmission electronics. The 860-133-242 solenoid valve is an essential part of that ecosystem – and with Sinotruk’s original quality, you can be confident that your transmission will shift smoothly and reliably.

Installation Best Practices for the 860-133-242

Installing the 860-133-242 solenoid valve is a straightforward procedure, but care must be taken to avoid damage. Begin by disconnecting the battery negative terminal and removing the transmission pan (if applicable) to access the valve body. Carefully disconnect the electrical connector and remove the retaining clip or screw holding the old solenoid. Clean the solenoid mounting surface and install the new valve, ensuring the O‑ring is seated correctly. Tighten any retaining hardware to the specified torque, reconnect the electrical connector, and reassemble the transmission. Refill with the recommended fluid and perform a learn procedure (if required) using a diagnostic tool.

Regular testing of the 860-133-242 solenoid’s resistance with a multimeter can help detect early signs of degradation. If the resistance deviates from the specification (14.5 Ω ± 5%), or if the valve shows signs of sticking or leaking, replace it immediately with a new genuine unit to avoid transmission shifting issues.

Built for Nigeria – Precision Control in Demanding Conditions

Nigeria’s extreme heat, dusty roads, and stop‑start traffic place exceptional demands on transmission control components. The 860-133-242 solenoid valve is designed to operate reliably under these conditions, with high‑temperature insulation and a robust housing that resists thermal degradation and contamination. Its stable electrical and hydraulic characteristics ensure that the TCU can maintain precise shift scheduling, even when operating at the limits of the system’s thermal capacity.

Furthermore, the genuine Sinotruk solenoid reduces the risk of intermittent faults that can lead to transmission failure or unsafe driving conditions. By investing in the Sinotruk 860-133-242, fleet operators can minimise downtime, avoid costly diagnostic work, and keep their trucks operating at peak efficiency, enhancing overall fleet profitability.

Ensure Smooth Shifting with the Genuine 860-133-242 Solenoid Valve

The 860-133-242 Solenoid Valve (Trans) is a critical component that ensures your Howo truck’s transmission operates with precision and reliability. Its superior electrical and hydraulic design, robust construction, and exact OEM fitment make it the definitive choice for professional workshops and fleet managers. Every time you install a genuine Sinotruk 860-133-242, you are investing in smooth gear changes, reduced wear, and long‑term transmission health.

Don’t compromise with generic solenoids that may not deliver the same level of performance or durability. Insist on the genuine 860-133-242 – the solenoid valve trusted by experienced mechanics and fleet operators across Nigeria. With its proven performance in the most demanding applications, this solenoid delivers the control, reliability, and peace of mind you deserve.

Genuine Sinotruk 860-133-242 – Engineered for excellence. Built for Africa. Trusted by professionals.
