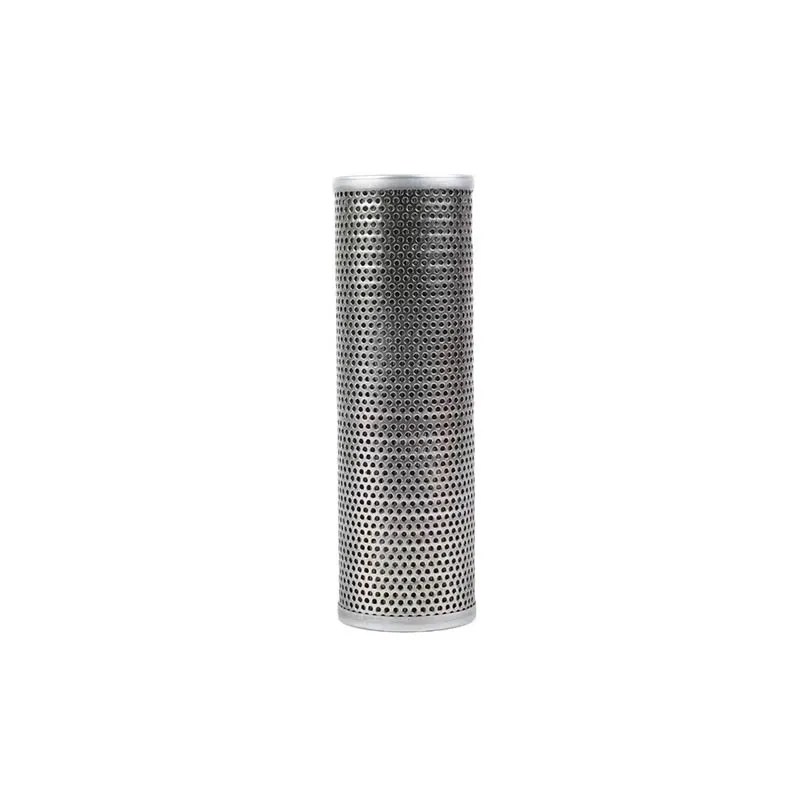

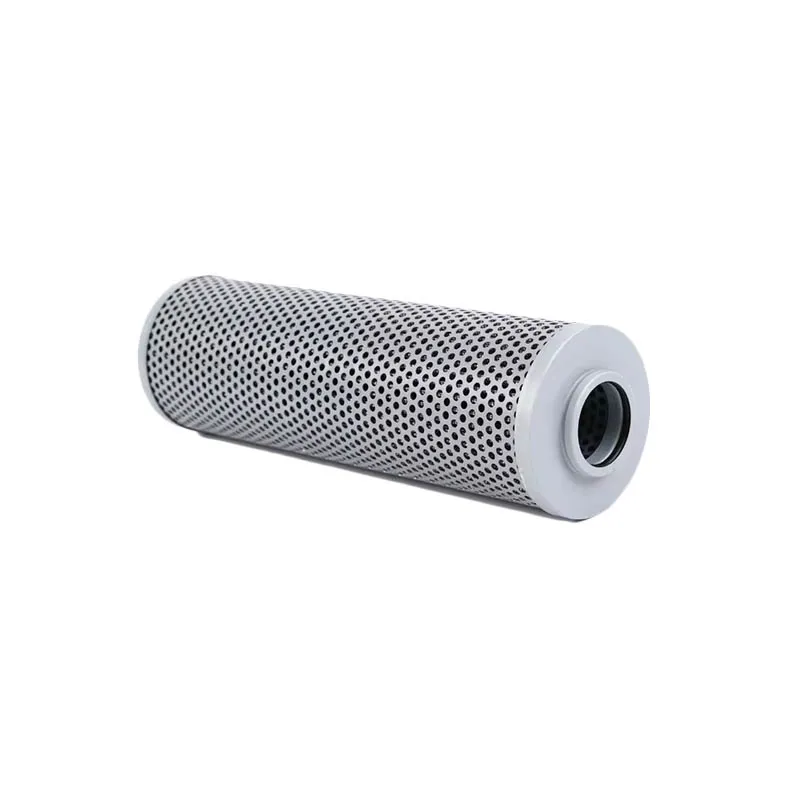

Genuine Sinotruk Filter Hydraulic Pilot 860-152-661 – Superior Filtration & Unmatched System Reliability for Howo Heavy-Duty Trucks

Engineering Excellence Behind the 860-152-661 Pilot Filter

The 860-152-661 hydraulic pilot filter is the result of advanced filtration technology and rigorous field testing. Its media is composed of high‑grade borosilicate microfibres that provide exceptional particle capture efficiency while maintaining low pressure drop – critical for pilot circuits where precise pressure modulation is required. The pleated design maximises filter surface area, extending service life and reducing replacement frequency.

The filter’s bypass valve is set to open at a differential pressure of 2.5 bar, ensuring that oil continues to flow to the pilot system even if the filter becomes clogged, preventing starvation and maintaining control. The anti‑drain‑back valve prevents oil from draining out when the engine is off, ensuring immediate pressure build‑up on start‑up – a key feature for responsive steering and brake actuation.

In typical Howo truck applications, the 860-152-661 is installed in the pilot oil supply line, filtering oil before it reaches the steering control valve, brake modulator, or transmission shift valve. Its robust construction resists collapse under high flow and pressure spikes, and its sealing elements are compatible with all major hydraulic fluids, including mineral oils, synthetic esters, and biodegradable fluids. Regular replacement of this filter at recommended service intervals – and using only genuine Sinotruk 860-152-661 – is the most effective way to prevent pilot system malfunctions, ensure smooth control, and extend the life of hydraulic components.

Technical Specifications – Filter Hydraulic Pilot 860-152-661

Parameter	Specification
OEM Part Number	860-152-661
Product Name	Filter Hydraulic Pilot (Spin‑on)
Brand	Sinotruk (Genuine OEM)
Media Type	Micro‑glass / synthetic blend
Micron Rating (β≥200)	5 µm (nominal)
Dirt‑Holding Capacity	≥ 25 g (ISO 16889)
Max Flow Rate	80 L/min
Bypass Valve Setting	2.5 bar ± 0.3 bar
Anti‑Drain Valve	Yes (silicone)
Operating Temperature	-40°C to +110°C
Fluid Compatibility	Mineral oils, synthetic hydraulic fluids
Connection Thread	M18 x 1.5
Application	Pilot hydraulic circuits (steering, brake, transmission)
Compatible Models	Howo A7, T7, C7H, HW series; Sinotruk heavy‑duty trucks

Why the Genuine Sinotruk 860-152-661 Outperforms Generic Pilot Filters

Generic pilot filters often use inferior cellulose media that fails to capture fine particles, leading to valve sticking, erratic control, and accelerated wear. The 860-152-661, with its advanced micro‑glass media, delivers consistent filtration efficiency and high dirt‑holding capacity, ensuring that your pilot circuit remains clean and responsive. Its precise bypass valve calibration also ensures that unfiltered oil is never allowed to bypass under normal operating conditions, protecting sensitive components.

Moreover, the genuine Sinotruk filter is built to the exact dimensions and flow characteristics of the original equipment, guaranteeing a perfect seal and preventing unfiltered bypass. Generic filters may have incorrect thread sizes or poor sealing, allowing contaminants to enter the pilot circuit and cause malfunctions. By choosing the Sinotruk 860-152-661, you protect your hydraulic system from the silent damage caused by abrasive particles, extending the service life of pumps, valves, and actuators.

Advanced Media Technology for Critical Applications

The micro‑glass media in the 860-152-661 is specifically designed to capture the fine wear debris generated in high‑pressure hydraulic systems. Its high porosity allows for low flow resistance, ensuring that pilot pressure remains stable and responsive, even during rapid control inputs. This results in smoother steering, more precise braking, and more consistent transmission shifting – all contributing to improved driver comfort and safety.

Compatibility and Fitment

The 860-152-661 is a direct replacement for the original pilot filter on a wide range of Sinotruk and Howo models. Its spin‑on design and M18x1.5 thread make installation quick and easy. Always verify the filter’s micron rating and bypass valve setting against your system’s specifications, and use only genuine Sinotruk parts to guarantee fitment and performance.

Explore the full range of genuine Howo Parts available for your fleet, including hydraulic components, steering systems, and transmission hardware. The 860-152-661 pilot filter is an essential part of that ecosystem – and with Sinotruk’s original quality, you can be confident that your hydraulic controls will remain precise and reliable.

Installation and Maintenance Best Practices

Installing the 860-152-661 pilot filter is a straightforward procedure that can be performed in minutes. Begin by relieving the hydraulic system pressure and placing a suitable container under the filter head. Remove the old filter using a strap wrench, taking care not to spill oil. Clean the filter head sealing surface and lubricate the new filter’s O‑ring with clean hydraulic fluid. Screw the new filter on until the gasket makes contact, then tighten an additional ¾ to 1 turn. Refill the system if necessary, start the engine, and check for leaks.

For optimal protection, we recommend replacing the 860-152-661 filter every 1,000 operating hours or at least annually, whichever comes first. In severe‑duty applications, such as mining or construction, more frequent replacement may be required. Always use genuine Sinotruk 860-152-661 filters to guarantee fitment, performance, and warranty compliance.

Built for Nigeria – Precision Filtration in Challenging Environments

Nigeria’s hot, dusty climate and rough roads place exceptional stress on hydraulic systems. The 860-152-661 pilot filter is engineered to handle these conditions, with high‑efficiency media that captures abrasive dust and wear particles before they can damage pilot valves and pumps. Its robust construction and temperature‑resistant seals ensure reliable performance even when operating in ambient temperatures exceeding 45°C.

Furthermore, the genuine Sinotruk filter helps maintain consistent pilot pressure, ensuring that steering, braking, and transmission responses remain predictable and safe. By investing in the Sinotruk 860-152-661, fleet operators can reduce unscheduled downtime, improve driver confidence, and extend the life of their hydraulic systems – a critical advantage in Nigeria’s competitive transport industry.

Protect Your Pilot System with the Genuine 860-152-661 Filter

The 860-152-661 Hydraulic Pilot Filter is a small but indispensable component that ensures the precision and reliability of your Howo truck’s control systems. Its superior filtration efficiency, durable construction, and exact OEM fitment make it the only choice for professional maintenance. Every time you install a genuine Sinotruk 860-152-661, you are investing in system longevity, operational reliability, and driver safety.

Don’t settle for generic filters that may compromise filtration performance or cause bypass valve malfunctions. Insist on the genuine 860-152-661 – the pilot filter trusted by experienced mechanics and fleet operators across Nigeria. With its proven track record in heavy‑duty applications, this filter delivers the protection and reliability you deserve.

Genuine Sinotruk 860-152-661 – Engineered for excellence. Built for Africa. Trusted by professionals.
