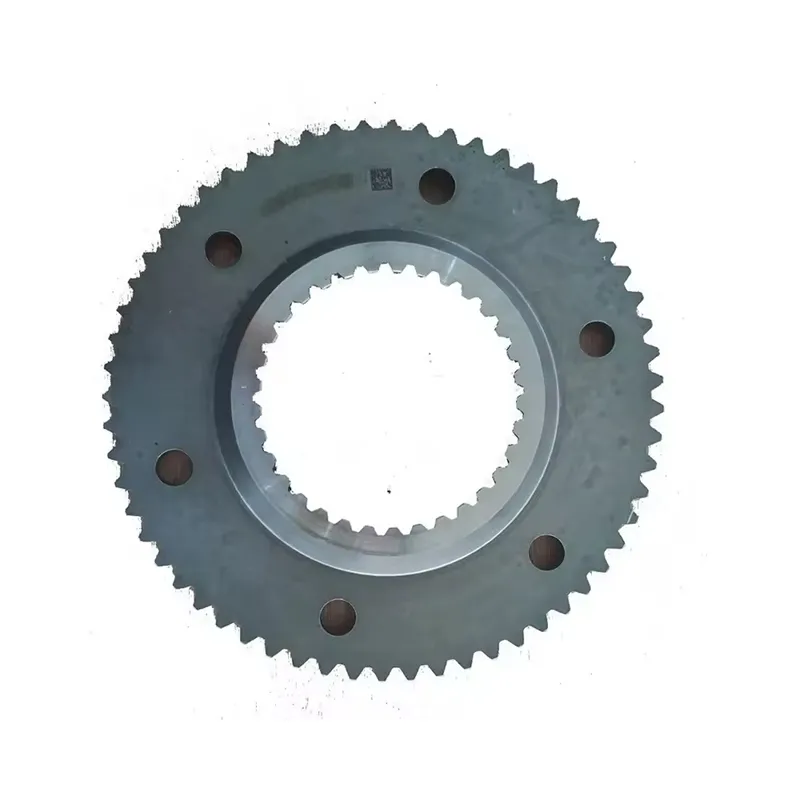

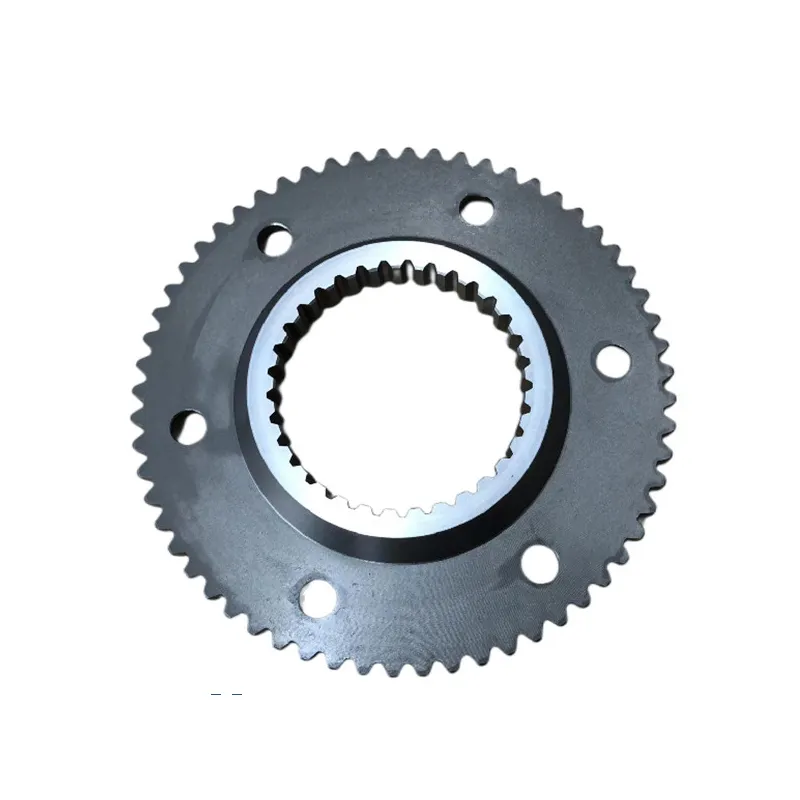

AZ2210100126 Sinotruk Fixed Gear Hub: Unbreakable Torque Transfer & Ultimate Transmission Reliability for Nigerian Heavy-Duty Trucks

Why the Sinotruk Fixed Gear Hub AZ2210100126 Is Vital for Howo Transmissions

In a manual transmission, the fixed gear hub (also called a gear carrier or constant-mesh hub) supports the driving gears that are always in mesh. Unlike sliding gears, these hubs must withstand continuous rotational forces and occasional shock loads. The AZ2210100126 fixed gear hub is designed for the HW series gearboxes (HW19710, HW18710) found in Howo 6X4 and 8X4 trucks. It provides a rigid mounting surface for gears, bearings, and synchronizers, ensuring that all components stay aligned even under extreme torque.

When this hub wears or cracks, symptoms include: unusual whining or rumbling noises in all forward gears, difficulty engaging gears (especially from neutral), and metal particles in the transmission oil. In severe cases, a broken hub can allow gears to shift axially, causing complete transmission lock-up. Nigerian fleet owners who have experienced such failures know that replacing the hub with a genuine AZ2210100126 is far cheaper than replacing the entire gearbox.

Advanced Metallurgy for Extreme Durability

The AZ2210100126 fixed gear hub is forged from 42CrMo4 high-strength alloy steel, a material known for its excellent toughness and fatigue resistance. After forging, the hub undergoes a multi-stage heat treatment: carburizing (case depth 1.0–1.4 mm), quenching, and tempering to achieve a surface hardness of 55–60 HRC while maintaining a tough core (30–35 HRC). This combination prevents surface pitting from gear teeth contact and resists cracking from shock loads.

The hub is then precision-ground on all critical surfaces: the gear mounting diameter (tolerance ±0.02 mm), the bearing seats (tolerance ±0.01 mm), and the spline teeth (AGMA Class 8). This level of precision ensures that when you install the hub, gears run true and synchronizers align perfectly. In contrast, aftermarket hubs often have larger tolerances, leading to gear wobble and premature wear of bearings and shift forks.

Cost-Effective Transmission Overhaul with Genuine Howo Parts

During a transmission rebuild, many mechanics focus on synchronizers and bearings but overlook the fixed gear hub. However, a worn hub can cause all new components to fail prematurely. Using a genuine Howo Parts AZ2210100126 hub ensures that the rebuilt transmission will last for another 500,000 km. The hub’s high-quality steel and precise machining reduce internal friction, improving fuel efficiency by up to 2% compared to a worn or out-of-spec hub.

Many Nigerian transmission specialists now include the AZ2210100126 in their standard rebuild kits. They have observed that trucks with new genuine hubs shift more smoothly and run quieter. Given that a failed hub can cause catastrophic damage (shattered gears, broken case), the relatively low cost of this component is excellent insurance.

Technical Specifications: Sinotruk Fixed Gear Hub (AZ2210100126)

Parameter	Specification
OEM Number	AZ2210100126
Part Name	Fixed Gear Hub / Constant-Mesh Gear Carrier
Brand	Sinotruk (OEM Genuine)
Material	42CrMo4 forged alloy steel
Heat Treatment	Carburized & tempered (case depth 1.0–1.4 mm)
Surface Hardness	55 – 60 HRC
Core Hardness	30 – 35 HRC
Spline Specification	Involute, AGMA Class 8, ground finish
Bearing Seat Diameter	65 mm (tolerance h6)
Overall Length	82 mm ±0.1 mm
Compatible Transmissions	Sinotruk HW19710, HW18710, HW15710 (10-speed)
Compatible Models	Howo 6X4, 8X4, Dump Trucks, Tractor Heads, Concrete Mixers
Service Life (typical)	500,000+ km with proper lubrication
Packaging	Anti-rust oiled, foam-lined box with Sinotruk hologram

The AZ2210100126 fixed gear hub is a direct replacement for the original component in the main gearbox (usually located on the countershaft or mainshaft, depending on design). When ordering, confirm that your transmission model matches the HW family. For older Howo trucks with ZF or Fuller gearboxes, this hub may not be compatible.

Signs of a Worn or Damaged Fixed Gear Hub

Typical indicators that the AZ2210100126 hub needs replacement include: a constant, speed-dependent whining noise that disappears when the clutch is disengaged; metal flakes in the transmission oil (visible during oil change); difficulty holding the gear lever in neutral (the transmission wants to pop into a gear); and excessive axial play of the gear cluster when inspected.

To inspect, the transmission must be removed and disassembled. Check the hub for cracks, wear on the spline teeth, and scoring on the bearing journals. Also inspect the mating gears – if they show uneven wear patterns, the hub is likely out of true. Replacing the hub with a genuine AZ2210100126 resolves these issues and prevents further damage to the gearbox case.

Compatibility Across Sinotruk Howo Transmission Families

The AZ2210100126 fixed gear hub is used primarily in the HW19710 and HW18710 10-speed manual transmissions, which are standard on Howo 6X4 and 8X4 trucks manufactured after 2008. These transmissions are known for their robustness and are widely serviced across Nigeria. The hub is also found in some HW15710 gearboxes used in lighter-duty Howo models. Before ordering, confirm your transmission model tag (located on the passenger side of the gearbox).

For trucks with different transmission brands (e.g., ZF 16S or Eaton Fuller), this hub will not fit. However, the majority of Sinotruk vehicles in Nigeria use HW series boxes, making the AZ2210100126 a high-demand part. Fleet managers can stock this hub as a critical spare to reduce downtime during unscheduled repairs.

Installation Best Practices for Maximum Life

To install the new AZ2210100126 hub: remove the transmission, disassemble the mainshaft or countershaft stack, press out the old hub (use a hydraulic press), clean all mating surfaces, inspect the shaft for wear, heat the new hub to 80–100°C (to expand it slightly), slide it onto the shaft, and allow to cool. Then press on the gears and bearings, ensuring that snap rings are fully seated. Torque all fasteners to factory specs (available in the service manual).

After reassembly, fill with the recommended GL-4 80W-90 transmission oil (never GL-5, which attacks yellow metals). Run the transmission on a test stand or perform a road test, listening for abnormal noises. Many Nigerian workshops have found that using genuine AZ2210100126 hubs eliminates the need for subsequent rework.

Counterfeit fixed gear hubs are a problem in the Nigerian aftermarket. Fakes often use lower-grade steel (e.g., 1045 instead of 42CrMo4), lack proper heat treatment, and have visible machining marks on critical surfaces. Genuine AZ2210100126 hubs have a smooth, ground finish, laser-etched part numbers, and come in a sealed box with a Sinotruk holographic sticker. The genuine hub also has a distinctive dark gray color from the heat treatment.

When you purchase from authorized distributors of Howo Parts, you receive the exact hub used in Sinotruk’s factory transmissions. Your transmission’s reliability and your vehicle’s uptime depend on genuine components.

In summary, the Sinotruk Fixed Gear Hub AZ2210100126 is a precision component that directly impacts transmission durability, shift quality, and noise levels. Its forged steel construction, precise machining, and exact fitment make it the only choice for serious transmission overhauls in Nigeria.

By replacing a worn hub with this genuine OEM part, you eliminate gear whine, prevent catastrophic failure, and extend the life of your gearbox. Don’t let a compromised hub ruin your transmission – order the AZ2210100126 today and drive with confidence.

Precision power, lasting reliability. The AZ2210100126 fixed gear hub is available now across Nigeria. Always insist on genuine Howo Parts for uncompromised transmission performance.

Order Genuine AZ2210100126 Now
