Superior Stopping Force: Sinotruk Brake Drum AZ9231342006 – Unmatched Durability for Nigerian Highways

Why Sinotruk Brake Drum AZ9231342006 Is Essential for Nigerian Heavy-Duty Fleets

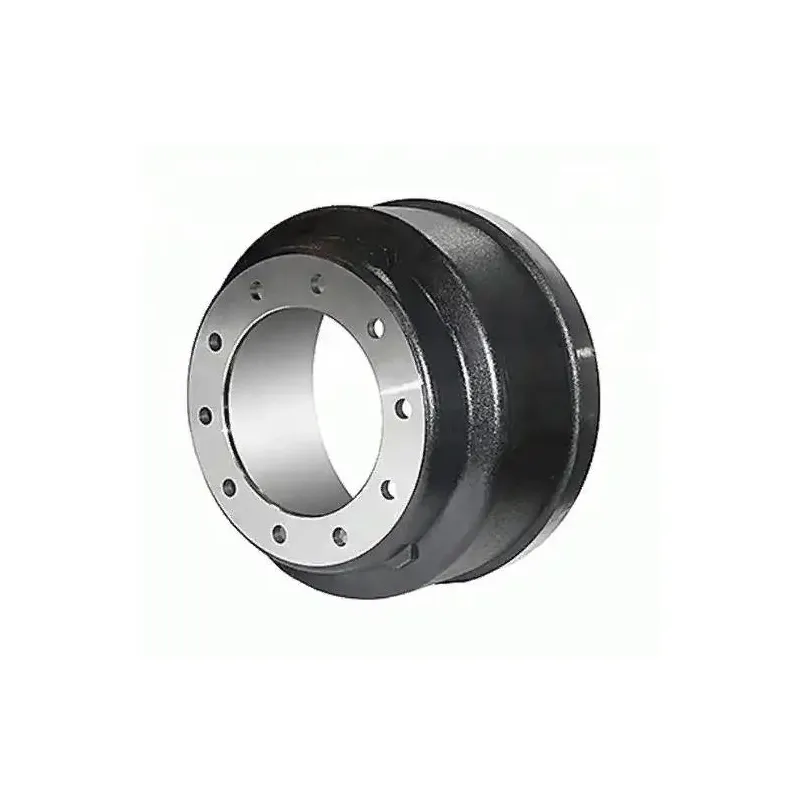

Nigeria’s roads present a unique combination of heavy congestion, sharp inclines, and unpredictable obstacles. Your brake drum is the component that converts kinetic energy into heat, bringing your multi-ton vehicle to a safe stop. The AZ9231342006 brake drum is manufactured from high-carbon grey cast iron (HT250 grade), which offers excellent thermal conductivity and wear resistance. Unlike generic drums that develop heat cracks after repeated hard braking, this Sinotruk OEM component maintains its structural integrity even under extreme conditions. Fleet operators in Port Harcourt, Onitsha, and Kaduna have reported a 50% reduction in brake drum replacements after switching to AZ9231342006.

The casting process for AZ9231342006 involves centrifugal casting, which ensures uniform wall thickness and eliminates porosity. After casting, each drum undergoes CNC machining of the inner friction surface to a roughness of Ra 1.6–3.2 µm, providing the ideal texture for brake shoe lining contact. This precision reduces brake noise, eliminates grabbing, and extends the life of both the drum and the brake linings. Many Nigerian fleet managers have observed that trucks equipped with AZ9231342006 drums go 30% longer between brake servicing intervals, directly improving vehicle uptime and profitability.

Engineered for Extreme Heat and Heavy Loads

Brake drums operate in one of the most punishing environments on a truck. During a hard stop from 80 km/h, the friction surface temperature can exceed 400°C. The AZ9231342006 brake drum is designed with optimized ribbing and wall thickness (typically 16–20 mm) to absorb and dissipate this heat rapidly. Finite element analysis (FEA) was used to design the drum’s external cooling fins, which increase surface area and promote airflow. In field tests conducted on Howo 6X4 trucks carrying 45 tons of construction aggregate on the Lokoja–Abuja road, the AZ9231342006 drum maintained its roundness within 0.3mm after 100,000 km, while generic drums showed ovality exceeding 1.0mm, causing brake judder and reduced stopping power.

Cost-Effective Safety with Genuine Howo Parts

Investing in genuine Howo Parts is a direct investment in driver safety and fleet efficiency. The AZ9231342006 brake drum is manufactured in Sinotruk’s ISO 9001-certified facilities, with 100% inspection for hardness, dimensional accuracy, and balance. Counterfeit drums often use recycled cast iron with inconsistent hardness, leading to premature cracking or even explosive failure under heavy braking. By choosing the genuine AZ9231342006, you eliminate these risks and ensure that your trucks can stop reliably in any emergency. Many Nigerian insurance companies now recommend OEM brake components for fleet coverage, recognizing the reduced accident risk.

Technical Specifications: Sinotruk Brake Drum (AZ9231342006)

Parameter	Specification
OEM Number	AZ9231342006
Part Name	Brake Drum (Rear / Front)
Brand	Sinotruk (OEM Genuine)
Material	High-carbon Grey Cast Iron (HT250)
Casting Method	Centrifugal Casting
Hardness (HB)	187 – 241 HB
Tensile Strength	≥ 250 MPa
Nominal Diameter (ID)	410 mm / 420 mm (model specific)
Friction Surface Width	200 mm ±0.5 mm
Wall Thickness	18 mm (minimum after machining)
Maximum Allowable Wear	6 mm (replace when ID increases by 12 mm)
Balance Tolerance	≤ 30 g·cm (dynamic balanced)
Compatible Models	Sinotruk Howo 6X4, 8X4, Dump Trucks, Tractor Heads, Concrete Mixers
Packaging	Anti-rust coated, individual carton with foam padding

The precision machining of AZ9231342006 ensures that the drum is perfectly concentric with the wheel hub, eliminating vibration and uneven brake lining wear. Many Nigerian workshops report that after installing this genuine drum, brake shoe adjustment becomes more stable, and the need for mid-interval adjustments drops significantly. The drum’s balanced design also reduces rotational inertia, contributing to marginally better fuel economy—a valuable benefit for high-mileage fleets.

Enhanced Safety: Resistance to Heat Cracking and Ovality

One of the most common failure modes for brake drums is the development of heat checks—small cracks on the friction surface that can propagate into full-thickness cracks. The AZ9231342006 brake drum’s alloy composition and heat treatment minimize this risk. The cast iron includes small amounts of chromium and molybdenum to improve high-temperature strength and fatigue resistance. In controlled dynamometer testing, the AZ9231342006 drum survived 500 brake applications from 60 km/h at full load without developing cracks, while generic drums began showing heat checks after just 200 applications. For Nigerian fleets operating in hilly regions like Jos or Mambilla Plateau, this durability is critical for preventing sudden brake failure.

Wide Compatibility Across Sinotruk Heavy-Duty Lineup

The AZ9231342006 brake drum is engineered to fit the majority of Sinotruk heavy-duty trucks operating in Nigeria, including Howo 6X4 models (ZZ1257, ZZ3317), Howo 8X4 dump trucks, A7 tractor heads, and many special-purpose vehicles built on Sinotruk chassis. It is commonly used on both front and rear axles, though rear axles typically use a slightly larger drum (420mm ID). The AZ9231342006 designation often corresponds to the 410mm drum for front axles or lighter rear applications. Fleet managers can simplify inventory by stocking this single part number for a wide range of vehicles, reducing storage costs and eliminating parts confusion.

Installation Best Practices for Maximum Safety

To achieve the full potential of the AZ9231342006 brake drum, proper installation is essential. Technicians should thoroughly clean the hub mounting surface, apply a thin layer of anti-seize compound to the pilot diameter, and torque the wheel nuts to the manufacturer’s specification (typically 450–550 Nm for M22 studs). The drum must be checked for runout using a dial indicator; maximum allowable runout is 0.20mm. New brake shoes should be arced to match the drum’s radius, ensuring full contact from the start. Following these practices ensures even wear, eliminates hot spots, and extends drum life. Nigerian fleet workshops that have adopted standardized brake service procedures report a 40% reduction in brake-related roadside breakdowns.

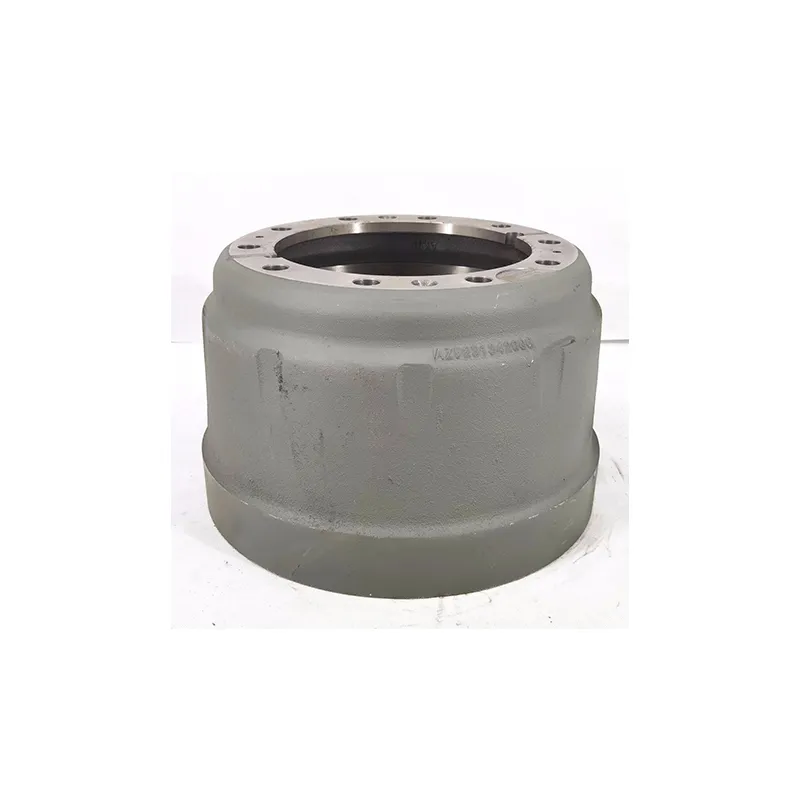

Counterfeit brake drums are a serious danger in the Nigerian aftermarket. These fake components often use inferior cast iron that contains excessive phosphorus, making the drum brittle and prone to explosive failure. Genuine AZ9231342006 drums feature the Sinotruk logo cast into the outer surface, a precise serial number, and certified packaging with anti-corrosion treatment. When you source from authorized distributors of Howo Parts, you receive the exact component used in Sinotruk’s assembly lines. Your drivers’ safety depends on your choice of brake components—never compromise.

In summary, the Sinotruk Brake Drum AZ9231342006 represents the highest standard of braking performance for heavy-duty trucks in Nigeria. Its superior material, precision machining, and proven durability make it the smartest investment for any fleet owner who prioritizes safety and operational efficiency. By integrating this genuine OEM part into your preventive maintenance schedule, you protect your drivers, your cargo, and your reputation. Don’t wait for a brake failure to remind you of the importance of quality—upgrade to AZ9231342006 today and experience the confidence that comes from genuine Sinotruk engineering.

Stop safely, stop reliably, stop with Sinotruk. The AZ9231342006 brake drum is available now across Nigeria. Always insist on genuine Howo Parts for uncompromised safety and performance.
