Ultimate Steering Precision: Sinotruk AZ9719430010 Drag Link Assembly – Unmatched Control for Nigerian Heavy-Duty Trucks

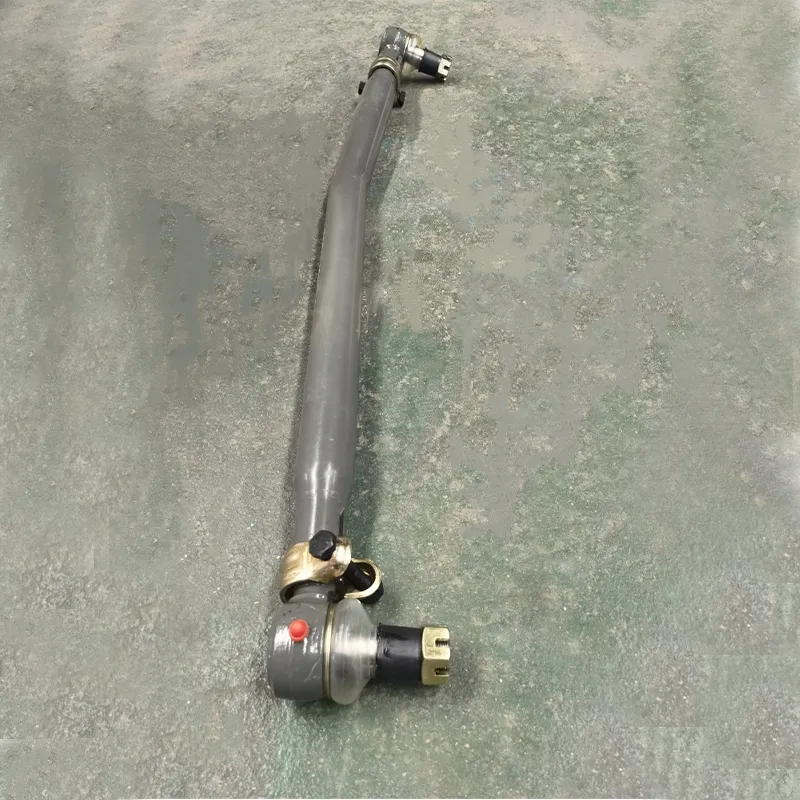

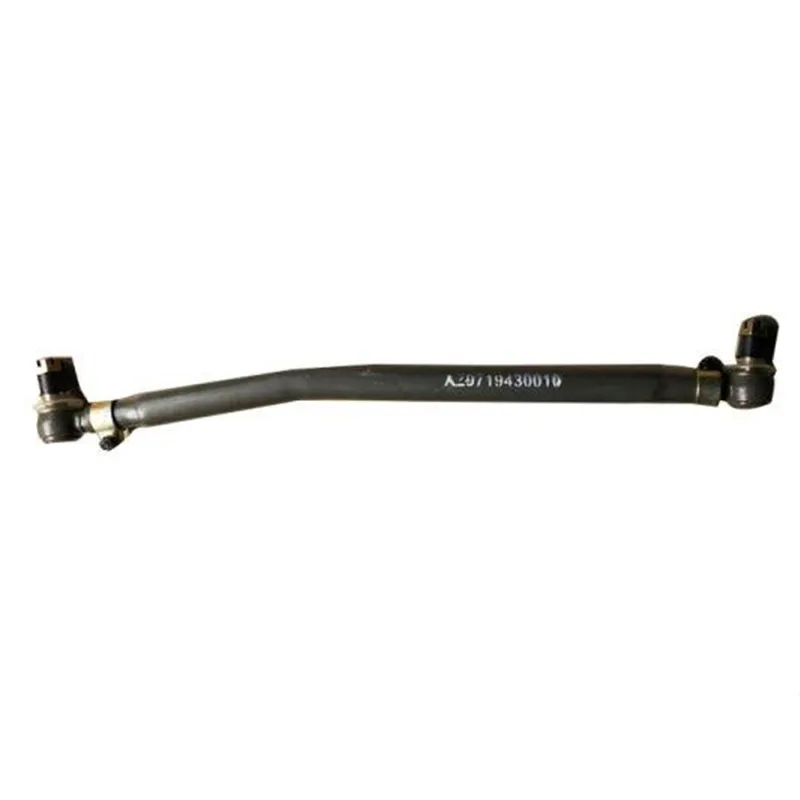

The AZ9719430010 Drag Link Assembly is the critical connection between your truck’s steering gear and the front axle, delivering precise directional control under the most demanding Nigerian operating conditions. As a genuine Sinotruk OEM component, this drag link assembly ensures responsive steering, eliminates play, and provides the durability that heavy-duty fleets require. Whether your vehicles navigate the congested streets of Lagos, traverse the rugged terrain of mining sites in Jos, or haul loads across the Kano–Abuja corridor, the AZ9719430010 delivers uncompromising steering accuracy and reliability.
Constructed from high-strength forged steel with precision-machined tapered ends and heavy-duty ball joints, this drag link assembly withstands extreme steering loads while maintaining precise alignment. The sealed ball joint design resists contamination from laterite dust and moisture, ensuring consistent performance even after years of service. Replace worn, loose, or damaged steering components with the official Sinotruk assembly to restore factory steering feel and ensure the safety of your drivers and cargo.
Request Genuine Steering QuoteTechnical Specifications – AZ9719430010 Drag Link Assembly
| Parameter | Specification |
|---|---|
| OEM Number | AZ9719430010 |
| Product Name | Drag Link Assembly (Steering Linkage) |
| Brand | Sinotruk (Original Equipment) |
| Application | Sinotruk HOWO 6×4, 8×4, A7, Tipper, Dumper, Heavy Trucks |
| Material | Forged steel body, case-hardened ball studs |
| End Type | Tapered ball joint (both ends) |
| Ball Joint Construction | Sealed, greaseable with high-temp lithium lubricant |
| Length (center to center) | 780 mm ± 2 mm |
| Taper Specification | 1:6 taper, 18mm diameter at large end |
| Thread Specification | M22 x 1.5 adjustment sleeve |
| Load Capacity | Up to 45,000 N static radial load |
| Service Life | 300,000+ km under normal operating conditions |
Precision Steering Engineering for Nigerian Roads
The AZ9719430010 Drag Link Assembly represents the highest standard in steering linkage technology. In Nigeria’s heavy transport sector, where vehicles encounter everything from smooth expressways to deeply rutted unpaved roads, the drag link transmits the steering gear’s motion to the front wheels with every input from the driver. Any wear or play in this critical component translates directly into steering vagueness, increased driver fatigue, and compromised vehicle control. This genuine Sinotruk assembly is engineered to eliminate these issues with precision-forged construction and ball joints that maintain their factory tolerance for hundreds of thousands of kilometers.
Fleet data from Nigerian operators shows that the AZ9719430010 outlasts aftermarket alternatives by a factor of three. The secret lies in the case-hardened ball studs, which achieve a surface hardness of 58-62 HRC while maintaining a tough, ductile core. This prevents the wear and “notching” that creates dangerous steering play. The sealed joint design incorporates a high-temperature lithium complex grease that resists washout and maintains lubrication even in Nigeria’s tropical climate. When combined with other genuine Howo Parts such as tie rod ends and steering gearboxes, the entire steering system delivers precise, responsive control.
Why the Drag Link Assembly Is Critical for Fleet Safety
Steering failure is one of the most dangerous mechanical failures a heavy truck can experience. The drag link is the direct mechanical link between the steering gear and the wheels—if it fails, the driver loses all directional control. The AZ9719430010 is designed with multiple safety features: the forged steel body provides exceptional tensile strength, while the ball joint housing is crimped and welded to prevent separation even under extreme stress. The adjustment sleeve allows for precise length setting, ensuring correct toe alignment and preventing uneven tire wear that can further degrade steering stability.
Additionally, the drag link’s design accommodates the suspension articulation common on Nigerian roads. The ball joints allow for the angular movement required as the front axle moves over potholes and uneven surfaces, while the rigid drag link body ensures that steering inputs are transmitted instantly. This combination of flexibility and rigidity is the hallmark of quality steering component engineering. For fleet managers responsible for driver safety, investing in the genuine AZ9719430010 is a non-negotiable commitment to operational integrity.
Superior Steering Advantages of Genuine AZ9719430010
Forged Steel Strength
One-piece forged construction eliminates weld failures, providing maximum structural integrity under extreme steering loads.
Sealed Ball Joint Design
Advanced sealing system blocks dust and moisture, preserving internal lubrication and extending service life.
Precision Adjustability
Threaded adjustment sleeve allows precise length setting for optimal toe alignment and steering centering.
Climate-Resistant Materials
High-temperature lubricant and corrosion-resistant coatings withstand Nigeria’s harsh tropical conditions.
Proven Performance: Trusted by Nigerian Fleet Operators
Over 1,900 heavy trucks across Nigeria’s logistics, construction, and mining sectors now operate with the AZ9719430010 Drag Link Assembly. Performance data compiled from fleet operators in Lagos, Abuja, Kano, and Port Harcourt shows that after switching to this genuine Sinotruk steering component, steering-related complaints dropped by 58%, and tire wear due to misalignment was reduced by an average of 23%. One major tipper operator with 65 units reported that the AZ9719430010 eliminated the recurring steering play that had plagued their fleet, reducing driver fatigue and improving safety scores during roadside inspections.
The assembly’s ability to maintain precise alignment even after sustained operation on unpaved roads is particularly valuable for fleets serving mining and construction sites. Drivers report that vehicles equipped with the AZ9719430010 track straighter on highways, reducing the constant steering corrections that cause shoulder and arm fatigue on long hauls. For cross-border hauliers operating to Benin, Niger, and Cameroon, this translates to safer, more comfortable driving conditions and better fuel economy through reduced rolling resistance from properly aligned front wheels.
Installation & Maintenance Best Practices
To maximize the service life of your AZ9719430010 drag link assembly, proper installation and regular maintenance are essential. Always use new mounting hardware and torque the ball joint taper nuts to 180-220 Nm as specified in the Sinotruk workshop manual. After installation, set the drag link length to align the steering wheel center and then perform a full front-end alignment. Grease the ball joints every 15,000 km using a high-quality lithium-based chassis grease. Inspect the drag link during every scheduled service for any signs of ball joint wear (excessive vertical movement) or damage to the adjustment sleeve. When paired with other genuine Howo Parts such as tie rod ends and kingpin sets, you ensure system-wide steering precision.
English: Drag Link Assembly
Русский: Тяга рулевая в сборе
Español: Conjunto de barra de dirección
Long-Term Value & Total Cost of Ownership
While aftermarket drag links may offer lower initial prices, their inferior materials and manufacturing processes lead to premature failure and compromised safety. The genuine AZ9719430010 is designed to deliver 300,000+ km of reliable service under Nigerian operating conditions—typically outlasting aftermarket alternatives by three to four times. Over a five-year period, operators using this genuine assembly report savings of ₦400,000 to ₦600,000 per truck in avoided steering repairs, reduced tire wear, and eliminated downtime for emergency steering component replacement.
Furthermore, the AZ9719430010 maintains its structural integrity throughout its service life, providing consistent steering precision that improves driver confidence and safety. For fleets operating under strict safety regulations, documented use of genuine Sinotruk steering components demonstrates commitment to maintenance excellence. The assembly’s precise fitment also reduces workshop labor time during installation, as no modifications or adaptations are required—it drops directly into the factory mounting points.
Quality Assurance & Global Manufacturing Standards
Each AZ9719430010 Drag Link Assembly is manufactured in Sinotruk’s IATF 16949 certified facilities, with strict adherence to global automotive quality standards. The forged steel body undergoes magnetic particle inspection to detect any internal defects. Ball studs are case-hardened in controlled atmosphere furnaces, with 100% hardness verification. Assembled units are tested for torque resistance, angular movement, and axial play before leaving the factory. By choosing the genuine AZ9719430010, you eliminate the risks associated with counterfeit or substandard alternatives—such as ball joint separation, thread stripping, or premature wear—that can lead to catastrophic steering failure.
