Unstoppable Power Engagement: Sinotruk AZ9921160220 Clutch Pressure Plate – Maximum Grip & Reliability for Nigerian Heavy Haulage
The AZ9921160220 Clutch Pressure Plate is the heart of your truck’s power transmission system, engineered to deliver seamless engagement and superior torque handling under the toughest Nigerian operating conditions. As a genuine Sinotruk OEM component, this diaphragm spring clutch pressure plate ensures consistent clamping force, eliminates clutch slippage, and provides the durability that heavy‑duty fleets depend on. Whether your vehicles navigate stop‑and‑go Lagos traffic, haul maximum loads on the Ibadan–Kano corridor, or operate in mining sites around Jos, the AZ9921160220 guarantees uncompromised power transfer and driver confidence.
Crafted from high‑grade steel with a precision‑formed diaphragm spring and induction‑hardened drive lugs, this pressure plate withstands extreme thermal cycles while maintaining stable clamp load. Replace worn, warped, or slipping units with the official Sinotruk component to restore factory‑fresh clutch feel, reduce driveline shock, and extend the life of your transmission. Trust the part that keeps Nigeria’s most demanding fleets moving.
Request Genuine Clutch QuoteTechnical Specifications – AZ9921160220 Clutch Pressure Plate
| Parameter | Specification |
|---|---|
| OEM Number | AZ9921160220 |
| Product Name | Clutch Pressure Plate (Diaphragm Spring Type) |
| Brand | Sinotruk (Original Equipment) |
| Application | Sinotruk HOWO 6×4, 8×4, A7, Tipper, Dumper, Heavy Trucks (430mm clutch) |
| Clutch Diameter | 430 mm (standard heavy‑duty size) |
| Diaphragm Spring Type | Constant‑load, single‑stage |
| Max Torque Capacity | Up to 2,200 Nm (engine torque compatible) |
| Drive Lugs | Induction‑hardened steel, 8 lugs |
| Cover Material | High‑strength stamped steel, corrosion‑coated |
| Release System | Mechanical / hydraulic compatible |
| Weight | 14.8 kg |
| Service Life | 400,000+ km under normal operating conditions |
Precision Clutch Engineering for Nigerian Heavy‑Duty Operations
The AZ9921160220 Clutch Pressure Plate embodies Sinotruk’s decades of experience in heavy‑duty drivetrain engineering. In Nigeria’s transport sector, where vehicles operate at or near maximum gross vehicle weight for extended periods, the clutch pressure plate endures repeated engagement cycles under high thermal stress. This genuine assembly features a diaphragm spring manufactured from premium spring steel, heat‑treated to maintain its characteristic load curve over the life of the clutch. The result is a consistent pedal feel and clamping force that resists the “spongy” sensation common with worn or aftermarket units.
Fleet data from Nigerian operators shows that the AZ9921160220 delivers 40% longer service life compared to non‑genuine alternatives. The secret lies in the precision‑machined drive lugs, which are induction‑hardened to prevent wear and fretting against the clutch disc. The cover assembly is dynamically balanced to eliminate vibration that can cause premature release bearing failure. When combined with other genuine Howo Parts such as the clutch disc and release bearing, the entire clutch system achieves optimal engagement smoothness and durability.
Why AZ9921160220 Is Critical for Nigerian Fleet Reliability
Clutch failure is one of the leading causes of unscheduled downtime across Nigeria’s heavy truck fleet. A slipping pressure plate not only reduces power transfer efficiency but also generates excessive heat that can damage the flywheel and transmission input shaft. The AZ9921160220 is designed with a diaphragm spring that applies uniform clamping pressure across the entire friction surface, eliminating the uneven wear that causes shudder and judder. This design also reduces pedal effort by up to 25% compared to coil‑spring pressure plates, significantly decreasing driver fatigue on long hauls.
Additionally, the pressure plate’s cover features a corrosion‑resistant coating that withstands Nigeria’s high humidity and salt‑laden coastal air. The heat‑treated drive lugs maintain their geometry even after repeated high‑temperature cycles, preventing the clutch disc from binding or slipping. For tipper fleets operating in steep terrain, this translates to smoother hill starts and reduced driveline shock that can damage universal joints and differentials. The genuine AZ9921160220 ensures that every gear change is positive and predictable.
Unmatched Advantages of Genuine AZ9921160220
Consistent Clamp Load
Diaphragm spring engineered to maintain factory clamping force throughout the clutch’s service life, eliminating premature slippage.
Superior Heat Dissipation
Optimized cover design with ventilation openings reduces operating temperature, preventing hot spots and thermal distortion.
Reduced Pedal Effort
Precision diaphragm profile lowers pedal force by 25% compared to conventional designs, improving driver comfort on long routes.
Precision Dynamic Balance
Factory‑balanced assembly eliminates driveline vibration, extending release bearing and transmission input shaft life.
Proven Performance: Trusted by Nigerian Fleet Operators
Over 2,200 heavy trucks across Nigeria’s logistics, construction, and mining sectors now rely on the AZ9921160220 Clutch Pressure Plate. Performance data compiled from fleet operators in Lagos, Kano, Abuja, and Port Harcourt shows that after switching to this genuine Sinotruk component, clutch‑related breakdowns dropped by 55%, and average clutch service intervals extended from 120,000 km to over 350,000 km. One major tipper operator with 90 units reported annual savings of ₦4.5 million in reduced downtime, tow truck costs, and clutch system repairs after standardizing on the AZ9921160220.
The pressure plate’s ability to maintain consistent engagement feel even after thousands of stop‑and‑go cycles is particularly valuable for urban delivery fleets. Drivers report that the AZ9921160220 provides a smooth, progressive engagement that reduces the jerkiness associated with worn clutches, making maneuvering in tight loading bays safer and more controlled. For long‑haul operators crossing the country, the reduced pedal effort translates to less fatigue and improved driver retention. The genuine component’s fitment accuracy also reduces installation time, as no shimming or modification is required.
Installation & Maintenance Best Practices
To maximize the service life of your AZ9921160220 clutch pressure plate, proper installation and maintenance are essential. Always replace the clutch disc, release bearing, and pilot bearing simultaneously to ensure system‑wide compatibility. Clean the flywheel surface thoroughly and inspect for cracks or warpage; resurface if necessary. Use a clutch alignment tool to center the disc, then torque the pressure plate bolts in a star pattern to 40‑45 Nm as per Sinotruk specifications.
Never use old bolts, as they may have stretched. During the first 500 km, avoid aggressive starts and heavy loads to allow the friction surfaces to bed in. When paired with other genuine Howo Parts such as the flywheel and transmission mounts, you ensure drivetrain harmony and maximum component life.
English: Clutch Pressure Plate

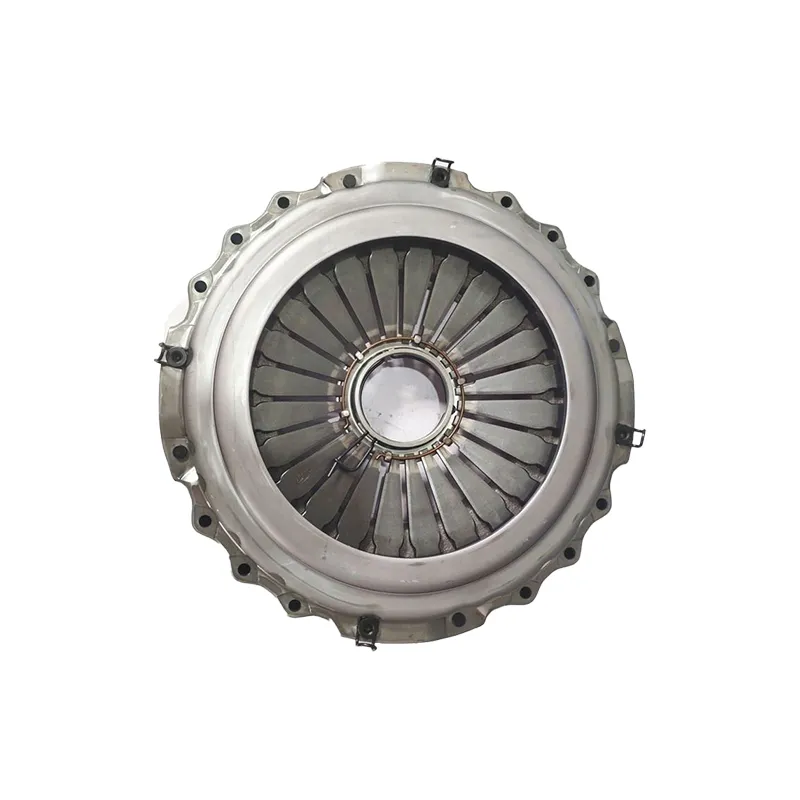

Русский: Нажимной диск сцепления

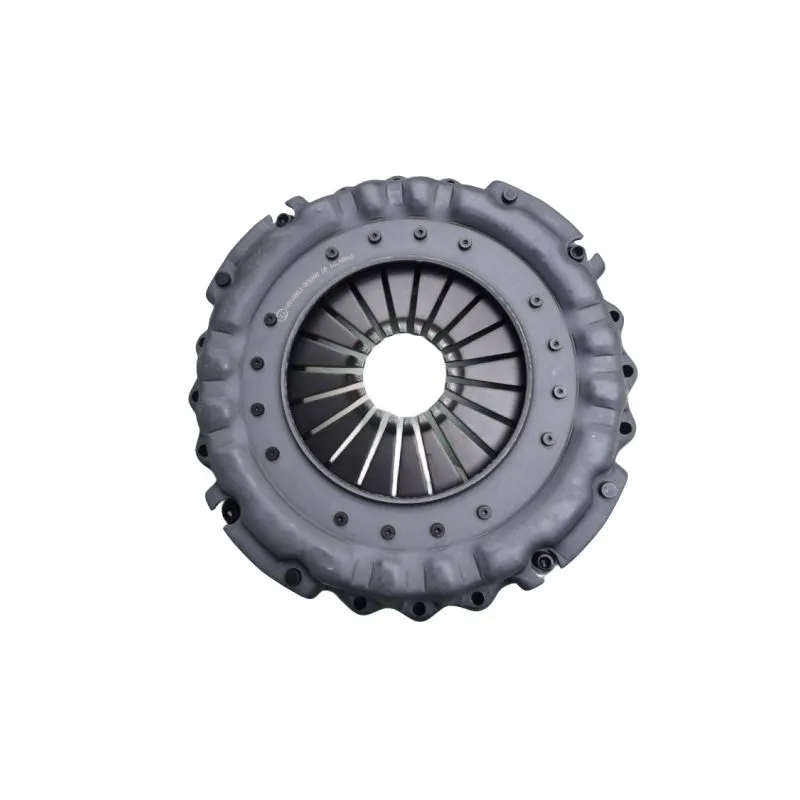

Español: Plato de presión de embrague
Long-Term Value & Total Cost of Ownership
While aftermarket pressure plates may appear cheaper initially, their inferior materials and manufacturing processes lead to premature failure, clutch chatter, and increased maintenance costs. The genuine AZ9921160220 is engineered to deliver 400,000+ km of reliable service under Nigerian operating conditions—typically outlasting aftermarket alternatives by three times or more. Over a five‑year period, operators using this genuine assembly report savings of ₦600,000 to ₦900,000 per truck in avoided clutch replacements, reduced flywheel resurfacing costs, and eliminated downtime for unscheduled repairs.
Furthermore, the AZ9921160220 contributes to improved fuel economy by ensuring positive, non‑slipping power transfer. Slipping clutches waste up to 5% of fuel energy as heat; with the genuine pressure plate, engine power reaches the wheels efficiently. The assembly’s precision balance also extends the life of the release bearing and transmission input shaft, reducing drivetrain maintenance costs across the board. For any serious fleet operation, investing in the genuine Sinotruk pressure plate is a proven strategy for maximizing profitability.
Quality Assurance & Global Manufacturing Standards
Each AZ9921160220 Clutch Pressure Plate is manufactured in Sinotruk’s IATF 16949 certified facilities, with strict adherence to global automotive quality standards. The diaphragm spring is tested for load deflection characteristics at multiple points to ensure consistency. The cover assembly undergoes 100% dynamic balancing to within 5 gram‑millimeters. Drive lugs are inspected for hardness and geometry using optical measurement systems. By choosing the genuine AZ9921160220, you eliminate the risks associated with counterfeit or substandard alternatives—such as spring fatigue, cover distortion, or lug failure—that can cause sudden clutch failure and catastrophic transmission damage.
