VG1500070051 Sinotruk Oil Filter Base: Unbreakable Engine Lubrication & Ultimate Filtration Security for Nigerian Howo Trucks

Why the Sinotruk Oil Filter Base VG1500070051 Is Critical for Nigerian Howo Engines

Engine oil is the lifeblood of any diesel engine, and the oil filter base is the gateway that directs unfiltered oil to the filter and returns clean oil to the engine. The VG1500070051 base is a one-piece aluminum casting that mounts directly to the engine block, featuring a threaded center post for the spin-on filter and an internal bypass valve that opens when the filter becomes clogged, ensuring continuous oil flow. For Nigerian trucks operating in extreme heat and dusty environments, a cracked or warped filter base causes oil leaks, pressure loss, and eventual engine seizure.

Fleet owners who have replaced damaged bases with genuine VG1500070051 report zero oil seepage and stable oil pressure even after 200,000 km. The precision-machined sealing face ensures that the filter gasket seats perfectly, eliminating the common problem of oil dripping down the side of the engine. Investing in this genuine component protects your WD615 or D10 engine from premature wear.

Precision Casting for Extreme Durability

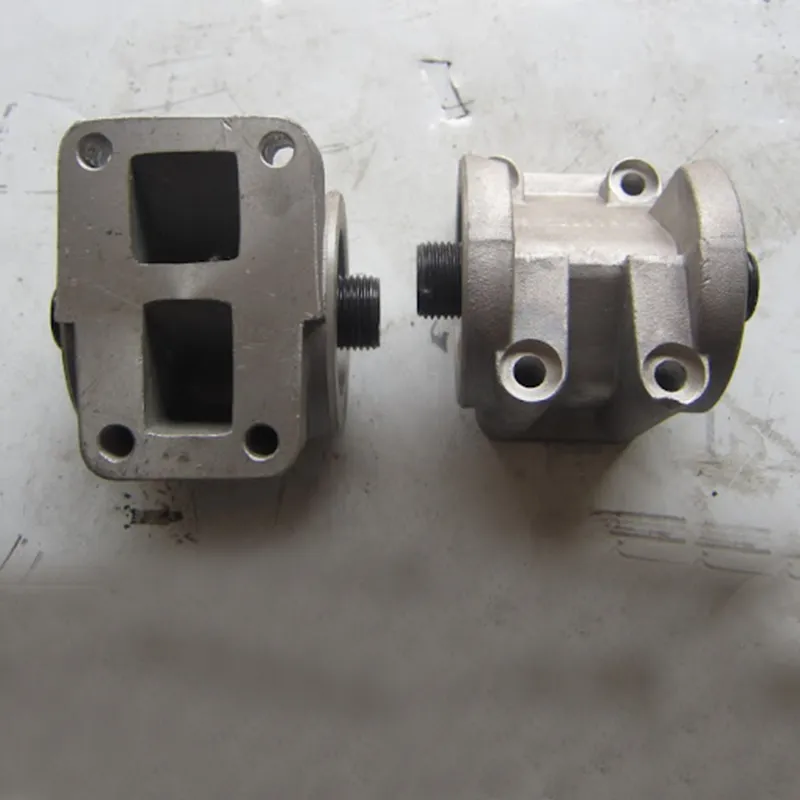

The VG1500070051 oil filter base is manufactured using high-pressure die casting from A380 aluminum alloy, known for its strength, thermal conductivity, and corrosion resistance. After casting, the part undergoes CNC machining of the filter sealing surface (flatness tolerance 0.05 mm), the thread for the filter (M20 x 1.5 standard), and the two mounting bolt holes. The internal oil passages are deburred and pressure-tested to 10 bar to ensure no casting porosity or leaks. Unlike aftermarket bases made from recycled aluminum with rough machining, the genuine base provides a perfect seal every time.

The base also incorporates a factory-calibrated bypass valve set to open at 2.5 bar differential pressure. This protects the engine if the filter becomes clogged, allowing unfiltered but still flowing oil to reach bearings. Aftermarket bases often omit this valve or use incorrect spring rates, leading to either no bypass (engine starvation) or bypass too early (dirty oil circulates). Genuine VG1500070051 ensures that the valve operates exactly as Sinotruk engineers intended.

Cost-Effective Maintenance with Genuine Howo Parts

Replacing a cracked or leaking oil filter base with a genuine Howo Parts VG1500070051 is a straightforward job that prevents catastrophic engine failure. A leaky base can lose several liters of oil per week, going unnoticed until the low oil pressure warning light flashes – often too late. The cost of a new base is minimal compared to an engine rebuild or replacement. Many Nigerian workshops now replace the base as a preventive measure during major overhauls, especially on trucks that have exceeded 500,000 km.

Additionally, the genuine base includes a new bypass valve and sealing O-rings, eliminating the need to transfer old components. This reduces labor time and ensures that all wear parts are renewed. Fleet operators who have standardized on VG1500070051 report fewer unscheduled oil leaks and lower oil consumption across their fleet.

Technical Specifications: Sinotruk Oil Filter Base (VG1500070051)

Parameter	Specification
OEM Number	VG1500070051
Part Name	Oil Filter Base / Oil Filter Housing
Brand	Sinotruk (OEM Genuine)
Material	A380 aluminum alloy, high-pressure die cast
Surface Finish	Shot-blasted, clear anodized
Filter Thread	M20 x 1.5 (standard spin-on filter)
Bypass Valve Setting	2.5 bar ±0.2 bar
Mounting Bolts	2 x M8 (included, 8.8 grade)
Torque Spec	25–30 Nm
Oil Port Threads	Inlet/Outlet: M22 x 1.5 (for OEM hoses)
Temperature Range	-40°C to +150°C
Compatible Engines	Sinotruk WD615, D10, D12, D25 series
Compatible Models	Howo 6X4, 8X4, Dump Trucks, Tractor Heads
Service Life	500,000+ km (no cracking)
Packaging	Foam-lined box, includes new O-rings and bolts

The VG1500070051 oil filter base is a direct replacement for the original equipment on all Howo trucks with WD615, D10, or D12 engines. It is located on the engine block, typically near the oil cooler. When replacing, always use new O-rings and torque the bolts to specification to avoid distortion.

Signs of a Failing Oil Filter Base

Common symptoms of a damaged VG1500070051 base include: oil puddles under the engine after parking, oil residue on the engine block below the filter, low oil pressure reading on the dashboard, and visible cracks or porosity around the mounting flange. Also, if the filter is difficult to remove or cross-threads easily, the base’s threads may be damaged.

To inspect, clean the area thoroughly, then run the engine and look for fresh oil seepage. Use a mirror to check the underside of the base. Any sign of wetness indicates a leaking gasket or cracked casting. Replacing the base with a genuine VG1500070051 eliminates these leaks and restores oil pressure integrity.

Compatibility Across Sinotruk Howo Engine Families

The VG1500070051 base is used on the majority of Sinotruk diesel engines found in Nigerian Howo trucks. This includes the legendary WD615 series (Euro II/III), the D10 (Euro II/III), the D12, and the newer D25 engines. It is also compatible with some Steyr-based engines that share the same oil filter housing design. However, always verify the bolt pattern and port locations before ordering, as later engines may have an integrated oil cooler base.

If your truck has an oil cooler mounted between the engine block and the filter base, you will need additional gaskets. The VG1500070051 is designed for direct-mount applications. For cooler-equipped engines, a different base may be required. Consult your dealer with your engine serial number.

Installation Best Practices for Maximum Life

To install the new VG1500070051 base: drain the engine oil, remove the old filter, unbolt the old base, clean the engine block mounting surface thoroughly, install new O-rings (supplied), apply a thin film of clean engine oil to the O-rings, position the new base, hand-tighten the two M8 bolts, then torque to 25–30 Nm in a cross pattern. Install a new oil filter (hand-tighten plus 3/4 turn), refill with oil, start the engine, and check for leaks. Run for a few minutes, then re-check oil level.

Many Nigerian mechanics have found that using a torque wrench is critical – over-tightening can crack the aluminum base, while under-tightening causes leaks. Also, never reuse old O-rings, as they harden and lose sealing ability. Genuine VG1500070051 includes fresh O-rings and bolts, simplifying the job.

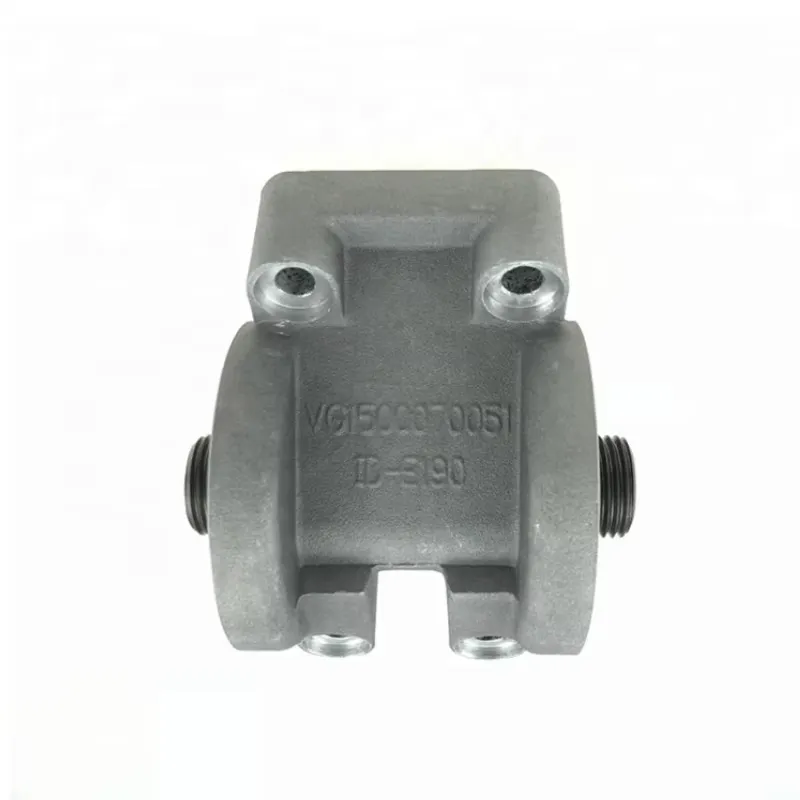

Counterfeit oil filter bases are common. Fakes often have rough casting surfaces, incorrect thread pitch, no bypass valve, or use inferior aluminum that cracks under heat cycles. Genuine VG1500070051 bases have a smooth anodized finish, laser-etched part number, and a visible bypass valve under the filter mount. The packaging includes a Sinotruk hologram and installation instructions.

When you purchase from authorized distributors of Howo Parts, you receive the exact base used in Sinotruk’s engine assembly line. Your engine’s oil pressure and filtration depend on genuine components.

In summary, the Sinotruk Oil Filter Base VG1500070051 is a critical component that ensures clean oil circulates through your engine under all conditions. Its precision casting, integrated bypass valve, and exact fitment make it the best choice for Nigerian fleet operators who demand reliability.

By replacing a cracked or leaking base with this genuine OEM part, you eliminate oil leaks, maintain stable oil pressure, and extend engine life. Don’t let a failed filter base destroy your engine – order the VG1500070051 today and protect your investment.

Clean oil, longer engine life. The VG1500070051 oil filter base is available now across Nigeria. Always insist on genuine Howo Parts for uncompromised lubrication performance.
