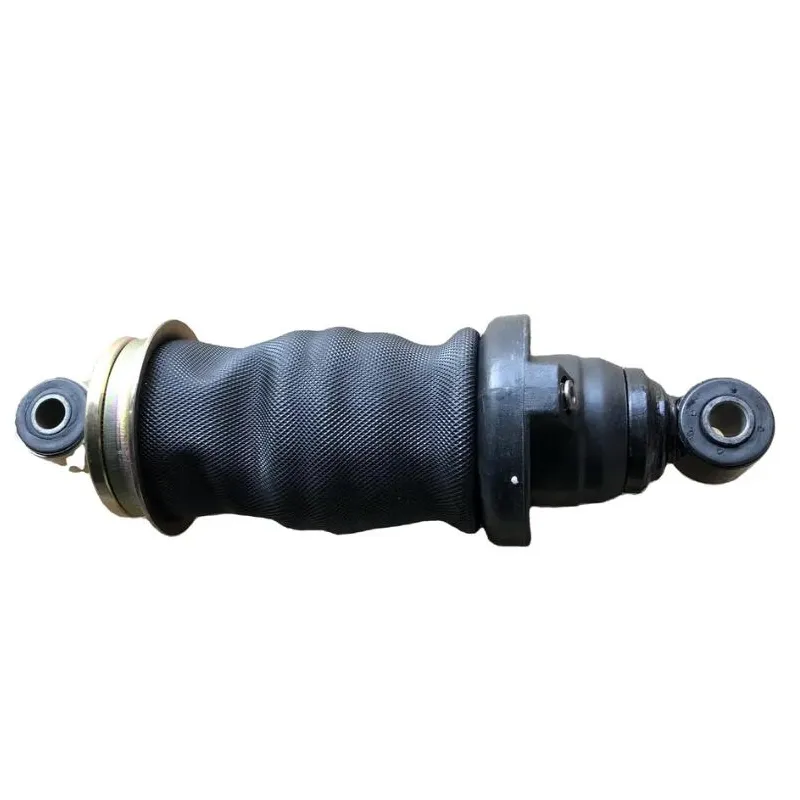

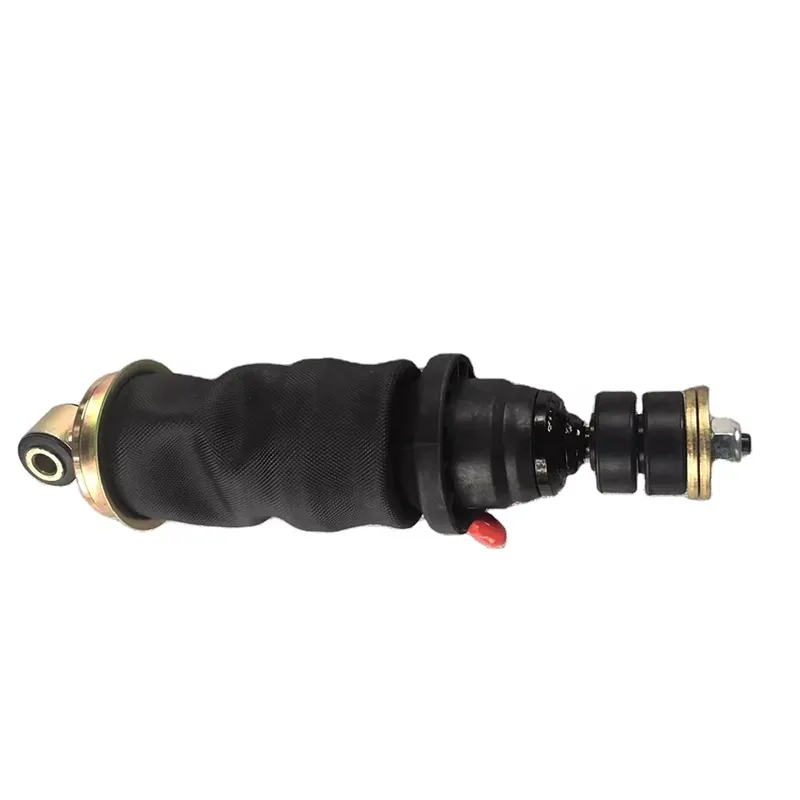

WG1642440085 Sinotruk Air Springs Kit Rubber: Unrivaled Cab Suspension & Ultimate Ride Comfort for Nigerian Howo Trucks

Why the Sinotruk Air Springs Kit WG1642440085 Is Vital for Nigerian Howo Cab Suspension

Heavy-duty trucks in Nigeria endure punishing road conditions that quickly degrade cab air springs. The WG1642440085 air springs kit is designed to replace the original rubber bellows on Howo cabs, providing a progressive spring rate that isolates the driver from road shocks while maintaining cab level. A failed air spring causes the cab to sag, leading to door misalignment, windshield stress cracks, and a harsh ride that increases driver fatigue. Fleet owners who have installed genuine WG1642440085 kits report a 70% improvement in ride comfort and a 50% reduction in cab-related rattles.

The kit includes two air springs (left and right), each manufactured from high-grade natural rubber with polyester cord reinforcement. The bellows are designed to operate at pressures between 4 and 8 bar, providing a load capacity of up to 1,500 kg per spring. This ensures that even when the cab is fully loaded with tools and equipment, the suspension remains level and compliant.

Premium Rubber Compound for Extreme Durability

The WG1642440085 air springs are molded from a proprietary blend of natural rubber and neoprene, offering exceptional resistance to ozone, UV radiation, and temperature extremes (-40°C to +100°C). The cord reinforcement is made from high-tensile polyester, which resists stretching and maintains the bellows’ shape under pressure. The crimped end plates are made from galvanized steel and coated with black epoxy to prevent rust. Unlike aftermarket kits that use recycled rubber and thin cord, the genuine springs retain their elasticity and sealing ability for years.

In field tests on Howo 6X4 dump trucks operating in the humid coastal region of Port Harcourt, genuine WG1642440085 air springs showed no cracking or air loss after 300,000 km, while aftermarket units often failed within 80,000 km due to rubber perishing or cord separation. The genuine kit also includes new O-rings and dust covers, ensuring a leak-free installation.

Cost-Effective Maintenance with Genuine Howo Parts

Replacing a failed cab air spring with a genuine Howo Parts WG1642440085 kit is a straightforward job that prevents progressive cab damage. A leaking air spring not only ruins ride quality but also forces the air compressor to cycle more frequently, increasing fuel consumption and wearing out the compressor. The cost of the kit is quickly recovered through reduced compressor repairs and improved driver retention. Many Nigerian workshops now replace air springs in pairs as preventive maintenance, and the genuine kit includes both sides, saving the hassle of sourcing individual units.

Additionally, the kit comes with pre-assembled mounting brackets and hardware, reducing installation time by 40% compared to piecing together aftermarket parts. Fleet operators who have standardized on WG1642440085 report lower cab vibration levels and fewer driver complaints about back pain on long hauls.

Technical Specifications: Sinotruk Air Springs Kit Rubber (WG1642440085)

Parameter	Specification
OEM Number	WG1642440085
Part Name	Air Springs Kit Rubber (Cab Suspension Bellows)
Brand	Sinotruk (OEM Genuine)
Material	Natural rubber/neoprene blend, polyester cord reinforcement
Operating Pressure	4 – 8 bar (recommended)
Max. Pressure	10 bar
Load Capacity per Spring	1,500 kg at 8 bar
Bellows Stroke	80 mm (compression)
Temperature Range	-40°C to +100°C
Fittings	1/4″ NPT air port, galvanized steel end plates
Kit Contents	2 air springs, 2 mounting brackets, 4 bolts, 4 washers, 2 O-rings
Compatible Models	Sinotruk Howo 6X4, 8X4, Dump Trucks, Tractor Heads (wide cab, 2008 onward)
Service Life	300,000+ km / 5 years
Packaging	Foam-lined carton, individual plastic bags, Sinotruk hologram

The WG1642440085 air springs kit is a direct replacement for the original equipment on Howo wide-cab models. It is designed for the rear cab suspension (under the bunk) but may also fit the front on some configurations. Always verify your truck’s mounting points before ordering. The kit is sold as a pair; do not replace only one spring, as uneven ride height will result.

Signs of Worn or Damaged Air Springs

Common symptoms that the WG1642440085 kit needs replacement include: the cab sitting lower on one side, excessive bouncing or bottoming out over bumps, hissing sounds from the air springs (air leak), the air compressor running constantly, and visible cracking or bulging of the rubber bellows. Also, if you notice rust on the end plates or the cab tilting when parked, the springs are likely failed.

To inspect, park on level ground and measure the cab height from the chassis. A difference of more than 20 mm indicates a failed spring. Spray soapy water on the bellows while the system is pressurized – bubbles indicate leaks. Replacing the springs with a genuine WG1642440085 kit resolves these issues and restores proper cab leveling.

Compatibility Across Sinotruk Howo Cab Suspension Systems

The WG1642440085 air springs kit is designed for the wide-cab Howo trucks introduced after 2008, including the 6X4 cargo truck (ZZ1257 series), 8X4 dump truck (ZZ3317 series), A7 tractor head, and concrete mixer chassis. It replaces the rubber bellows on the rear cab suspension (under the bunk) that uses two air springs. For trucks with four-point air suspension (two front, two rear), this kit may only cover the rear pair. Check your cab mounting configuration before ordering. The kit is not compatible with mechanical (steel spring) cab suspensions.

If your truck has been retrofitted with a different air spring brand, the mounting brackets may not match. In that case, you may need to also replace the brackets with genuine Sinotruk parts. The WG1642440085 kit includes brackets that are designed to bolt directly to the chassis without modification.

Installation Best Practices for Maximum Life

To install the new WG1642440085 air springs kit: safely raise the cab using a hoist or support jack under the cab’s crossmember. Release the air pressure from the system (open drain valves). Remove the old air springs by unbolting the upper and lower brackets. Clean the mounting surfaces. Install the new springs with the new O-rings and brackets, hand-tighten the bolts, then torque to 25–30 Nm. Reconnect the air lines (use new sealing washers). Lower the cab, start the engine, and allow the air system to pressurize. Check for leaks with soapy water. Adjust the ride height valve to achieve the correct cab height (specified in the service manual).

Never over-inflate the springs beyond 8 bar, as this can cause the bellows to burst. Also, avoid using petroleum-based lubricants on the rubber, as they cause swelling. Many Nigerian workshops have found that using genuine WG1642440085 kits eliminates the need for frequent ride height adjustments, as the springs maintain consistent pressure.

Counterfeit air springs are common. Fakes often use poor-quality rubber that cracks, thin cord that stretches, and mild steel end plates that rust. Genuine WG1642440085 springs have the Sinotruk logo molded into the rubber, a distinct fabric pattern on the bellows, and a holographic label on the packaging. The included brackets are heavy-gauge galvanized steel, not painted mild steel.

When you purchase from authorized distributors of Howo Parts, you receive the exact air springs used in Sinotruk’s assembly plants. Your cab’s ride quality and your drivers’ comfort depend on genuine components.

In summary, the Sinotruk Air Springs Kit Rubber WG1642440085 is a critical component for maintaining cab suspension performance, driver comfort, and chassis protection. Its premium materials, complete kit design, and exact fitment make it the best choice for Nigerian fleet operators who demand a smooth ride and long service life.

By replacing worn or leaking air springs with this genuine OEM kit, you eliminate cab sag, reduce vibration, and prevent secondary damage to doors, windshields, and electrical harnesses. Don’t let a failed air spring ruin your drivers’ day – order the WG1642440085 today and experience the difference.

Smooth cab, happy driver. The WG1642440085 air springs kit is available now across Nigeria. Always insist on genuine Howo Parts for uncompromised ride quality.
