Genuine Sinotruk Clutch Booster Pump WG9114230025 – Unmatched Hydraulic Assist & Unstoppable Shift Performance

Engineering Excellence Behind the WG9114230025 Clutch Booster Pump

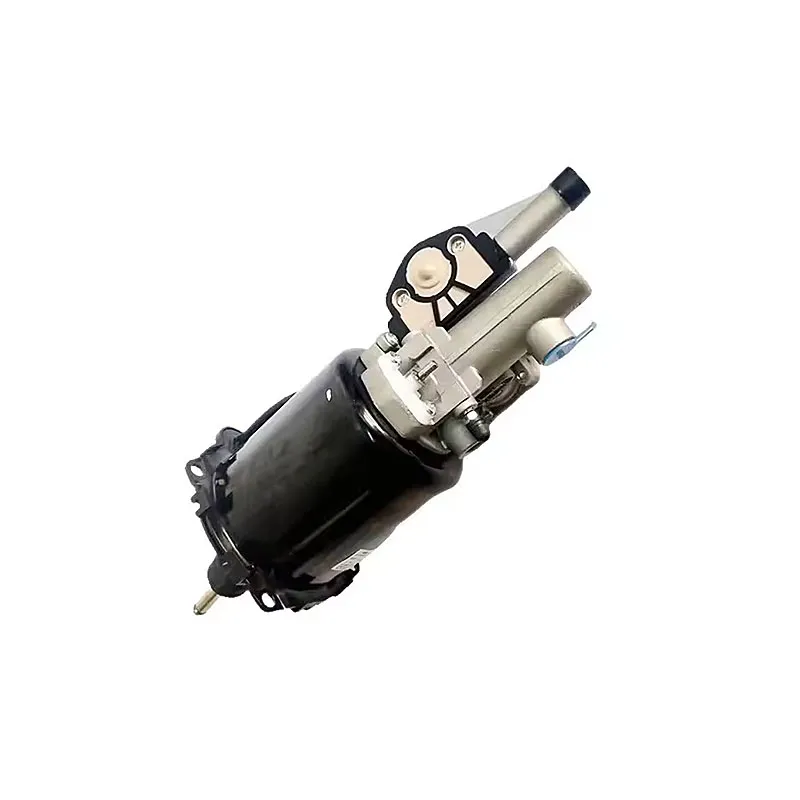

The WG9114230025 clutch booster pump is a sophisticated device that uses compressed air to amplify the force applied to the clutch master cylinder, reducing the physical effort required by the driver. The unit consists of a pneumatic cylinder that receives air from the vehicle’s brake system, a hydraulic master cylinder that converts the amplified force into hydraulic pressure, and a control valve that regulates air flow to ensure a smooth, proportional assist. This precision engineering results in a clutch pedal that feels light and predictable, yet provides full control over engagement and disengagement.

In a typical Howo or Sinotruk heavy‑duty truck, the clutch pedal effort can be substantial — often exceeding 150 N — which can lead to driver fatigue, especially in congested urban traffic. The WG9114230025 booster reduces this effort by up to 60%, making it significantly easier to modulate the clutch and reducing the strain on the driver’s left leg. This not only improves driver comfort but also reduces the risk of clutch‑related injuries and allows for more precise control during low‑speed maneuvers.

Nigerian operators often face extreme conditions, including high ambient temperatures, heavy loads, and frequent stop‑and‑go driving that can place exceptional demands on the clutch system. The WG9114230025 is engineered to withstand these challenges, with its anodized aluminum housing, high‑temperature‑resistant seals, and robust internal components that maintain consistent assist performance even after years of service. Its compact design allows for straightforward installation in the engine bay, and the unit is designed to be serviceable, with replaceable seals and O‑rings for extended life.

Technical Specifications – Clutch Booster Pump WG9114230025

Parameter	Specification
OEM Part Number	WG9114230025
Product Name	Clutch Booster Pump (pneumatic‑hydraulic assist)
Brand	Sinotruk (Genuine OEM)
Assist Type	Air‑assisted hydraulic
Max Air Pressure	8.0 bar (116 psi)
Hydraulic Port Thread	M10 x 1.0 (inlet/outlet)
Air Port Thread	G 1/4″ (BSP)
Booster Ratio	4.0:1 (nominal)
Housing Material	Anodised aluminum alloy
Seal Material	Nitrile (NBR), high‑temperature grade
Operating Temperature	-40°C to +85°C
Fluid Compatibility	DOT 3 / DOT 4 brake fluid
Weight	1.8 kg
Compatible Models	Howo A7, T7, C7H; Sinotruk heavy‑duty trucks with air brake systems
Replacement Interval	Inspect every 100,000 km; rebuild if leaking or reduced assist

Why the Genuine Sinotruk WG9114230025 Outperforms Aftermarket Boosters

Aftermarket clutch boosters often use lower‑grade aluminum, inferior seals, and poorly matched control valves that can lead to inconsistent assist, air leaks, or premature failure. The WG9114230025, by contrast, is manufactured to Sinotruk’s stringent OEM standards, with precision‑machined components, a hard‑anodised cylinder bore that resists wear, and a control valve that is pre‑calibrated for optimal response. Its nitrile seals are specifically formulated to resist the degrading effects of brake fluid, compressor oil, and moisture, ensuring leak‑free operation over the long term.

Additionally, the WG9114230025 is designed as a direct replacement for the original equipment, with identical mounting dimensions, port locations, and pushrod geometry. This ensures a straightforward installation without the need for modifications or adaptations that can compromise the system’s reliability. By choosing the genuine Sinotruk WG9114230025, you guarantee that your clutch assist system performs as intended, providing the consistent, reliable assistance that reduces driver fatigue and protects the clutch from abuse.

Superior Materials for Harsh Environments

The aluminum housing is anodised to provide a hard, corrosion‑resistant surface, while the internal piston is coated with a low‑friction, wear‑resistant layer that extends service life. The seals are manufactured from a high‑grade nitrile compound that maintains its elasticity across a wide temperature range, ensuring leak‑free operation even in the most extreme conditions.

Easy Identification and Fitment

The WG9114230025 is clearly marked with the Sinotruk logo and part number, allowing for quick verification of authenticity. Its mounting hole spacing and port orientations match the original equipment exactly, so you can install it without modifications. The unit is supplied with new O‑rings and sealing washers for a complete, hassle‑free replacement.

Explore the full catalogue of genuine Howo Parts available for your fleet, including clutch boosters, master cylinders, and hydraulic system components. The WG9114230025 clutch booster pump is a vital part of that ecosystem — and with Sinotruk’s original quality, you ensure effortless shifting and improved driver comfort for your truck.

Installation Best Practices for the WG9114230025 Clutch Booster Pump

Replacing a clutch booster pump should be performed by a qualified technician with the vehicle safely supported and the air system depressurised. Begin by disconnecting the hydraulic lines and air supply from the old unit, then remove the mounting bolts. Clean the mounting surface thoroughly, then install the new WG9114230025 booster, torquing the bolts to the manufacturer’s specification (typically 20‑25 N·m).

Reconnect the hydraulic lines, using new copper washers to ensure leak‑free connections, and connect the air supply line. Bleed the hydraulic system thoroughly, then pressurise the air system and check for leaks at all fittings. Test the clutch pedal feel; it should be noticeably lighter with smooth, progressive engagement. For Nigerian workshops, keeping a WG9114230025 in stock allows you to quickly address booster failures, improving driver satisfaction and reducing clutch wear.

Built for Nigeria – Uncompromised Clutch Assist for Demanding Operations

Nigeria’s heavy‑duty transport sector operates in some of the most challenging conditions in the world — with heavy traffic, poor roads, and extreme heat that can quickly fatigue drivers. The WG9114230025 clutch booster pump is engineered to meet these challenges, providing the pneumatic‑hydraulic assist needed to reduce pedal effort and make driving more comfortable, especially in stop‑and‑go conditions.

Moreover, the WG9114230025 is compatible with the full range of Sinotruk and Howo air‑brake‑equipped trucks used in Nigeria, making it a versatile replacement part for mixed fleets. By choosing genuine Sinotruk clutch boosters, you improve driver retention, reduce the risk of clutch‑related injuries, and lower overall operating costs.

Enhance Your Clutch Feel with the Genuine WG9114230025

The WG9114230025 clutch booster pump is a transformative component that directly improves driver comfort, reduces fatigue, and extends the life of your clutch system. Its superior materials, precision engineering, and exact OEM fitment make it the only choice for professional fleet operators. By installing a genuine Sinotruk WG9114230025, you ensure that every shift is smooth, effortless, and reliable, keeping your drivers comfortable and productive.

Never compromise on clutch assist quality with inferior aftermarket boosters that can lead to inconsistent feel or premature failure. Insist on the genuine WG9114230025 — the clutch booster pump trusted by Nigeria’s leading fleet operators and workshops. With its proven durability and uncompromising quality, this component delivers the comfort and reliability that keep your business moving forward.

Genuine Sinotruk WG9114230025 – Comfort, reliability, and effortless shifting for every mile.
