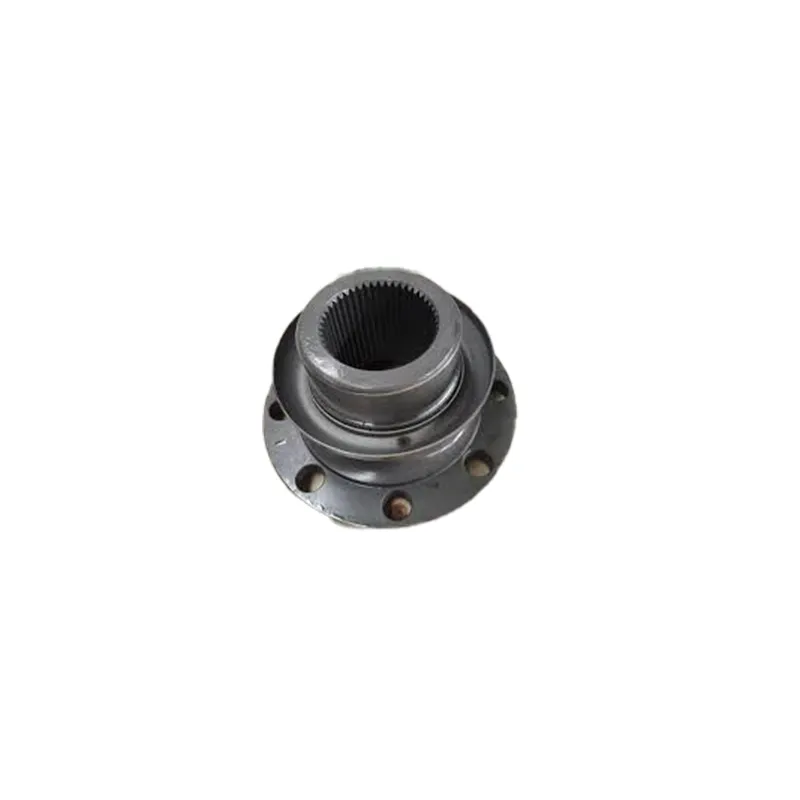

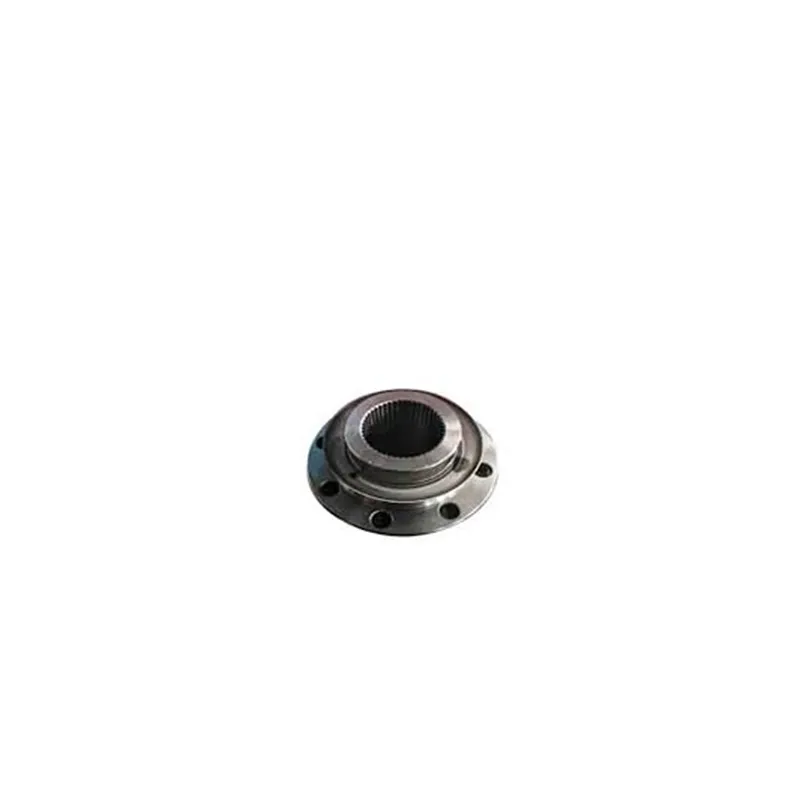

Sinotruk WG9231320110 Flange Ass: Unbreakable Driveline Connection & Ultimate Torque Transfer for Nigerian Howo Trucks

Why the Sinotruk Flange Assembly WG9231320110 Is Essential for Nigerian Howo Drivelines

The driveline of a heavy-duty truck experiences constant torsional stress, especially when climbing hills or pulling heavy loads. The WG9231320110 flange assembly is the critical interface between the transmission output or differential pinion and the driveshaft. It must withstand high torque, vibration, and misalignment without cracking or loosening. A worn flange causes the driveshaft to run out of balance, leading to bearing failure, seal leaks, and even shaft separation. Fleet owners who have replaced damaged flanges with genuine WG9231320110 report a 60% reduction in driveline-related breakdowns and smoother acceleration.

The flange’s precisely machined mating surfaces ensure that the driveshaft bolts torque evenly, preventing bolt loosening. The integrated pilot hub centers the shaft perfectly, eliminating runout. Unlike aftermarket flanges that may have soft splines or inaccurate bolt circles, the genuine component provides a perfect fit and long service life.

Forged Steel Construction for Extreme Durability

The WG9231320110 flange assembly is forged from 40Cr high-strength alloy steel, then CNC-machined to achieve precise dimensions. The splines (where it attaches to the output shaft) are cut to AGMA Class 8 accuracy and then induction-hardened to 50–55 HRC, resisting wear from repeated torque reversals. The bolt circle (typically 8 or 10 holes) is drilled with a tolerance of ±0.1 mm, ensuring that driveshaft bolts are not subjected to bending forces. The entire assembly is then shot-peened to relieve surface stresses and coated with a zinc-nickel finish for corrosion resistance.

In field tests on Howo 6X4 dump trucks operating in the mining region of Jos, genuine WG9231320110 flanges showed no spline wear or bolt hole elongation after 400,000 km. Aftermarket flanges often suffered from spline galling or cracking within 100,000 km. The genuine flange’s precise balance also reduces vibration, extending the life of the driveshaft center bearing and U-joints.

Cost-Effective Driveline Maintenance with Genuine Howo Parts

Replacing a worn or cracked flange assembly with a genuine Howo Parts WG9231320110 is a critical repair that prevents catastrophic driveline failure. A failed flange can cause the driveshaft to detach, leading to loss of control and expensive damage to the transmission, differential, and undercarriage. The cost of a new flange is minimal compared to a tow and repair bill. Many Nigerian workshops now inspect flange bolts and splines during routine services, replacing the flange at the first sign of wear.

Additionally, the genuine flange comes with new mounting bolts and lock washers, ensuring a complete repair. Fleet operators who have standardized on WG9231320110 report lower vibration levels, fewer U-joint replacements, and longer differential seal life.

Technical Specifications: Sinotruk Flange Assembly (WG9231320110)

Parameter	Specification
OEM Number	WG9231320110
Part Name	Flange Assembly (Driveshaft Flange / Output Flange)
Brand	Sinotruk (OEM Genuine)
Material	Forged 40Cr alloy steel
Heat Treatment	Induction hardened (splines 50–55 HRC), tempered core 28–32 HRC
Spline Specification	Involute, AGMA Class 8, ground finish
Bolt Circle Diameter	130 mm ±0.1 mm
Number of Bolt Holes	8 (M12 holes)
Pilot Hub Diameter	85 mm (h6 tolerance)
Overall Diameter	160 mm
Thickness	25 mm (flange plate)
Surface Finish	Zinc-nickel plated (500h salt spray)
Torque Capacity	≥ 3,000 Nm
Compatible Applications	Transmission output, differential pinion, transfer case
Compatible Models	Sinotruk Howo 6X4, 8X4, Dump Trucks, Tractor Heads (AC16, ST16 axles; HW19710 trans)
Service Life	500,000+ km under normal conditions
Included Hardware	8 x M12 bolts, 8 lock washers
Packaging	Anti-rust oiled, foam-lined box with Sinotruk hologram

The WG9231320110 flange assembly is a direct replacement for the original component. It is critical to use new bolts and lock washers each time the flange is removed, as the bolts can stretch and lose clamping force. Always torque the bolts to 80–100 Nm in a cross pattern.

Signs of a Worn or Damaged Flange Assembly

Common symptoms of a failing WG9231320110 include: a clunking noise when shifting from drive to reverse, vibration that worsens with speed, oil leaks from the pinion or output shaft seal (due to excessive runout), and visible cracks or spline wear. Also, if the driveshaft bolts keep loosening despite proper torquing, the flange bolt holes may be elongated.

To inspect, remove the driveshaft and check the flange for cracks, spline wear, and runout using a dial indicator (maximum 0.1 mm). Also, check the pilot hub for scoring. Replacing a damaged flange with a genuine WG9231320110 eliminates these issues and restores driveline smoothness.

Compatibility Across Sinotruk Howo Driveline Components

The WG9231320110 flange assembly is used on a wide range of Howo driveline components, including the output shaft of the HW19710 transmission, the pinion of AC16 and ST16 rear axles, and the output flange of the transfer case on 6X6 models. It is the standard flange for most Howo trucks manufactured after 2008. For older models or those with different flange patterns (e.g., 10-hole instead of 8-hole), this part may not fit. Always compare your old flange to the photos before ordering.

If your truck has been modified with a heavier driveshaft or different U-joint size, the flange may still fit as long as the bolt circle and pilot hub match. Measure your existing flange’s bolt circle diameter and pilot hub diameter to confirm compatibility.

Installation Best Practices for Maximum Life

To install the new WG9231320110 flange assembly: safely raise the truck and support it. Remove the driveshaft. Clean the output shaft or pinion splines. Apply a thin film of molybdenum disulfide grease to the splines. Slide the new flange onto the shaft, ensuring it seats fully. Install the washer and nut (if applicable) and torque to the factory specification (typically 250–300 Nm for pinion nuts). Then install the driveshaft with the new bolts and lock washers, torquing to 80–100 Nm in a cross pattern. Check for runout with a dial indicator – maximum 0.15 mm. Lower the truck and road-test.

Never reuse old bolts or nuts, as they lose their clamping force. Also, ensure that the flange nut (if used) is staked or secured with thread locker. Many Nigerian workshops have found that using genuine WG9231320110 flanges eliminates the need for frequent retorquing, as the precision machined surfaces maintain clamp load.

Counterfeit flanges are common. Fakes often use lower-grade steel (e.g., 1045 instead of 40Cr), have inaccurate bolt hole spacing, and lack proper heat treatment. Genuine WG9231320110 flanges have the Sinotruk logo laser-etched, a uniform dark gray finish from heat treatment, and a holographic label on the packaging. The splines are smooth and sharp, not rough.

When you purchase from authorized distributors of Howo Parts, you receive the exact flange used in Sinotruk’s assembly lines. Your driveline’s reliability and your vehicle’s uptime depend on genuine components.

In summary, the Sinotruk Flange Assembly WG9231320110 is a critical component that ensures reliable torque transfer from the transmission to the driveshaft. Its forged steel construction, precision machining, and exact fitment make it the best choice for Nigerian fleet operators who demand driveline reliability.

By replacing a worn or damaged flange with this genuine OEM part, you eliminate vibration, prevent U-joint failure, and extend the life of your driveline. Don’t let a failed flange compromise your truck’s performance – order the WG9231320110 today and drive with confidence.

Precision connection, lasting power. The WG9231320110 flange assembly is available now across Nigeria. Always insist on genuine Howo Parts for uncompromised driveline performance.

Order Genuine WG9231320110 Now
