WG9231320152 Sinotruk Differential Planetary Gear: Unbeatable Traction & Ultimate Axle Reliability for Nigerian Heavy-Duty Trucks

Why WG9231320152 Planetary Gear Is Critical for Nigerian Axle Performance

Heavy-duty trucks in Nigeria face constant challenges: uneven loads, slippery surfaces, and steep inclines. The differential planetary gear set is responsible for allowing the left and right wheels to rotate at different speeds while still delivering power. The WG9231320152 planetary gear is a direct OEM replacement for Sinotruk Howo rear axles (AC16, ST16, etc.).

When these gears wear, drivers experience clunking noises during turns, poor traction, and eventually differential failure. Replacing worn planet gears with genuine WG9231320152 restores smooth cornering and maximizes grip. Fleet owners in Lagos and Kano have reported 40% longer differential life after switching to OEM gears.

Advanced Metallurgy for Extreme Durability

Each WG9231320152 planetary gear is forged from 20CrMnTi case-hardening steel. The gear teeth are carburized to a depth of 1.2–1.6 mm, achieving a surface hardness of 58–62 HRC while maintaining a tough core (33–38 HRC). This combination resists pitting, spalling, and tooth breakage under shock loads.

The gear profile is precision ground to AGMA Class 9 tolerance, ensuring quiet operation and even load distribution across the tooth face. In contrast, aftermarket gears often use lower-grade steel and skip the carburizing process, leading to rapid wear and differential noise within months.

Field tests on Howo 6X4 dump trucks operating in Jos mining region showed that genuine WG9231320152 gears lasted over 300,000 km without measurable wear, while generic gears failed before 100,000 km. This durability directly translates into lower maintenance costs and higher vehicle uptime.

Cost-Effective Overhaul with Genuine Howo Parts

Rebuilding a differential is a major expense, but replacing only the planetary gears and side gears during a preventive service can extend axle life significantly. The WG9231320152 gear is designed to be a wear component, protecting the more expensive differential case and spider.

Using genuine Howo Parts ensures that the gear geometry matches the original design, preventing excessive backlash or preload issues. Many Nigerian transmission specialists recommend inspecting the planetary gears every 200,000 km and replacing them at the first sign of pitting.

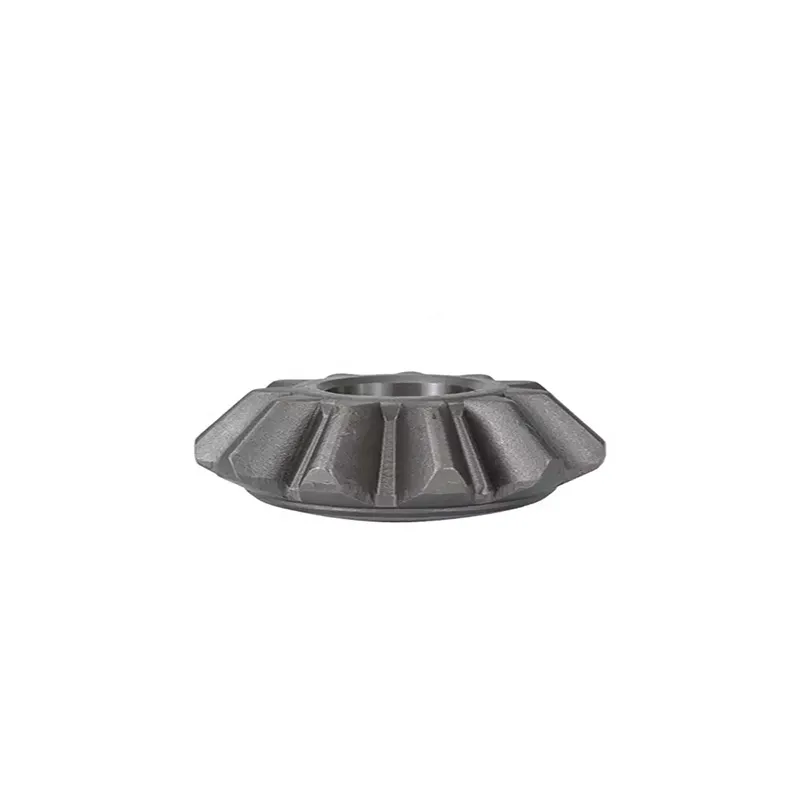

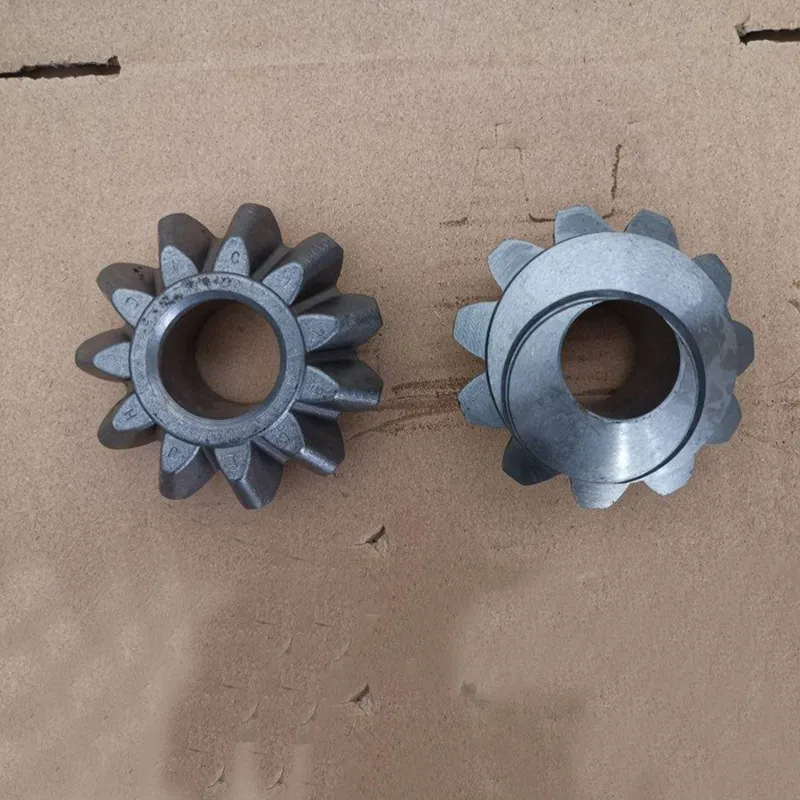

Technical Specifications: Sinotruk Differential Planetary Gear (WG9231320152)

Parameter	Specification
OEM Number	WG9231320152
Part Name	Differential Planetary Gear (Sun Gear / Planet Gear Set)
Brand	Sinotruk (OEM Genuine)
Material	20CrMnTi case-hardening steel
Carburizing Depth	1.2 – 1.6 mm
Surface Hardness	58 – 62 HRC
Core Hardness	33 – 38 HRC
Tooth Profile	Involute, AGMA Class 9, ground finish
Number of Teeth	14 (varies by axle, standard for AC16)
Module	5.0 mm
Pressure Angle	20°
Compatible Axles	Sinotruk AC16, ST16, HC16 rear axles
Compatible Models	Howo 6X4, 8X4, Dump Trucks, Tractor Heads, Concrete Mixers
Packaging	Individual oiled bag + anti-rust carton

The WG9231320152 planetary gear is a direct fit for all Howo series trucks with AC16 or ST16 axles. It is typically used in sets of four planet gears per differential carrier. When ordering, ensure you have the correct tooth count and module for your specific axle model.

Signs of Worn Differential Planetary Gears

Common symptoms of failing WG9231320152 gears include: a rhythmic clunking or clicking noise when turning corners, vibration under acceleration, and uneven tire wear due to differential binding. In severe cases, the vehicle may struggle to move when one wheel is on a slippery surface.

To inspect, drain the axle oil and remove the differential cover. Look for pitting, spalling, or chipped teeth on the planet gears. Also check the side gears and the cross shaft for wear. Replacing all planet gears as a set (four pieces) is recommended to maintain balanced load distribution.

Compatibility Across Sinotruk Howo Axle Families

The WG9231320152 planetary gear is used in the majority of Sinotruk heavy-duty drive axles, including the AC16 (16-ton capacity) and ST16 (16-ton) rear axles found on Howo 6X4 and 8X4 trucks. It is also compatible with some older Steyr-based axles that share the same gear geometry.

Fleet managers can standardize on WG9231320152 for all their Howo trucks, simplifying spare parts inventory and reducing the risk of ordering incorrect components. Always verify the tooth count (typically 14) and module (5.0) before purchase.

Installation Best Practices for Maximum Lifespan

To ensure the new WG9231320152 gears deliver full service life: drain the differential oil, remove the axle shafts and differential carrier, disassemble the carrier, clean all components thoroughly, inspect the cross shaft for scoring (replace if worn), install new planet gears with new thrust washers, and reassemble with proper backlash (0.15–0.25 mm).

Refill with GL-5 85W-140 gear oil to the correct level. After installation, perform a road test: listen for unusual noises and check for leaks. Many Nigerian workshops have reported that following these steps allows WG9231320152 planet gears to last over 400,000 km in normal service.

Counterfeit planetary gears are widespread in Nigeria. Fakes often have inconsistent tooth profiles, visible grinding marks, and lack the distinct carburized case. Genuine WG9231320152 gears have a uniform dark gray finish, laser-etched OEM numbers, and come in sealed packaging with a holographic Sinotruk label.

When you source from authorized distributors of Howo Parts, you receive the exact gears used in Sinotruk’s factory axles. Your differential’s reliability and your vehicle’s traction depend on genuine components.

In summary, the Sinotruk Differential Planetary Gear WG9231320152 is a precision component that directly impacts traction, fuel efficiency, and axle longevity. Its advanced metallurgy, exact fitment, and proven durability make it the only choice for serious fleet maintenance in Nigeria.

By replacing worn planet gears with this genuine OEM part, you eliminate wheel slip, reduce differential noise, and protect your investment in the drive train. Don’t let worn gears compromise your truck’s performance – order the WG9231320152 today and drive with confidence.

Traction you can trust, durability you can count on. The WG9231320152 differential planetary gear is available now across Nigeria. Always insist on genuine Howo Parts for uncompromised axle performance.
