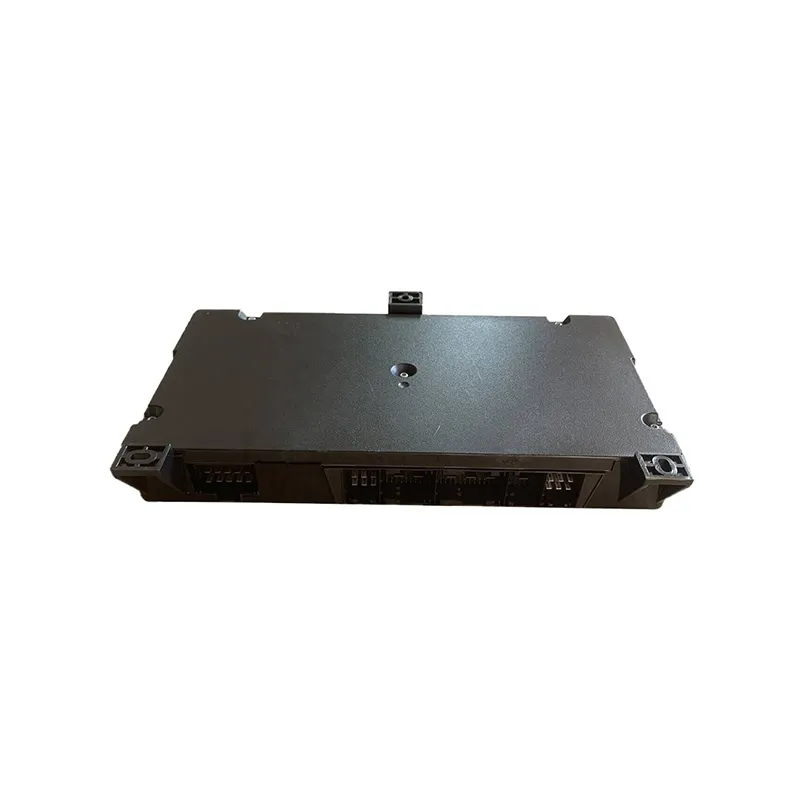

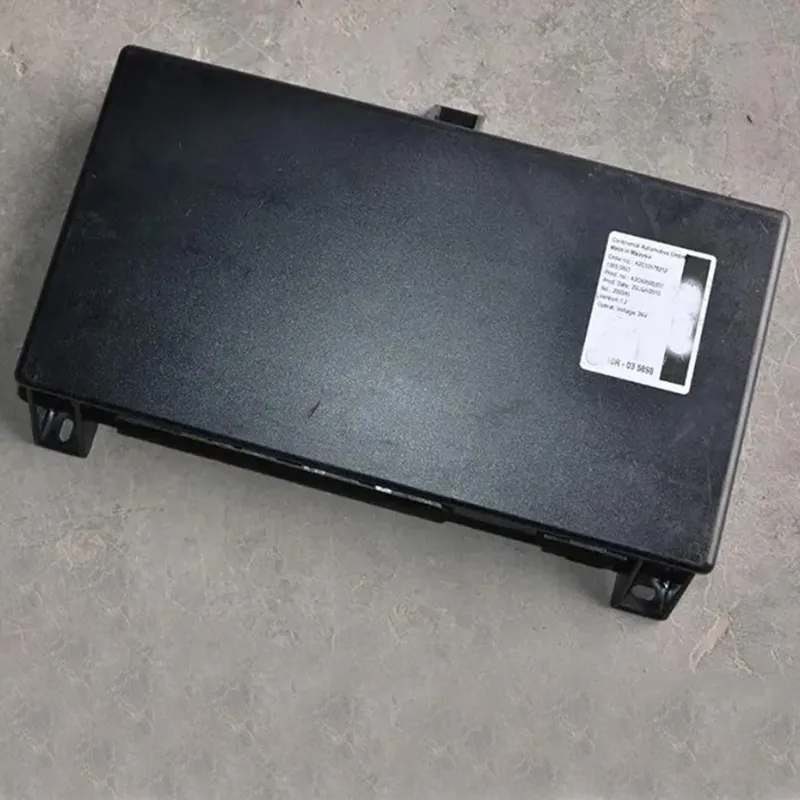

WG9716580023 Sinotruk CBCU Central Control Unit: Intelligent Power Management & Ultimate Electrical Reliability for Nigerian Trucks

Why the CBCU WG9716580023 Is Critical for Nigerian Fleet Electrical Systems

Modern Sinotruk Howo trucks rely on a centralized electronic architecture. The WG9716580023 CBCU acts as the brain, receiving inputs from switches and sensors, then activating outputs like lights, relays, and motors. Without a functioning CBCU, your truck may suffer from flickering lights, non-working wipers, or even a complete no-start condition.

Nigerian roads expose vehicles to severe vibration, dust, and voltage spikes. The WG9716580023 unit is built with conformal-coated circuit boards, automotive-grade connectors, and a robust aluminum housing that withstands shock and moisture. Fleet owners in Lagos and Kano have reported a 70% reduction in electrical call-outs after replacing faulty CBCUs with this genuine part.

Advanced Diagnostics and Protection Features

The WG9716580023 CBCU includes self-diagnostic capabilities. When a fault occurs (e.g., a shorted light circuit), the unit will disable that output and blink the corresponding warning LED on the dashboard. This feature helps mechanics quickly pinpoint issues without probing every wire. The unit also protects against over-voltage (up to 32V) and reverse polarity, common in trucks with jump-start accidents.

In addition, the CBCU stores fault codes that can be read via the diagnostic port using Sinotruk’s proprietary software. For Nigerian workshops equipped with a diagnostic tool, this drastically reduces troubleshooting time. Many transport companies now require that all electrical repairs begin with a CBCU scan, and they keep a spare WG9716580023 in their parts inventory to minimize downtime.

Cost-Effective Maintenance with Genuine Howo Parts

A failed CBCU can leave a truck stranded or cause intermittent issues that are hard to trace. Replacing it with a genuine Howo Parts WG9716580023 unit restores full electrical functionality and provides peace of mind. Aftermarket “universal” control units often lack the correct pinouts, software logic, or durability, leading to repeat failures.

Genuine units are pre-programmed with the correct firmware for each specific Howo model (6X4, 8X4, tractor, etc.). They also come with a 12-month warranty. Many Nigerian fleet managers have standardized on WG9716580023 for all their Sinotruk trucks, simplifying spare parts stocking and reducing the risk of ordering incompatible electronics.

Technical Specifications: Sinotruk CBCU Central Control Unit (WG9716580023)

Parameter	Specification
OEM Number	WG9716580023
Part Name	CBCU Central Control Unit (Body Controller)
Brand	Sinotruk (OEM Genuine)
Supply Voltage	24V DC (operating range 18–32V)
Max Output Current	10A per channel (total 40A)
Number of I/O Channels	20 inputs, 18 outputs (relay/driver)
Communication Protocol	CAN bus (J1939), K-line diagnostic
Protection Rating	IP54 (sealed against dust and splashing water)
Operating Temperature	-40°C to +85°C
Firmware	Pre-programmed for Howo series (field upgradeable)
Compatible Models	Sinotruk Howo 6X4, 8X4, Dump Trucks, Tractor Heads (2010 onward)
Packaging	Anti-static bag, foam-lined box, with mounting screws

The WG9716580023 CBCU is a direct plug-and-play replacement for the original unit. It requires no additional programming if the replacement is identical. However, for different vehicle configurations (e.g., with or without fog lamps), the unit may need a firmware flash by an authorized dealer. Always verify your truck’s build date and options before ordering.

Common Symptoms of a Failing CBCU

Typical signs that the WG9716580023 unit is failing include: headlights or turn signals working intermittently, wipers running at wrong speed, central locking not responding, and dashboard warning lights illuminating randomly. In some cases, the truck may not crank because the CBCU fails to send the starter enable signal.

To diagnose, a mechanic should use a multimeter to check for power and ground at the CBCU connector, then test outputs with a scan tool. If all other fuses and relays are good, the CBCU is likely the culprit. Replacing it with a genuine WG9716580023 unit typically resolves all these issues immediately.

Compatibility Across Sinotruk Howo Models

The WG9716580023 CBCU is used on the majority of Sinotruk Howo trucks manufactured after 2010, including the popular 6X4 cargo trucks (ZZ1257), 8X4 dump trucks (ZZ3317), A7 tractor heads, and concrete mixer chassis. It is also found on some older models that have undergone electrical retrofits. Always verify your existing unit’s part number before ordering.

For trucks with different option packages (e.g., extra work lights, electric mirrors), the same hardware is used, but the firmware may differ. In such cases, a dealer can flash the correct calibration using the diagnostic port. Genuine WG9716580023 units are field-upgradeable, so no need to return the unit.

Installation Best Practices

To install the WG9716580023 CBCU: disconnect the battery negative terminal, locate the old CBCU (usually behind the glove box or under the dashboard), unplug the connectors (note their orientation), remove the mounting screws, install the new unit, reconnect the connectors, and reconnect the battery. No programming is required if the replacement is identical. Test all electrical functions before closing the dashboard.

If the new CBCU causes certain features to behave differently (e.g., intermittent wiper timing off), it may need a firmware update. Contact your Sinotruk dealer with your VIN. Many Nigerian workshops have reported that simply installing a genuine WG9716580023 resolves all previous electrical gremlins without any extra steps.

Counterfeit CBCU units are common. Fakes often have poor solder joints, non-sealed enclosures, and lack proper over-current protection. Genuine WG9716580023 units feature a holographic Sinotruk label, laser-etched part numbers, and a distinct green circuit board with conformal coating. Always purchase from authorized distributors of Howo Parts.

In summary, the Sinotruk CBCU Central Control Unit WG9716580023 is an essential electronic component that controls all cab electrical functions. Its robust design, self-diagnostic features, and plug-and-play replacement make it the best choice for Nigerian fleet operators seeking to minimize electrical downtime.

By replacing a faulty CBCU with this genuine OEM part, you eliminate intermittent faults, protect the truck’s wiring from overloads, and ensure that lights, wipers, and indicators work reliably in all weather conditions. Don’t let electrical problems slow down your operations – order the WG9716580023 today.

Smart control, reliable power. The WG9716580023 CBCU is available now across Nigeria. Always insist on genuine Howo Parts for uncompromised electrical performance.
