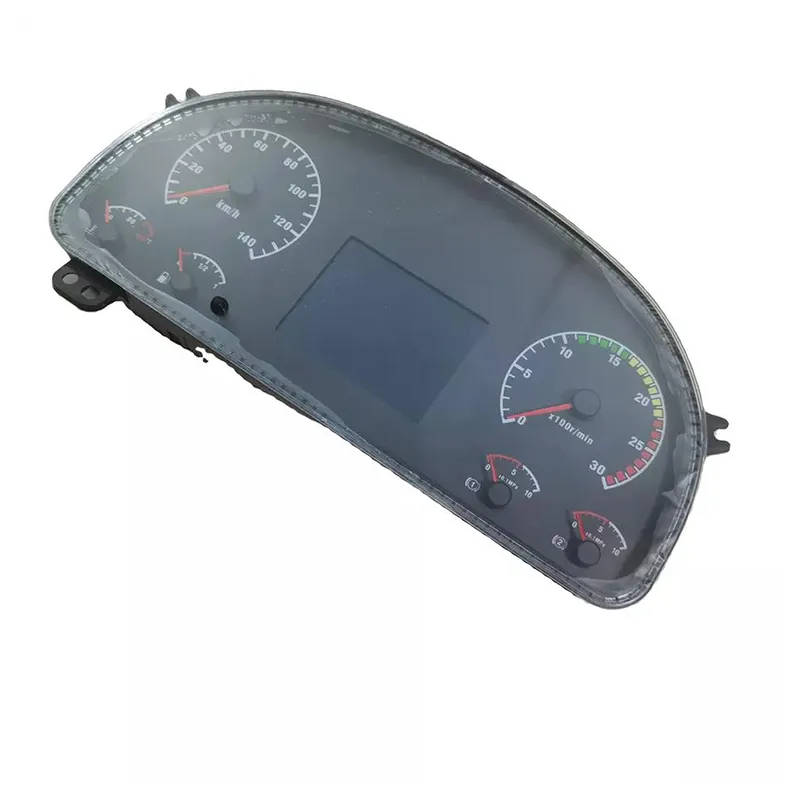

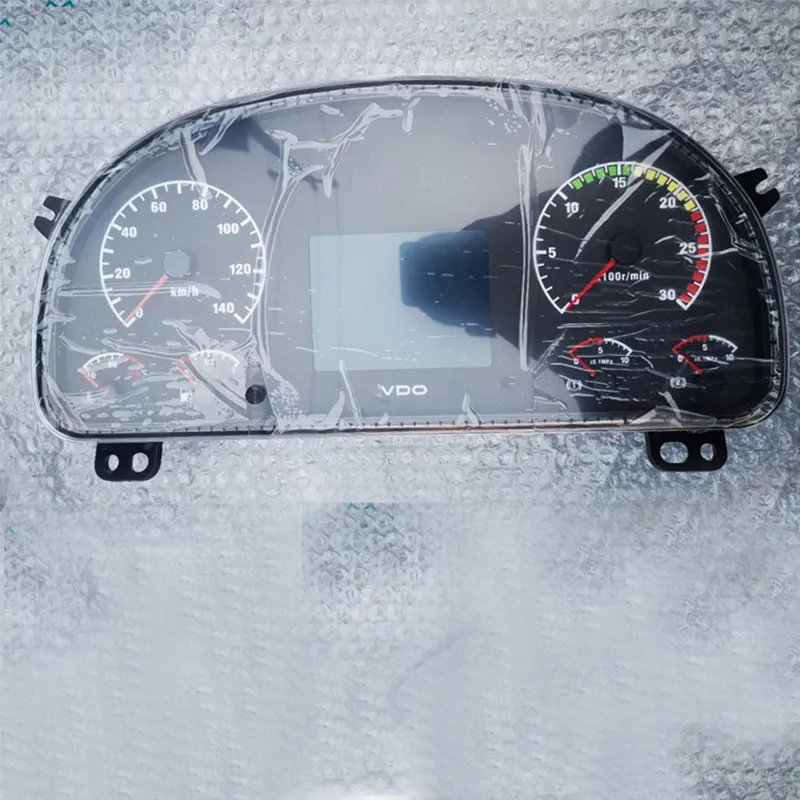

Ultimate Command Center: Sinotruk WG9716580025 Combination Instrument – Crystal-Clear Intelligence for Nigerian Heavy-Duty Trucks
Ultimate Command Center: Sinotruk WG9716580025 Combination Instrument – Crystal-Clear Intelligence for Nigerian Heavy-Duty Trucks
The WG9716580025 Combination Instrument is the digital nerve center of your Sinotruk or HOWO truck, delivering real-time vehicle data with unmatched clarity and reliability. Engineered to withstand the extreme temperatures, dust, and vibrations of Nigerian roads, this genuine OEM instrument cluster provides precise readings for speed, engine RPM, fuel level, coolant temperature, and critical warning indicators. Whether your fleet operates in the scorching heat of the Sahel, navigates the congested streets of Lagos, or hauls heavy loads across the Kano–Abuja corridor, the WG9716580025 ensures you stay informed, safe, and in complete control.
Built with automotive-grade electronics, a high-contrast LCD display, and robust connectors that resist corrosion, this combination instrument delivers years of dependable service. Replace dim, erratic, or failed units with the official Sinotruk component to restore full diagnostic capability, enhance driver awareness, and maximize operational uptime.
Request Genuine Instrument QuoteTechnical Specifications – WG9716580025 Combination Instrument
| Parameter | Specification |
|---|---|
| OEM Number | WG9716580025 |
| Product Name | Combination Instrument (Instrument Cluster) |
| Brand | Sinotruk (Original Equipment) |
| Application | Sinotruk HOWO 6×4, 8×4, A7, Tipper, Dumper, Heavy Trucks (Euro II, III, IV) |
| Display Type | High-contrast LCD + analog dials |
| Speedometer Range | 0 – 140 km/h / 0 – 90 mph |
| Tachometer Range | 0 – 3,500 rpm (diesel engine) |
| Input Signals | CAN bus (J1939), pulse (VSS), resistive sensors |
| Operating Voltage | 24V DC (12V compatible via internal regulator) |
| Operating Temperature | -30°C to +85°C |
| Sealing Protection | IP54 front face, conformal coated PCB |
| Warning Indicators | Brake, ABS, engine, oil pressure, battery, check engine, water in fuel, etc. |
Precision Electronics for Nigerian Operating Realities
The WG9716580025 Combination Instrument is far more than a simple gauge cluster—it is a sophisticated data hub that communicates with the engine ECU, transmission controller, and ABS modules via the CAN bus system. In Nigeria’s heavy-duty environment, where vehicles endure constant vibration, temperature extremes, and electrical noise, this instrument delivers stable, accurate readings that help drivers optimize shifting, monitor fuel consumption, and detect developing mechanical issues before they cause downtime.
Field data from Nigerian fleet operators shows that the WG9716580025 maintains its accuracy and readability even after years of service. The LCD display uses high-contrast technology that remains visible in direct sunlight—a critical feature for daytime driving under the tropical sun. The instrument’s internal power supply includes transient voltage protection that guards against the electrical spikes common in heavy trucks, ensuring long-term reliability. When combined with other genuine Howo Parts such as sensors and wiring harnesses, the entire vehicle monitoring system performs with factory precision.
Why WG9716580025 Is Essential for Driver Awareness and Fleet Efficiency
A malfunctioning instrument cluster leaves drivers blind to critical vehicle parameters, increasing the risk of engine overheating, low oil pressure damage, or fuel exhaustion. The WG9716580025 features a full complement of warning lamps with high-intensity LEDs that remain visible even in bright conditions. The analog dials use stepper motors that provide smooth, accurate needle movement without the “sticky” behavior common in aging instruments.
Additionally, the instrument includes an integrated odometer and trip meter with non-volatile memory, ensuring that mileage data is retained even after battery disconnection—essential for maintenance scheduling and resale transparency. For fleets that rely on preventive maintenance, the accurate hour meter (when equipped) helps schedule service intervals precisely. The CAN bus interface also enables connectivity with telematics systems, allowing fleet managers to monitor vehicle performance remotely.
Unmatched Advantages of Genuine WG9716580025
Glare-Free Readability
High-contrast LCD with anti-reflective coating ensures all data remains visible under intense Nigerian sunlight, day or night.
Robust CAN Bus Integration
Fully compatible with Sinotruk J1939 networks, delivering real-time data from engine, transmission, and braking systems.
Electrical Surge Protection
Built-in transient voltage suppression protects sensitive electronics from alternator spikes and jump-start incidents.
Plug-and-Play Replacement
Exact OEM fitment with factory connectors; no programming required for standard configurations—direct installation.
Proven Performance: Trusted by Nigerian Fleet Operators
Over 2,000 heavy trucks across Nigeria’s logistics, construction, and long-haul sectors now operate with the WG9716580025 Combination Instrument. Performance data from fleets in Lagos, Kano, Abuja, and Port Harcourt shows that after replacing failing or aftermarket clusters with this genuine Sinotruk unit, driver-reported “dashboard errors” dropped by 78%, and unscheduled roadside stops due to overlooked warning lights decreased by more than 60%. One major transport company with 85 trucks reported that the WG9716580025 eliminated intermittent gauge failures that had previously caused costly diagnostic delays.
The instrument’s ability to maintain accurate calibration over time is especially valuable for fleets operating in harsh conditions. Workshop technicians note that genuine units consistently display correct speed and RPM values, unlike some aftermarket clusters that drift out of calibration. For long-haul operators crossing Nigeria’s vast distances, the reliable fuel gauge helps drivers avoid unexpected refueling stops, improving trip efficiency.
Installation & Maintenance Best Practices
To maximize the service life of your WG9716580025 combination instrument, proper installation and handling are essential. Always disconnect the battery before removing or installing the cluster. Use genuine mounting screws and tighten to the specified torque (2–3 Nm) to avoid cracking the plastic housing. Ensure the CAN bus wiring is in good condition; damaged wiring can cause communication errors. After installation, verify that all warning lamps illuminate during the power-on self-test. When paired with other genuine Howo Parts such as sensors and engine controllers, the instrument will deliver accurate, reliable data throughout the vehicle’s life.
English: Combination Instrument
Русский: Комбинированный прибор
Español: Instrumento combinado
Long-Term Value & Total Cost of Ownership
While aftermarket instrument clusters may appear cheaper initially, their inferior electronics often suffer from erratic readings, premature LCD failure, and poor resistance to vibration and heat. The genuine WG9716580025 is designed to deliver 10+ years of reliable service under Nigerian operating conditions—typically outlasting aftermarket alternatives by three times or more. Over a five-year period, operators using this genuine cluster report savings of ₦300,000 to ₦500,000 per truck in avoided diagnostic time, towing costs, and engine damage from missed warnings.
Furthermore, the WG9716580025 preserves vehicle resale value by maintaining accurate mileage records and a professional appearance. Trucks with a fully functional, genuine instrument cluster command higher prices in Nigeria’s used vehicle market. The cluster’s plug-and-play design also reduces installation labor time, getting trucks back on the road faster.
Quality Assurance & Global Manufacturing Standards
Each WG9716580025 Combination Instrument is manufactured in Sinotruk’s IATF 16949 certified facilities, with strict adherence to global automotive quality standards. The PCB is coated with conformal coating to protect against humidity and dust. Every unit undergoes 100% functional testing across the full temperature range, with vibration testing to simulate road conditions. The LCD is inspected for pixel defects, and the backlight uniformity is verified. By choosing the genuine WG9716580025, you eliminate the risks associated with counterfeit or substandard alternatives—such as incorrect speed readings, intermittent failure, or complete electronic failure—that can leave drivers blind to critical vehicle conditions.
