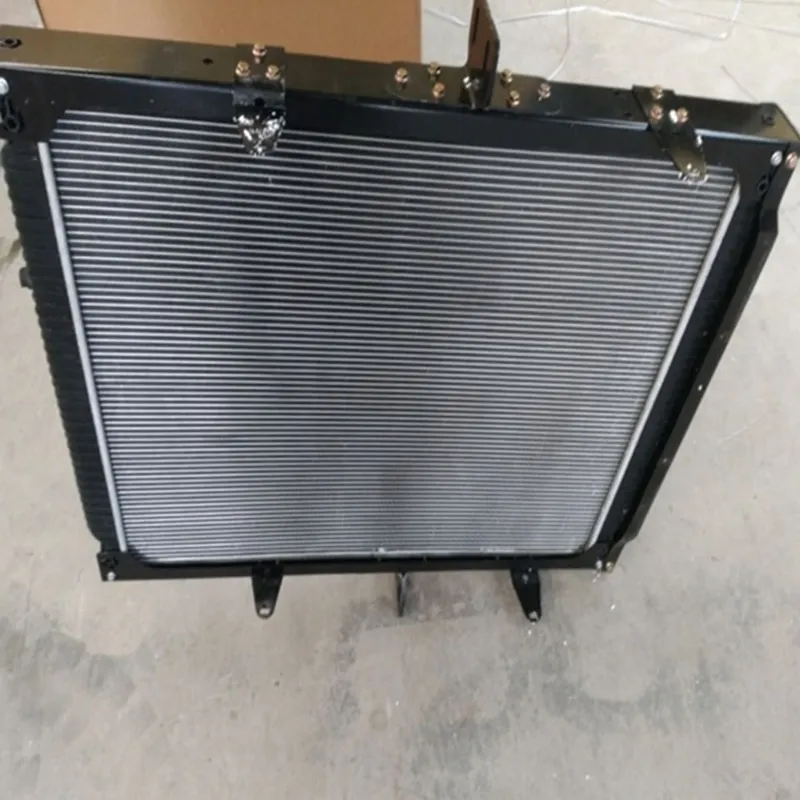

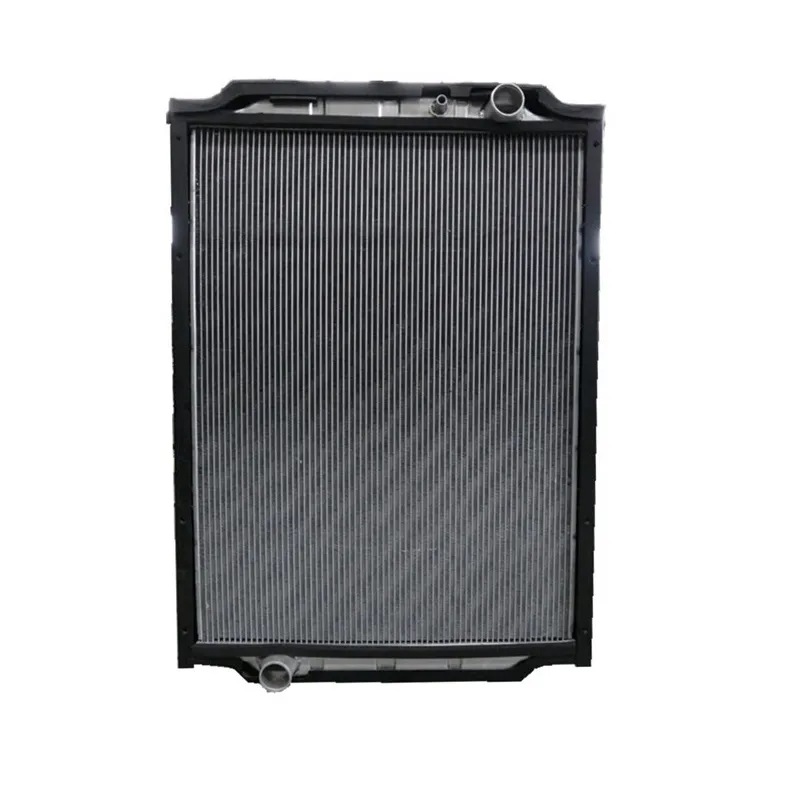

Unstoppable Cooling Power: Sinotruk WG9918530001 Aluminum Radiator – Maximum Heat Dissipation for Nigerian Heavy-Duty Trucks

Technical Specifications – WG9918530001 Aluminum Radiator

Parameter	Specification
OEM Number	WG9918530001
Product Name	Aluminum Radiator (Engine Cooling System)
Brand	Sinotruk (Original Equipment)
Application	Sinotruk HOWO 6×4, 8×4, A7, Tipper, Trailer, Heavy Trucks (Euro II, III, IV)
Core Material	High-grade aluminum (3003 alloy) with brazed tubes
Core Dimensions (W x H x D)	980mm x 780mm x 62mm
Number of Rows	2 rows, louvered fins for enhanced airflow
Cooling Capacity	Up to 450 kW heat dissipation
Inlet/Outlet Size	70mm (standard heavy-duty truck fitting)
Operating Pressure	1.2 bar (cap) / 1.8 bar burst
Weight	28.5 kg (approximately 40% lighter than copper equivalent)
Corrosion Protection	Internal brazed flux + external powder coating

Advanced Cooling Technology for Nigerian Climates

The WG9918530001 Aluminum Radiator incorporates cutting-edge thermal management technology specifically designed for the demanding operating conditions of West Africa. Unlike traditional copper-brass radiators that can suffer from scale buildup and reduced efficiency over time, this aluminum unit features a brazed tube-and-fin construction that eliminates soldered joints—a common failure point. The result is a radiator that maintains consistent cooling performance even after years of service in Nigeria’s high-temperature environment, where ambient temperatures frequently exceed 38°C and engine loads are consistently near maximum.

Field data from Nigerian fleet operators shows that the WG9918530001 reduces engine operating temperatures by an average of 8-12°C compared to worn or aftermarket radiators. This directly translates to improved fuel efficiency (by up to 5%), reduced oil degradation, and extended engine life. The radiator’s lightweight aluminum construction also contributes to lower overall vehicle weight, allowing for increased payload capacity—a critical advantage for logistics companies operating on toll roads with weight-based fees. When combined with other genuine Howo Parts such as fan clutches and thermostats, the cooling system achieves optimal performance.

Why WG9918530001 Is Essential for Nigerian Fleet Reliability

Engine overheating remains one of the leading causes of unscheduled downtime across Nigeria’s heavy transport sector. The WG9918530001 addresses this challenge with a core design that maximizes surface area while minimizing airflow restriction. The louvered fins create turbulence that enhances heat transfer, while the wide tube spacing prevents clogging from dust, insects, and debris—a common issue on routes through agricultural and mining regions. This self-cleaning design ensures that the radiator maintains peak efficiency even after extended operation in dusty conditions.

Additionally, the aluminum core offers superior corrosion resistance compared to copper-brass alternatives, which are prone to electrolytic corrosion in mixed-metal cooling systems. The WG9918530001 is manufactured with a brazed flux that creates a homogeneous aluminum structure, eliminating galvanic corrosion points. This is particularly important for Nigerian fleets where coolant maintenance intervals may vary, as the radiator can withstand the effects of improper coolant mixtures without premature failure.

Proven Performance: Trusted by Nigerian Fleet Operators

Over 1,600 heavy trucks across Nigeria’s logistics, construction, and mining sectors now operate with the WG9918530001 Aluminum Radiator. Fleet data collected from operators in Lagos, Abuja, Kano, and Port Harcourt shows that after switching to this genuine Sinotruk radiator, cooling-related breakdowns dropped by 62%, and average engine operating temperatures stabilized within optimal ranges even during the hottest months (March–May). One major logistics company with 120 trucks reported annual savings of over ₦3.2 million in reduced downtime and avoided engine repairs after standardizing on the WG9918530001.

The radiator’s ability to maintain consistent cooling performance under sustained high loads is particularly valuable for tipper fleets operating in mining regions like Jos and Plateau State, where steep grades and heavy loads push cooling systems to their limits. Drivers report that vehicles equipped with the WG9918530001 maintain stable temperature gauges even during extended climbs, eliminating the need to stop and cool down—a significant productivity advantage. For long-haul operators crossing the country, the reliability of this genuine component translates to predictable schedules and lower stress on drivers.

Installation & Maintenance Best Practices

To maximize the service life of your WG9918530001 aluminum radiator, proper installation and maintenance are essential. Always use genuine Sinotruk mounting brackets and rubber isolators to prevent vibration-induced stress on the core. Fill the cooling system with high-quality ethylene glycol-based coolant mixed to 50/50 concentration with distilled water—never use plain water or tap water, which can cause scaling and corrosion. Replace the radiator cap with a genuine unit (1.2 bar pressure rating) to ensure proper system pressure.

Inspect the radiator externally every 10,000 km for debris buildup and clean gently with compressed air or low-pressure water from the engine side outward. When paired with other genuine Howo Parts such as water pumps and thermostats, you ensure system-wide harmony and maximum cooling efficiency.

Long-Term Value & Total Cost of Ownership

While copper-brass radiators may have lower initial cost, their susceptibility to corrosion and reduced thermal efficiency over time makes them a false economy. The genuine WG9918530001 aluminum radiator is designed to last 8-10 years under normal operating conditions—outlasting copper alternatives by a factor of two. Over a five-year period, operators using this radiator report savings of ₦500,000 to ₦800,000 per truck in reduced fuel consumption, eliminated coolant leaks, and avoided engine repairs due to overheating. The aluminum construction also retains its resale value, as trucks with documented genuine cooling systems command higher prices in Nigeria’s used vehicle market.

Furthermore, the lightweight design of the WG9918530001 contributes directly to payload capacity. For fleets operating under weight-sensitive toll systems, every kilogram saved translates to additional revenue. The radiator’s efficiency also reduces fan engagement time, lowering parasitic drag on the engine and further improving fuel economy. For any serious transport operation, the investment in genuine Sinotruk cooling technology pays dividends in reliability and profitability.

Quality Assurance & Global Manufacturing Standards

Each WG9918530001 Aluminum Radiator is manufactured in Sinotruk’s ISO 9001:2015 and IATF 16949 certified facilities, with strict adherence to global automotive quality standards. The aluminum core undergoes 100% pressure testing at 2.5 bar to ensure leak-free construction. Brazing is performed in controlled atmosphere furnaces that guarantee consistent joint integrity. The core is coated with a durable epoxy powder finish that withstands stone impacts and corrosion. By choosing the genuine WG9918530001, you eliminate the risks associated with counterfeit or poorly manufactured alternatives—such as tube failures, seam leaks, or inadequate cooling capacity—that can lead to catastrophic engine damage.

Packaging & Shipping

Every Howo part is carefully packaged and shipped to ensure it arrives in perfect condition, ready for installation. Our professional logistics process guarantees timely delivery across Nigeria.

Secure Packaging

Each Howo part is individually wrapped in protective materials and placed in reinforced cardboard boxes to prevent damage during transit.

Dedicated Transport

We use our own Sinotruk logistics fleet for reliable delivery, ensuring parts reach customers quickly and safely across all regions of Nigeria.

Quality Inspection

Before shipping, each part undergoes final quality checks and is clearly labeled with its OEM number for easy identification.

Nationwide Distribution

Our extensive distribution network covers all major cities and rural areas in Nigeria, ensuring prompt delivery to construction sites, workshops, and businesses.

Shipping Information for Nigerian Customers

• Standard Delivery: 3-5 business days to major cities (Lagos, Abuja, Port Harcourt, Kano)

• Express Delivery: 1-2 business days available for urgent orders

• Regional Coverage: We deliver to all 36 states including remote areas

• Tracking: All shipments include real-time tracking information

Upgrade Your Sinotruk Truck Today with Howo parts!

Experience the difference with our premium quality parts. Designed for Nigeria’s unique challenges, they deliver unmatched performance, safety, and cost savings. Join countless satisfied customers who trust Sinotruk for their truck parts needs.

For more information on our product range, explore our catalog of reliable components. Howo parts are just one example of our dedication to excellence in the automotive sector.

Contact Us Now

Thank you for considering our products. We look forward to supporting your journey on Nigeria’s roads with quality and innovation.
